Linear Fit

import numpy as np
from smpl import plot
from smpl import io
from smpl import functions as f
import uncertainties.unumpy as unp

New version 0.0.28 > 0.0.27.1 available via:
 $ pip install smpl --upgrade [--user]'

data = np.loadtxt(io.find_file('test_linear_data.txt',3))
xdata = data[:,0]
xerr = data[:,2]
ydata = data[:,1]
yerr = data[:,3]
x = unp.uarray(xdata,xerr)
y = unp.uarray(ydata,yerr)

data

array([[0. , 1. , 0.1, 0.2],
       [1. , 2. , 0.2, 0.1],
       [2. , 3. , 0.3, 0.1],
       [3. , 5. , 0.1, 0.4],
       [4. , 5. , 0.1, 0.1],
       [5. , 6. , 0.1, 0.2]])

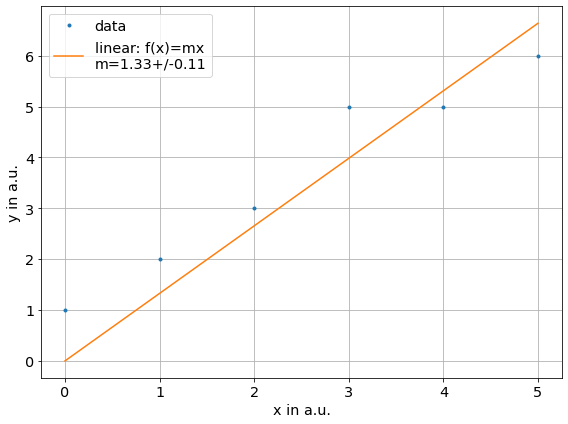

ff = plot.fit(xdata, ydata, fmt='.', label='data', xaxis="x in a.u.",yaxis="y in a.u.",function=f.linear, params=[1])

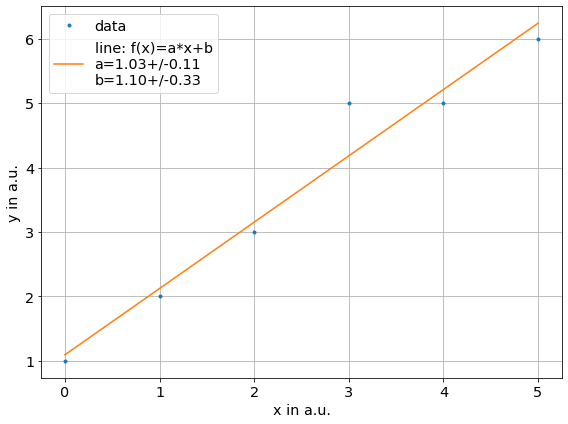

ff = plot.fit(xdata, ydata, fmt='.', label='data', xaxis="x in a.u.",yaxis="y in a.u.",function=f.line, params=[1,2])

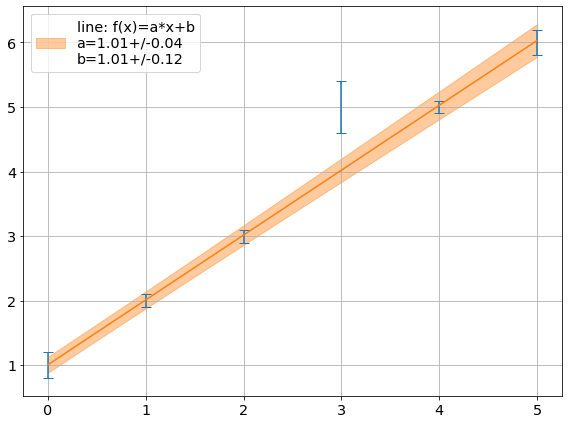

ff = plot.fit(xdata, y, fmt='.', function=f.line, params=[1,1], sigmas=1,lpos=2)

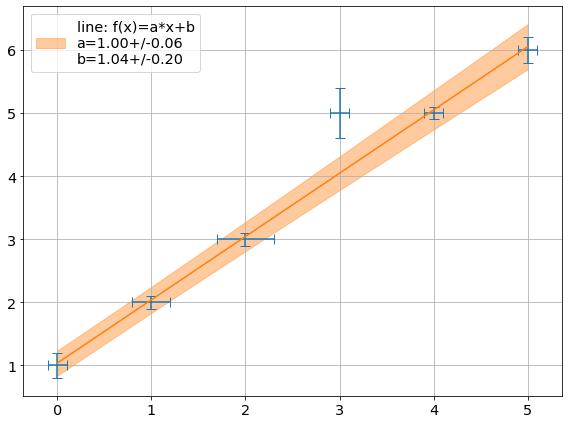

ff = plot.fit(x, y, fmt='.', function=f.line, params=[1,1], sigmas=1,lpos=2)
