smpl.plot.PolarAxes¶

class smpl.plot.PolarAxes(*args, theta_offset=0, theta_direction=1, rlabel_position=22.5, **kwargs)[source]¶

Bases: Axes

A polar graph projection, where the input dimensions are theta, r.

Theta starts pointing east and goes anti-clockwise.

__init__(*args, theta_offset=0, theta_direction=1, rlabel_position=22.5, **kwargs)[source]¶

Build an Axes in a figure.

Parameters¶

fig~matplotlib.figure.Figure

The Axes is built in the .Figure fig.

recttuple (left, bottom, width, height).

The Axes is built in the rectangle rect. rect is in .Figure coordinates.

sharex, sharey~.axes.Axes, optional

The x or y ~.matplotlib.axis is shared with the x or y axis in the input ~.axes.Axes.

frameonbool, default: True

Whether the Axes frame is visible.

box_aspectfloat, optional

Set a fixed aspect for the Axes box, i.e. the ratio of height to width. See ~.axes.Axes.set_box_aspect for details.

**kwargs

Other optional keyword arguments:

Properties: adjustable: {‘box’, ‘datalim’} agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None anchor: (float, float) or {‘C’, ‘SW’, ‘S’, ‘SE’, ‘E’, ‘NE’, …} animated: bool aspect: {‘auto’, ‘equal’} or float autoscale_on: bool autoscalex_on: unknown autoscaley_on: unknown axes_locator: Callable[[Axes, Renderer], Bbox] axisbelow: bool or ‘line’ box_aspect: float or None clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None facecolor or fc: color figure: .Figure frame_on: bool gid: str in_layout: bool label: object mouseover: bool navigate: bool navigate_mode: unknown path_effects: .AbstractPathEffect picker: None or bool or float or callable position: [left, bottom, width, height] or ~matplotlib.transforms.Bbox prop_cycle: unknown rasterization_zorder: float or None rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None title: str transform: .Transform url: str visible: bool xbound: unknown xlabel: str xlim: (bottom: float, top: float) xmargin: float greater than -0.5 xscale: unknown xticklabels: unknown xticks: unknown ybound: unknown ylabel: str ylim: (bottom: float, top: float) ymargin: float greater than -0.5 yscale: unknown yticklabels: unknown yticks: unknown zorder: float

Returns¶

~.axes.Axes: The new ~.axes.Axes object.

Methods

`__init__`(*args[, theta_offset, ...])	Build an Axes in a figure.
`acorr`(x, *[, data])	Plot the autocorrelation of x.
`add_artist`(a)	Add an .Artist to the Axes; return the artist.
`add_callback`(func)	Add a callback function that will be called whenever one of the .Artist's properties changes.
`add_child_axes`(ax)	Add an .AxesBase to the Axes' children; return the child Axes.
`add_collection`(collection[, autolim])	Add a .Collection to the Axes; return the collection.
`add_container`(container)	Add a .Container to the Axes' containers; return the container.
`add_image`(image)	Add an .AxesImage to the Axes; return the image.
`add_line`(line)	Add a .Line2D to the Axes; return the line.
`add_patch`(p)	Add a .Patch to the Axes; return the patch.
`add_table`(tab)	Add a .Table to the Axes; return the table.
`angle_spectrum`(x[, Fs, Fc, window, pad_to, ...])	Plot the angle spectrum.
`annotate`(text, xy[, xytext, xycoords, ...])	Annotate the point xy with text text.
`apply_aspect`([position])	Adjust the Axes for a specified data aspect ratio.
`arrow`(x, y, dx, dy, **kwargs)	Add an arrow to the Axes.
`autoscale`([enable, axis, tight])	Autoscale the axis view to the data (toggle).
`autoscale_view`([tight, scalex, scaley])	Autoscale the view limits using the data limits.
`axhline`([y, xmin, xmax])	Add a horizontal line across the Axes.
`axhspan`(ymin, ymax[, xmin, xmax])	Add a horizontal span (rectangle) across the Axes.
`axis`(*args[, emit])	Convenience method to get or set some axis properties.
`axline`(xy1[, xy2, slope])	Add an infinitely long straight line.
`axvline`([x, ymin, ymax])	Add a vertical line across the Axes.
`axvspan`(xmin, xmax[, ymin, ymax])	Add a vertical span (rectangle) across the Axes.
`bar`(x, height[, width, bottom, align, data])	Make a bar plot.
`bar_label`(container[, labels, fmt, ...])	Label a bar plot.
`barbs`(*args[, data])	Plot a 2D field of barbs.
`barh`(y, width[, height, left, align, data])	Make a horizontal bar plot.
`boxplot`(x[, notch, sym, vert, whis, ...])	Draw a box and whisker plot.
`broken_barh`(xranges, yrange, *[, data])	Plot a horizontal sequence of rectangles.
`bxp`(bxpstats[, positions, widths, vert, ...])	Drawing function for box and whisker plots.
`can_pan`()	Return whether this axes supports the pan/zoom button functionality.
`can_zoom`()	Return whether this axes supports the zoom box button functionality.
`cla`()	Clear the Axes.
`clabel`(CS[, levels])	Label a contour plot.
`clear`()	Clear the Axes.
`cohere`(x, y[, NFFT, Fs, Fc, detrend, ...])	Plot the coherence between x and y.
`contains`(mouseevent)	Test whether the artist contains the mouse event.
`contains_point`(point)	Return whether point (pair of pixel coordinates) is inside the Axes patch.
`contour`(*args[, data])	Plot contour lines.
`contourf`(*args[, data])	Plot filled contours.
`convert_xunits`(x)	Convert x using the unit type of the xaxis.
`convert_yunits`(y)	Convert y using the unit type of the yaxis.
`csd`(x, y[, NFFT, Fs, Fc, detrend, window, ...])	Plot the cross-spectral density.
`drag_pan`(button, key, x, y)	Called when the mouse moves during a pan operation.
`draw`(renderer)	Draw the Artist (and its children) using the given renderer.
`draw_artist`(a)	Efficiently redraw a single artist.
`end_pan`()	Called when a pan operation completes (when the mouse button is up.)
`errorbar`(x, y[, yerr, xerr, fmt, ecolor, ...])	Plot y versus x as lines and/or markers with attached errorbars.
`eventplot`(positions[, orientation, ...])	Plot identical parallel lines at the given positions.
`fill`(*args[, data])	Plot filled polygons.
`fill_between`(x, y1[, y2, where, ...])	Fill the area between two horizontal curves.
`fill_betweenx`(y, x1[, x2, where, step, ...])	Fill the area between two vertical curves.
`findobj`([match, include_self])	Find artist objects.
`format_coord`(theta, r)	Return a format string formatting the x, y coordinates.
`format_cursor_data`(data)	Return a string representation of data.
`format_xdata`(x)	Return x formatted as an x-value.
`format_ydata`(y)	Return y formatted as an y-value.
`get_adjustable`()	Return whether the Axes will adjust its physical dimension ('box') or its data limits ('datalim') to achieve the desired aspect ratio.
`get_agg_filter`()	Return filter function to be used for agg filter.
`get_alpha`()	Return the alpha value used for blending - not supported on all backends.
`get_anchor`()	Get the anchor location.
`get_animated`()	Return whether the artist is animated.
`get_aspect`()	Return the aspect ratio of the axes scaling.
`get_autoscale_on`()	Return True if each axis is autoscaled, False otherwise.
`get_autoscalex_on`()	Return whether the xaxis is autoscaled.
`get_autoscaley_on`()	Return whether the yaxis is autoscaled.
`get_axes_locator`()	Return the axes_locator.
`get_axisbelow`()	Get whether axis ticks and gridlines are above or below most artists.
`get_box_aspect`()	Return the Axes box aspect, i.e. the ratio of height to width.
`get_children`()	Return a list of the child .Artists of this .Artist.
`get_clip_box`()	Return the clipbox.
`get_clip_on`()	Return whether the artist uses clipping.
`get_clip_path`()	Return the clip path.
`get_cursor_data`(event)	Return the cursor data for a given event.
`get_data_ratio`()	Return the aspect ratio of the data itself.
`get_default_bbox_extra_artists`()	Return a default list of artists that are used for the bounding box calculation.
`get_facecolor`()	Get the facecolor of the Axes.
`get_fc`()	Alias for get_facecolor.
`get_figure`()	Return the .Figure instance the artist belongs to.
`get_frame_on`()	Get whether the Axes rectangle patch is drawn.
`get_gid`()	Return the group id.
`get_images`()	Return a list of .AxesImages contained by the Axes.
`get_in_layout`()	Return boolean flag, `True` if artist is included in layout calculations.
`get_label`()	Return the label used for this artist in the legend.
`get_legend`()	Return the .Legend instance, or None if no legend is defined.
`get_legend_handles_labels`([legend_handler_map])	Return handles and labels for legend
`get_lines`()	Return a list of lines contained by the Axes.
`get_mouseover`()	Return whether this artist is queried for custom context information when the mouse cursor moves over it.
`get_navigate`()	Get whether the Axes responds to navigation commands.
`get_navigate_mode`()	Get the navigation toolbar button status: 'PAN', 'ZOOM', or None.
`get_path_effects`()
`get_picker`()	Return the picking behavior of the artist.
`get_position`([original])	Return the position of the Axes within the figure as a .Bbox.
`get_rasterization_zorder`()	Return the zorder value below which artists will be rasterized.
`get_rasterized`()	Return whether the artist is to be rasterized.
`get_renderer_cache`()	[Deprecated]
`get_rlabel_position`()	Returns float The theta position of the radius labels in degrees.
`get_rmax`()	Returns float Outer radial limit.
`get_rmin`()	Returns float The inner radial limit.
`get_rorigin`()	Returns float
`get_rsign`()
`get_shared_x_axes`()	Return an immutable view on the shared x-axes Grouper.
`get_shared_y_axes`()	Return an immutable view on the shared y-axes Grouper.
`get_sketch_params`()	Return the sketch parameters for the artist.
`get_snap`()	Return the snap setting.
`get_theta_direction`()	Get the direction in which theta increases.
`get_theta_offset`()	Get the offset for the location of 0 in radians.
`get_thetamax`()	Return the maximum theta limit in degrees.
`get_thetamin`()	Get the minimum theta limit in degrees.
`get_tightbbox`([renderer, call_axes_locator, ...])	Return the tight bounding box of the Axes, including axis and their decorators (xlabel, title, etc).
`get_title`([loc])	Get an Axes title.
`get_transform`()	Return the .Transform instance used by this artist.
`get_transformed_clip_path_and_affine`()	Return the clip path with the non-affine part of its transformation applied, and the remaining affine part of its transformation.
`get_url`()	Return the url.
`get_visible`()	Return the visibility.
`get_window_extent`([renderer])	Return the Axes bounding box in display space; args and kwargs are empty.
`get_xaxis`()	[Discouraged] Return the XAxis instance.
`get_xaxis_text1_transform`(pad)	Returns transform Transform The transform used for drawing x-axis labels, which will add pad_points of padding (in points) between the axis and the label. The x-direction is in data coordinates and the y-direction is in axis coordinates valign {'center', 'top', 'bottom', 'baseline', 'center_baseline'} The text vertical alignment. halign {'center', 'left', 'right'} The text horizontal alignment.
`get_xaxis_text2_transform`(pad)	Returns transform Transform The transform used for drawing secondary x-axis labels, which will add pad_points of padding (in points) between the axis and the label. The x-direction is in data coordinates and the y-direction is in axis coordinates valign {'center', 'top', 'bottom', 'baseline', 'center_baseline'} The text vertical alignment. halign {'center', 'left', 'right'} The text horizontal alignment.
`get_xaxis_transform`([which])	Get the transformation used for drawing x-axis labels, ticks and gridlines.
`get_xbound`()	Return the lower and upper x-axis bounds, in increasing order.
`get_xgridlines`()	Return the xaxis' grid lines as a list of .Line2Ds.
`get_xlabel`()	Get the xlabel text string.
`get_xlim`()	Return the x-axis view limits.
`get_xmajorticklabels`()	Return the xaxis' major tick labels, as a list of ~.text.Text.
`get_xminorticklabels`()	Return the xaxis' minor tick labels, as a list of ~.text.Text.
`get_xscale`()	Return the xaxis' scale (as a str).
`get_xticklabels`([minor, which])	Get the xaxis' tick labels.
`get_xticklines`([minor])	Return the xaxis' tick lines as a list of .Line2Ds.
`get_xticks`(*[, minor])	Return the xaxis' tick locations in data coordinates.
`get_yaxis`()	[Discouraged] Return the YAxis instance.
`get_yaxis_text1_transform`(pad)	Returns transform Transform The transform used for drawing y-axis labels, which will add pad_points of padding (in points) between the axis and the label. The x-direction is in axis coordinates and the y-direction is in data coordinates valign {'center', 'top', 'bottom', 'baseline', 'center_baseline'} The text vertical alignment. halign {'center', 'left', 'right'} The text horizontal alignment.
`get_yaxis_text2_transform`(pad)	Returns transform Transform The transform used for drawing secondart y-axis labels, which will add pad_points of padding (in points) between the axis and the label. The x-direction is in axis coordinates and the y-direction is in data coordinates valign {'center', 'top', 'bottom', 'baseline', 'center_baseline'} The text vertical alignment. halign {'center', 'left', 'right'} The text horizontal alignment.
`get_yaxis_transform`([which])	Get the transformation used for drawing y-axis labels, ticks and gridlines.
`get_ybound`()	Return the lower and upper y-axis bounds, in increasing order.
`get_ygridlines`()	Return the yaxis' grid lines as a list of .Line2Ds.
`get_ylabel`()	Get the ylabel text string.
`get_ylim`()	Return the y-axis view limits.
`get_ymajorticklabels`()	Return the yaxis' major tick labels, as a list of ~.text.Text.
`get_yminorticklabels`()	Return the yaxis' minor tick labels, as a list of ~.text.Text.
`get_yscale`()	Return the yaxis' scale (as a str).
`get_yticklabels`([minor, which])	Get the yaxis' tick labels.
`get_yticklines`([minor])	Return the yaxis' tick lines as a list of .Line2Ds.
`get_yticks`(*[, minor])	Return the yaxis' tick locations in data coordinates.
`get_zorder`()	Return the artist's zorder.
`grid`([visible, which, axis])	Configure the grid lines.
`has_data`()	Return whether any artists have been added to the Axes.
`have_units`()	Return whether units are set on any axis.

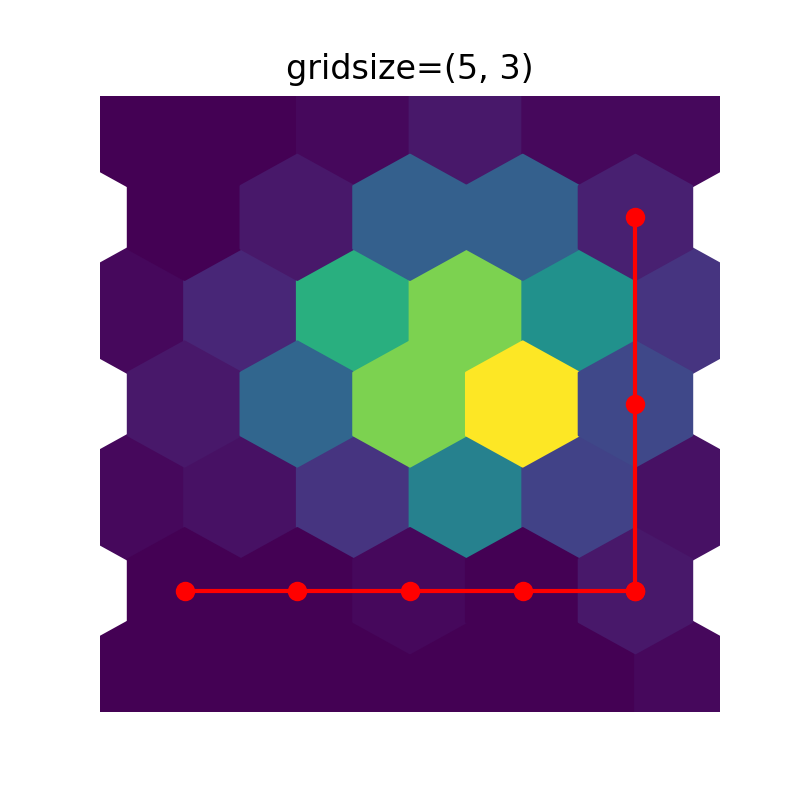

`hexbin`(x, y[, C, gridsize, bins, xscale, ...])	Make a 2D hexagonal binning plot of points x, y.
`hist`(x[, bins, range, density, weights, ...])	Compute and plot a histogram.
`hist2d`(x, y[, bins, range, density, ...])	Make a 2D histogram plot.
`hlines`(y, xmin, xmax[, colors, linestyles, ...])	Plot horizontal lines at each y from xmin to xmax.
`imshow`(X[, cmap, norm, aspect, ...])	Display data as an image, i.e., on a 2D regular raster.
`in_axes`(mouseevent)	Return whether the given event (in display coords) is in the Axes.
`indicate_inset`(bounds[, inset_ax, ...])	Add an inset indicator to the Axes.
`indicate_inset_zoom`(inset_ax, **kwargs)	Add an inset indicator rectangle to the Axes based on the axis limits for an inset_ax and draw connectors between inset_ax and the rectangle.
`inset_axes`(bounds, *[, transform, zorder])	Add a child inset Axes to this existing Axes.
`invert_xaxis`()	Invert the x-axis.
`invert_yaxis`()	Invert the y-axis.
`is_transform_set`()	Return whether the Artist has an explicitly set transform.
`legend`(args, *kwargs)	Place a legend on the Axes.
`locator_params`([axis, tight])	Control behavior of major tick locators.
`loglog`(args, *kwargs)	Make a plot with log scaling on both the x and y axis.
`magnitude_spectrum`(x[, Fs, Fc, window, ...])	Plot the magnitude spectrum.
`margins`(*margins[, x, y, tight])	Set or retrieve autoscaling margins.
`matshow`(Z, **kwargs)	Plot the values of a 2D matrix or array as color-coded image.
`minorticks_off`()	Remove minor ticks from the Axes.
`minorticks_on`()	Display minor ticks on the Axes.
`pchanged`()	Call all of the registered callbacks.
`pcolor`(*args[, shading, alpha, norm, cmap, ...])	Create a pseudocolor plot with a non-regular rectangular grid.
`pcolorfast`(*args[, alpha, norm, cmap, vmin, ...])	Create a pseudocolor plot with a non-regular rectangular grid.
`pcolormesh`(*args[, alpha, norm, cmap, vmin, ...])	Create a pseudocolor plot with a non-regular rectangular grid.
`phase_spectrum`(x[, Fs, Fc, window, pad_to, ...])	Plot the phase spectrum.
`pick`(mouseevent)	Process a pick event.
`pickable`()	Return whether the artist is pickable.
`pie`(x[, explode, labels, colors, autopct, ...])	Plot a pie chart.
`plot`(*args[, scalex, scaley, data])	Plot y versus x as lines and/or markers.
`plot_date`(x, y[, fmt, tz, xdate, ydate, data])	[Discouraged] Plot coercing the axis to treat floats as dates.
`properties`()	Return a dictionary of all the properties of the artist.
`psd`(x[, NFFT, Fs, Fc, detrend, window, ...])	Plot the power spectral density.
`quiver`(*args[, data])	Plot a 2D field of arrows.
`quiverkey`(Q, X, Y, U, label, **kwargs)	Add a key to a quiver plot.
`redraw_in_frame`()	Efficiently redraw Axes data, but not axis ticks, labels, etc.
`relim`([visible_only])	Recompute the data limits based on current artists.
`remove`()	Remove the artist from the figure if possible.
`remove_callback`(oid)	Remove a callback based on its observer id.
`reset_position`()	Reset the active position to the original position.
`scatter`(x, y[, s, c, marker, cmap, norm, ...])	A scatter plot of y vs.

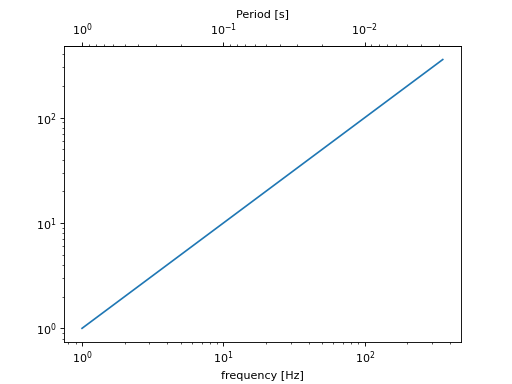

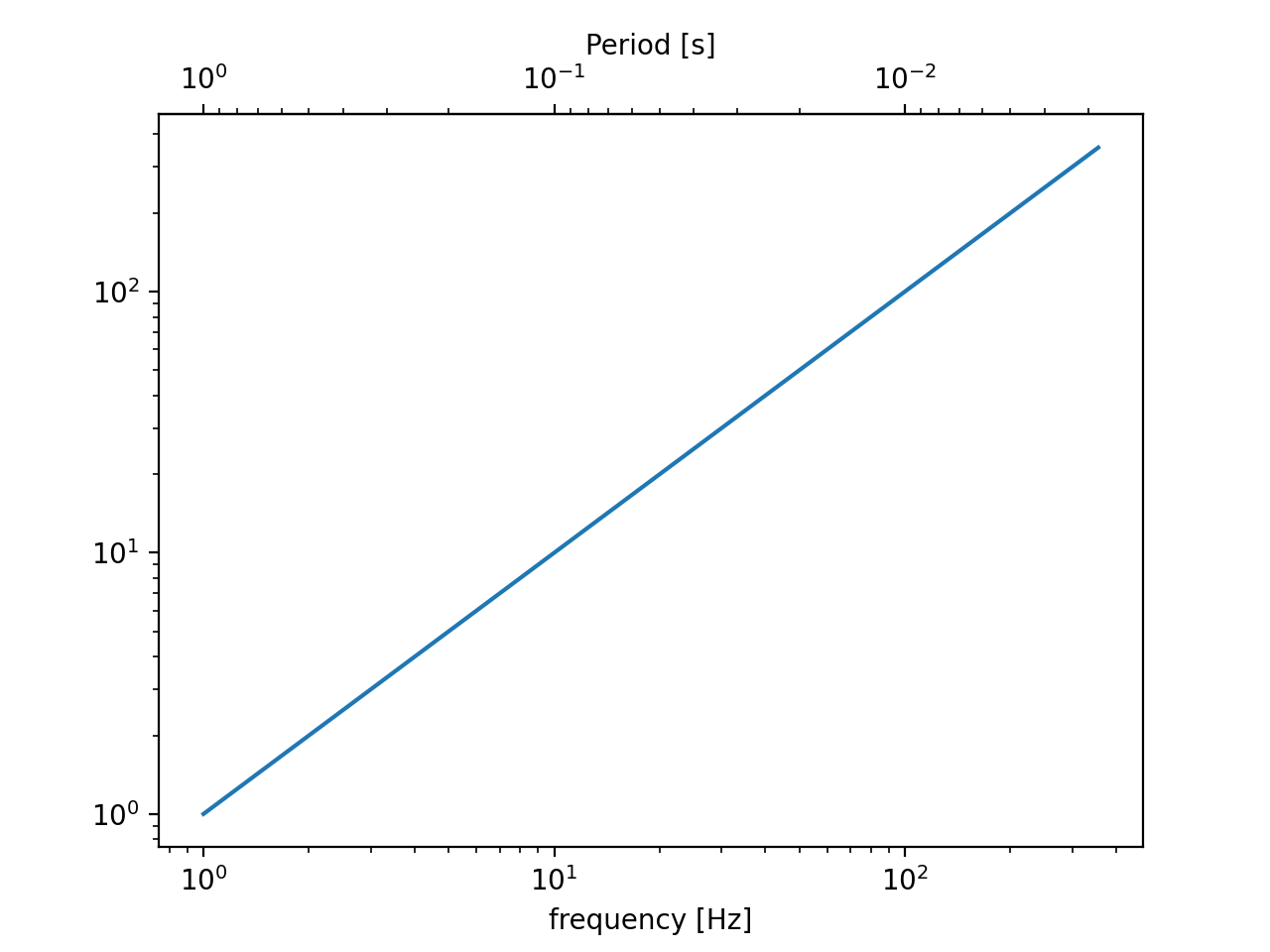

`secondary_xaxis`(location, *[, functions])	Add a second x-axis to this Axes.

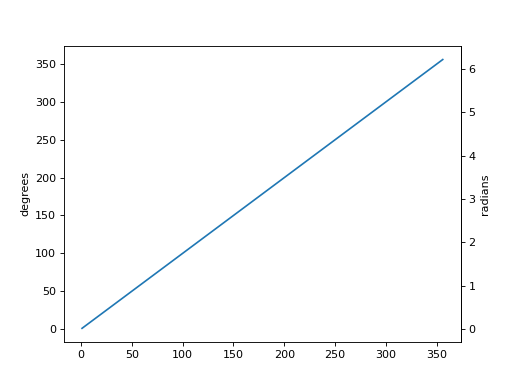

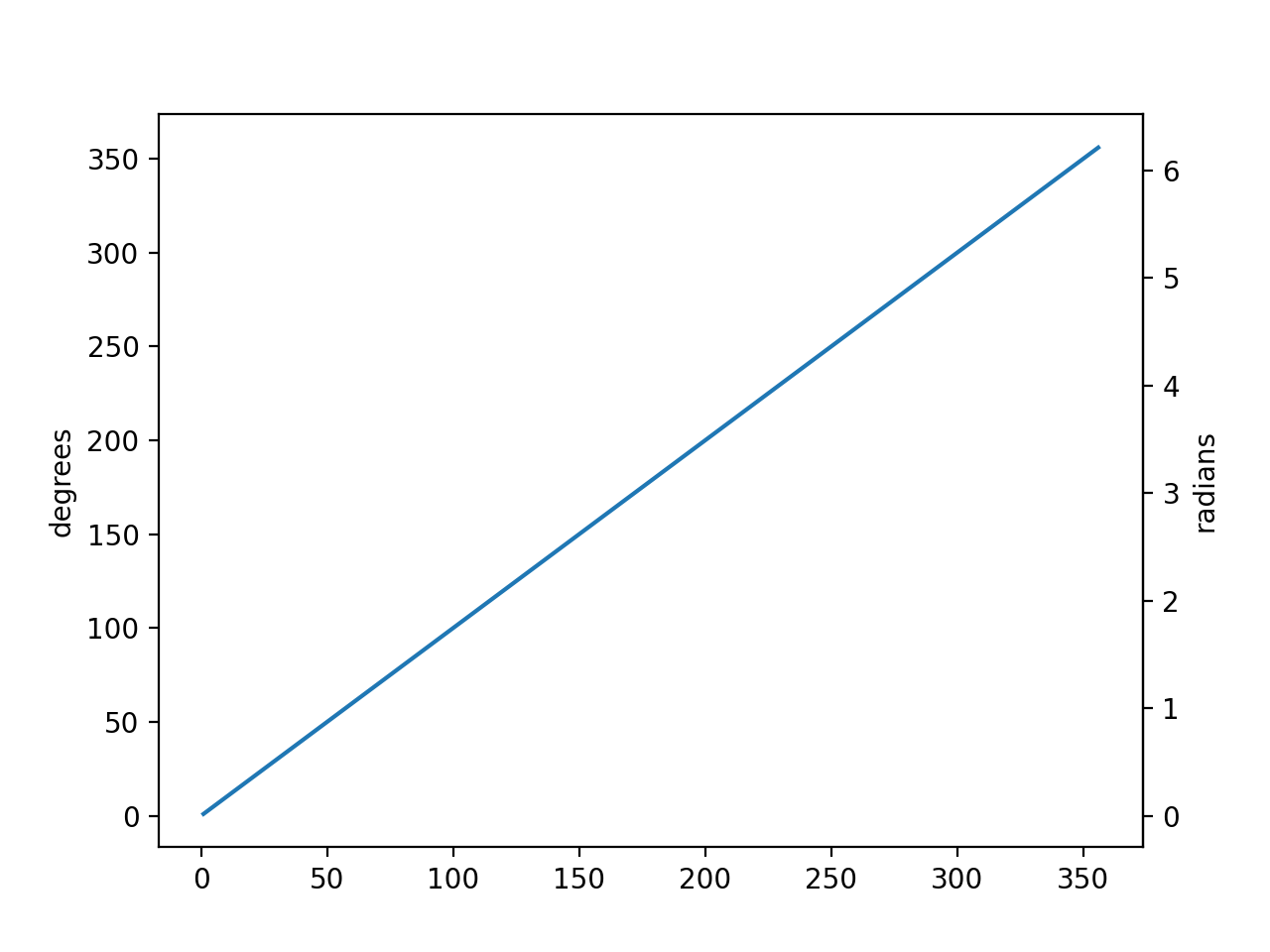

`secondary_yaxis`(location, *[, functions])	Add a second y-axis to this Axes.
`semilogx`(args, *kwargs)	Make a plot with log scaling on the x axis.
`semilogy`(args, *kwargs)	Make a plot with log scaling on the y axis.
`set`(*[, adjustable, agg_filter, alpha, ...])	Set multiple properties at once.
`set_adjustable`(adjustable[, share])	Set how the Axes adjusts to achieve the required aspect ratio.
`set_agg_filter`(filter_func)	Set the agg filter.
`set_alpha`(alpha)	Set the alpha value used for blending - not supported on all backends.
`set_anchor`(anchor[, share])	Define the anchor location.
`set_animated`(b)	Set whether the artist is intended to be used in an animation.
`set_aspect`(aspect[, adjustable, anchor, share])	Set the aspect ratio of the axes scaling, i.e. y/x-scale.
`set_autoscale_on`(b)	Set whether autoscaling is applied to each axis on the next draw or call to .Axes.autoscale_view.
`set_autoscalex_on`(b)	Set whether the xaxis is autoscaled when drawing or by .Axes.autoscale_view.
`set_autoscaley_on`(b)	Set whether the yaxis is autoscaled when drawing or by .Axes.autoscale_view.
`set_axes_locator`(locator)	Set the Axes locator.
`set_axis_off`()	Turn the x- and y-axis off.
`set_axis_on`()	Turn the x- and y-axis on.
`set_axisbelow`(b)	Set whether axis ticks and gridlines are above or below most artists.
`set_box_aspect`([aspect])	Set the Axes box aspect, i.e. the ratio of height to width.
`set_clip_box`(clipbox)	Set the artist's clip .Bbox.
`set_clip_on`(b)	Set whether the artist uses clipping.
`set_clip_path`(path[, transform])	Set the artist's clip path.
`set_facecolor`(color)	Set the facecolor of the Axes.
`set_fc`(color)	Alias for set_facecolor.
`set_figure`(fig)	Set the .Figure instance the artist belongs to.
`set_frame_on`(b)	Set whether the Axes rectangle patch is drawn.
`set_gid`(gid)	Set the (group) id for the artist.
`set_in_layout`(in_layout)	Set if artist is to be included in layout calculations, E.g.
`set_label`(s)	Set a label that will be displayed in the legend.
`set_mouseover`(mouseover)	Set whether this artist is queried for custom context information when the mouse cursor moves over it.
`set_navigate`(b)	Set whether the Axes responds to navigation toolbar commands.
`set_navigate_mode`(b)	Set the navigation toolbar button status.
`set_path_effects`(path_effects)	Set the path effects.
`set_picker`(picker)	Define the picking behavior of the artist.
`set_position`(pos[, which])	Set the Axes position.
`set_prop_cycle`(args, *kwargs)	Set the property cycle of the Axes.
`set_rasterization_zorder`(z)	Set the zorder threshold for rasterization for vector graphics output.
`set_rasterized`(rasterized)	Force rasterized (bitmap) drawing for vector graphics output.
`set_rgrids`(radii[, labels, angle, fmt])	Set the radial gridlines on a polar plot.
`set_rlabel_position`(value)	Update the theta position of the radius labels.
`set_rlim`([bottom, top, emit, auto])	Set the radial axis view limits.
`set_rmax`(rmax)	Set the outer radial limit.
`set_rmin`(rmin)	Set the inner radial limit.
`set_rorigin`(rorigin)	Update the radial origin.
`set_rscale`(args, *kwargs)
`set_rticks`(args, *kwargs)
`set_sketch_params`([scale, length, randomness])	Set the sketch parameters.
`set_snap`(snap)	Set the snapping behavior.
`set_theta_direction`(direction)	Set the direction in which theta increases.
`set_theta_offset`(offset)	Set the offset for the location of 0 in radians.
`set_theta_zero_location`(loc[, offset])	Set the location of theta's zero.
`set_thetagrids`(angles[, labels, fmt])	Set the theta gridlines in a polar plot.
`set_thetalim`(args, *kwargs)	Set the minimum and maximum theta values.
`set_thetamax`(thetamax)	Set the maximum theta limit in degrees.
`set_thetamin`(thetamin)	Set the minimum theta limit in degrees.
`set_title`(label[, fontdict, loc, pad, y])	Set a title for the Axes.
`set_transform`(t)	Set the artist transform.
`set_url`(url)	Set the url for the artist.
`set_visible`(b)	Set the artist's visibility.
`set_xbound`([lower, upper])	Set the lower and upper numerical bounds of the x-axis.
`set_xlabel`(xlabel[, fontdict, labelpad, loc])	Set the label for the x-axis.
`set_xlim`([left, right, emit, auto, xmin, xmax])	Set the x-axis view limits.
`set_xmargin`(m)	Set padding of X data limits prior to autoscaling.
`set_xscale`(value, **kwargs)	Set the xaxis' scale.
`set_xticklabels`(labels, *[, fontdict, minor])	Set the xaxis' labels with list of string labels.
`set_xticks`(ticks[, labels, minor])	Set the xaxis' tick locations and optionally labels.
`set_ybound`([lower, upper])	Set the lower and upper numerical bounds of the y-axis.
`set_ylabel`(ylabel[, fontdict, labelpad, loc])	Set the label for the y-axis.
`set_ylim`([bottom, top, emit, auto, ymin, ymax])	Set the y-axis view limits.
`set_ymargin`(m)	Set padding of Y data limits prior to autoscaling.
`set_yscale`(args, *kwargs)	Set the yaxis' scale.
`set_yticklabels`(labels, *[, fontdict, minor])	Set the yaxis' labels with list of string labels.
`set_yticks`(ticks[, labels, minor])	Set the yaxis' tick locations and optionally labels.
`set_zorder`(level)	Set the zorder for the artist.
`sharex`(other)	Share the x-axis with other.
`sharey`(other)	Share the y-axis with other.
`specgram`(x[, NFFT, Fs, Fc, detrend, window, ...])	Plot a spectrogram.
`spy`(Z[, precision, marker, markersize, ...])	Plot the sparsity pattern of a 2D array.
`stackplot`(x, *args[, labels, colors, ...])	Draw a stacked area plot.
`stairs`(values[, edges, orientation, ...])	A stepwise constant function as a line with bounding edges or a filled plot.
`start_pan`(x, y, button)	Called when a pan operation has started.
`stem`(*args[, linefmt, markerfmt, basefmt, ...])	Create a stem plot.
`step`(x, y, *args[, where, data])	Make a step plot.
`streamplot`(x, y, u, v[, density, linewidth, ...])	Draw streamlines of a vector flow.
`table`([cellText, cellColours, cellLoc, ...])	Add a table to an ~.axes.Axes.
`text`(x, y, s[, fontdict])	Add text to the Axes.
`tick_params`([axis])	Change the appearance of ticks, tick labels, and gridlines.
`ticklabel_format`(*[, axis, style, ...])	Configure the .ScalarFormatter used by default for linear Axes.
`tricontour`(args, *kwargs)	Draw contour lines on an unstructured triangular grid.
`tricontourf`(args, *kwargs)	Draw contour regions on an unstructured triangular grid.
`tripcolor`(*args[, alpha, norm, cmap, vmin, ...])	Create a pseudocolor plot of an unstructured triangular grid.
`triplot`(args, *kwargs)	Draw an unstructured triangular grid as lines and/or markers.
`twinx`()	Create a twin Axes sharing the xaxis.
`twiny`()	Create a twin Axes sharing the yaxis.
`update`(props)	Update this artist's properties from the dict props.
`update_datalim`(xys[, updatex, updatey])	Extend the ~.Axes.dataLim Bbox to include the given points.
`update_from`(other)	Copy properties from other to self.
`violin`(vpstats[, positions, vert, widths, ...])	Drawing function for violin plots.
`violinplot`(dataset[, positions, vert, ...])	Make a violin plot.
`vlines`(x, ymin, ymax[, colors, linestyles, ...])	Plot vertical lines at each x from ymin to ymax.
`xaxis_date`([tz])	Set up axis ticks and labels to treat data along the xaxis as dates.
`xaxis_inverted`()	Return whether the xaxis is oriented in the "inverse" direction.
`xcorr`(x, y[, normed, detrend, usevlines, ...])	Plot the cross correlation between x and y.
`yaxis_date`([tz])	Set up axis ticks and labels to treat data along the yaxis as dates.
`yaxis_inverted`()	Return whether the yaxis is oriented in the "inverse" direction.

Attributes

`artists`
`axes`	The ~.axes.Axes instance the artist resides in, or None.
`collections`
`images`
`lines`
`mouseover`	Return whether this artist is queried for custom context information when the mouse cursor moves over it.
`name`
`patches`
`stale`	Whether the artist is 'stale' and needs to be re-drawn for the output to match the internal state of the artist.
`sticky_edges`	`x` and `y` sticky edge lists for autoscaling.
`tables`
`texts`
`use_sticky_edges`	When autoscaling, whether to obey all Artist.sticky_edges.
`viewLim`
`zorder`

class ArtistList(axes, prop_name, add_name, valid_types=None, invalid_types=None)¶

Bases: MutableSequence

A sublist of Axes children based on their type.

The type-specific children sublists will become immutable in Matplotlib 3.7. Then, these artist lists will likely be replaced by tuples. Use as if this is a tuple already.

This class exists only for the transition period to warn on the deprecated modification of artist lists.

append(value)¶: S.append(value) – append value to the end of the sequence

clear() → None -- remove all items from S¶

count(value) → integer -- return number of occurrences of value¶

extend(values)¶: S.extend(iterable) – extend sequence by appending elements from the iterable

index(value[, start[, stop]]) → integer -- return first index of value.¶

Raises ValueError if the value is not present.

Supporting start and stop arguments is optional, but recommended.

insert(index, item)¶: S.insert(index, value) – insert value before index

pop([index]) → item -- remove and return item at index (default last).¶: Raise IndexError if list is empty or index is out of range.

remove(value)¶: S.remove(value) – remove first occurrence of value. Raise ValueError if the value is not present.

reverse()¶: S.reverse() – reverse IN PLACE

class InvertedPolarTransform(axis=None, use_rmin=True, _apply_theta_transforms=True)¶

Bases: Transform

The inverse of the polar transform, mapping Cartesian coordinate space x and y back to theta and r.

contains_branch(other)¶

Return whether the given transform is a sub-tree of this transform.

This routine uses transform equality to identify sub-trees, therefore in many situations it is object id which will be used.

For the case where the given transform represents the whole of this transform, returns True.

contains_branch_seperately(other_transform)¶

Return whether the given branch is a sub-tree of this transform on each separate dimension.

A common use for this method is to identify if a transform is a blended transform containing an Axes’ data transform. e.g.:

x_isdata, y_isdata = trans.contains_branch_seperately(ax.transData)

property depth¶: Return the number of transforms which have been chained together to form this Transform instance.

Note

For the special case of a Composite transform, the maximum depth of the two is returned.

frozen()¶: Return a frozen copy of this transform node. The frozen copy will not be updated when its children change. Useful for storing a previously known state of a transform where copy.deepcopy() might normally be used.

get_affine()¶: Get the affine part of this transform.

get_matrix()¶: Get the matrix for the affine part of this transform.

has_inverse = True¶: True if this transform has a corresponding inverse transform.

input_dims = 2¶: The number of input dimensions of this transform. Must be overridden (with integers) in the subclass.

invalidate()¶: Invalidate this TransformNode and triggers an invalidation of its ancestors. Should be called any time the transform changes.

inverted()¶

Return the corresponding inverse transformation.

It holds x == self.inverted().transform(self.transform(x)).

The return value of this method should be treated as temporary. An update to self does not cause a corresponding update to its inverted copy.

is_separable = False¶: True if this transform is separable in the x- and y- dimensions.

output_dims = 2¶: The number of output dimensions of this transform. Must be overridden (with integers) in the subclass.

pass_through = False¶: If pass_through is True, all ancestors will always be invalidated, even if ‘self’ is already invalid.

set_children(*children)¶: Set the children of the transform, to let the invalidation system know which transforms can invalidate this transform. Should be called from the constructor of any transforms that depend on other transforms.

transform(values)¶

Apply this transformation on the given array of values.

Parameters¶

valuesarray: The input values as NumPy array of length input_dims or shape (N x input_dims).

Returns¶

array: The output values as NumPy array of length output_dims or shape (N x output_dims), depending on the input.

transform_affine(values)¶

Apply only the affine part of this transformation on the given array of values.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally a no-op. In affine transformations, this is equivalent to transform(values).

Parameters¶

valuesarray: The input values as NumPy array of length input_dims or shape (N x input_dims).

Returns¶

array: The output values as NumPy array of length output_dims or shape (N x output_dims), depending on the input.

transform_angles(angles, pts, radians=False, pushoff=1e-05)¶

Transform a set of angles anchored at specific locations.

Parameters¶

angles(N,) array-like: The angles to transform.
pts(N, 2) array-like: The points where the angles are anchored.
radiansbool, default: False: Whether angles are radians or degrees.
pushofffloat: For each point in pts and angle in angles, the transformed angle is computed by transforming a segment of length pushoff starting at that point and making that angle relative to the horizontal axis, and measuring the angle between the horizontal axis and the transformed segment.

Returns¶

(N,) array

transform_bbox(bbox)¶

Transform the given bounding box.

For smarter transforms including caching (a common requirement in Matplotlib), see TransformedBbox.

transform_non_affine(xy)¶

Apply only the non-affine part of this transformation.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally equivalent to transform(values). In affine transformations, this is always a no-op.

Parameters¶

valuesarray: The input values as NumPy array of length input_dims or shape (N x input_dims).

Returns¶

array: The output values as NumPy array of length output_dims or shape (N x output_dims), depending on the input.

transform_path(path)¶

Apply the transform to .Path path, returning a new .Path.

In some cases, this transform may insert curves into the path that began as line segments.

transform_path_affine(path)¶

Apply the affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_path_non_affine(path)¶

Apply the non-affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_point(point)¶

Return a transformed point.

This function is only kept for backcompatibility; the more general .transform method is capable of transforming both a list of points and a single point.

The point is given as a sequence of length input_dims. The transformed point is returned as a sequence of length output_dims.

class PolarAffine(scale_transform, limits)¶

Bases: Affine2DBase

The affine part of the polar projection. Scales the output so that maximum radius rests on the edge of the axes circle.

contains_branch(other)¶

Return whether the given transform is a sub-tree of this transform.

This routine uses transform equality to identify sub-trees, therefore in many situations it is object id which will be used.

For the case where the given transform represents the whole of this transform, returns True.

contains_branch_seperately(other_transform)¶

Return whether the given branch is a sub-tree of this transform on each separate dimension.

A common use for this method is to identify if a transform is a blended transform containing an Axes’ data transform. e.g.:

x_isdata, y_isdata = trans.contains_branch_seperately(ax.transData)

property depth¶: Return the number of transforms which have been chained together to form this Transform instance.

Note

For the special case of a Composite transform, the maximum depth of the two is returned.

frozen()¶: Return a frozen copy of this transform node. The frozen copy will not be updated when its children change. Useful for storing a previously known state of a transform where copy.deepcopy() might normally be used.

get_affine()¶: Get the affine part of this transform.

get_matrix()¶: Get the matrix for the affine part of this transform.

has_inverse = True¶: True if this transform has a corresponding inverse transform.

input_dims = 2¶: The number of input dimensions of this transform. Must be overridden (with integers) in the subclass.

invalidate()¶: Invalidate this TransformNode and triggers an invalidation of its ancestors. Should be called any time the transform changes.

inverted()¶

Return the corresponding inverse transformation.

It holds x == self.inverted().transform(self.transform(x)).

The return value of this method should be treated as temporary. An update to self does not cause a corresponding update to its inverted copy.

property is_separable¶

bool(x) -> bool

Returns True when the argument x is true, False otherwise. The builtins True and False are the only two instances of the class bool. The class bool is a subclass of the class int, and cannot be subclassed.

output_dims = 2¶: The number of output dimensions of this transform. Must be overridden (with integers) in the subclass.

pass_through = False¶: If pass_through is True, all ancestors will always be invalidated, even if ‘self’ is already invalid.

set_children(*children)¶: Set the children of the transform, to let the invalidation system know which transforms can invalidate this transform. Should be called from the constructor of any transforms that depend on other transforms.

to_values()¶: Return the values of the matrix as an (a, b, c, d, e, f) tuple.

transform(values)¶

Apply this transformation on the given array of values.

Parameters¶

valuesarray: The input values as NumPy array of length input_dims or shape (N x input_dims).

Returns¶

array: The output values as NumPy array of length output_dims or shape (N x output_dims), depending on the input.

transform_affine(points)¶

Apply only the affine part of this transformation on the given array of values.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally a no-op. In affine transformations, this is equivalent to transform(values).

Parameters¶

valuesarray: The input values as NumPy array of length input_dims or shape (N x input_dims).

Returns¶

array: The output values as NumPy array of length output_dims or shape (N x output_dims), depending on the input.

transform_angles(angles, pts, radians=False, pushoff=1e-05)¶

Transform a set of angles anchored at specific locations.

Parameters¶

angles(N,) array-like: The angles to transform.
pts(N, 2) array-like: The points where the angles are anchored.
radiansbool, default: False: Whether angles are radians or degrees.
pushofffloat: For each point in pts and angle in angles, the transformed angle is computed by transforming a segment of length pushoff starting at that point and making that angle relative to the horizontal axis, and measuring the angle between the horizontal axis and the transformed segment.

Returns¶

(N,) array

transform_bbox(bbox)¶

Transform the given bounding box.

For smarter transforms including caching (a common requirement in Matplotlib), see TransformedBbox.

transform_non_affine(points)¶

Apply only the non-affine part of this transformation.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally equivalent to transform(values). In affine transformations, this is always a no-op.

Parameters¶

valuesarray: The input values as NumPy array of length input_dims or shape (N x input_dims).

Returns¶

array: The output values as NumPy array of length output_dims or shape (N x output_dims), depending on the input.

transform_path(path)¶

Apply the transform to .Path path, returning a new .Path.

In some cases, this transform may insert curves into the path that began as line segments.

transform_path_affine(path)¶

Apply the affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_path_non_affine(path)¶

Apply the non-affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_point(point)¶

Return a transformed point.

This function is only kept for backcompatibility; the more general .transform method is capable of transforming both a list of points and a single point.

The point is given as a sequence of length input_dims. The transformed point is returned as a sequence of length output_dims.

class PolarTransform(axis=None, use_rmin=True, _apply_theta_transforms=True)¶

Bases: Transform

The base polar transform.

This transform maps polar coordinates (theta, r) into Cartesian coordinates (x, y) = (r * cos(theta), r * sin(theta)) (but does not handle positioning in screen space).

Path segments at a fixed radius are automatically transformed to circular arcs as long as path._interpolation_steps > 1.

contains_branch(other)¶

Return whether the given transform is a sub-tree of this transform.

This routine uses transform equality to identify sub-trees, therefore in many situations it is object id which will be used.

For the case where the given transform represents the whole of this transform, returns True.

contains_branch_seperately(other_transform)¶

Return whether the given branch is a sub-tree of this transform on each separate dimension.

A common use for this method is to identify if a transform is a blended transform containing an Axes’ data transform. e.g.:

x_isdata, y_isdata = trans.contains_branch_seperately(ax.transData)

property depth¶: Return the number of transforms which have been chained together to form this Transform instance.

Note

For the special case of a Composite transform, the maximum depth of the two is returned.

frozen()¶: Return a frozen copy of this transform node. The frozen copy will not be updated when its children change. Useful for storing a previously known state of a transform where copy.deepcopy() might normally be used.

get_affine()¶: Get the affine part of this transform.

get_matrix()¶: Get the matrix for the affine part of this transform.

has_inverse = True¶: True if this transform has a corresponding inverse transform.

input_dims = 2¶: The number of input dimensions of this transform. Must be overridden (with integers) in the subclass.

invalidate()¶: Invalidate this TransformNode and triggers an invalidation of its ancestors. Should be called any time the transform changes.

inverted()¶

Return the corresponding inverse transformation.

It holds x == self.inverted().transform(self.transform(x)).

The return value of this method should be treated as temporary. An update to self does not cause a corresponding update to its inverted copy.

is_separable = False¶: True if this transform is separable in the x- and y- dimensions.

output_dims = 2¶: The number of output dimensions of this transform. Must be overridden (with integers) in the subclass.

pass_through = False¶: If pass_through is True, all ancestors will always be invalidated, even if ‘self’ is already invalid.

set_children(*children)¶: Set the children of the transform, to let the invalidation system know which transforms can invalidate this transform. Should be called from the constructor of any transforms that depend on other transforms.

transform(values)¶

Apply this transformation on the given array of values.

Parameters¶

valuesarray: The input values as NumPy array of length input_dims or shape (N x input_dims).

Returns¶

array: The output values as NumPy array of length output_dims or shape (N x output_dims), depending on the input.

transform_affine(values)¶

Apply only the affine part of this transformation on the given array of values.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally a no-op. In affine transformations, this is equivalent to transform(values).

Parameters¶

valuesarray: The input values as NumPy array of length input_dims or shape (N x input_dims).

Returns¶

array: The output values as NumPy array of length output_dims or shape (N x output_dims), depending on the input.

transform_angles(angles, pts, radians=False, pushoff=1e-05)¶

Transform a set of angles anchored at specific locations.

Parameters¶

angles(N,) array-like: The angles to transform.
pts(N, 2) array-like: The points where the angles are anchored.
radiansbool, default: False: Whether angles are radians or degrees.
pushofffloat: For each point in pts and angle in angles, the transformed angle is computed by transforming a segment of length pushoff starting at that point and making that angle relative to the horizontal axis, and measuring the angle between the horizontal axis and the transformed segment.

Returns¶

(N,) array

transform_bbox(bbox)¶

Transform the given bounding box.

For smarter transforms including caching (a common requirement in Matplotlib), see TransformedBbox.

transform_non_affine(tr)¶

Apply only the non-affine part of this transformation.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally equivalent to transform(values). In affine transformations, this is always a no-op.

Parameters¶

valuesarray: The input values as NumPy array of length input_dims or shape (N x input_dims).

Returns¶

array: The output values as NumPy array of length output_dims or shape (N x output_dims), depending on the input.

transform_path(path)¶

Apply the transform to .Path path, returning a new .Path.

In some cases, this transform may insert curves into the path that began as line segments.

transform_path_affine(path)¶

Apply the affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_path_non_affine(path)¶

Apply the non-affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_point(point)¶

Return a transformed point.

This function is only kept for backcompatibility; the more general .transform method is capable of transforming both a list of points and a single point.

The point is given as a sequence of length input_dims. The transformed point is returned as a sequence of length output_dims.

class RadialLocator(base, axes=None)¶

Bases: Locator

Used to locate radius ticks.

Ensures that all ticks are strictly positive. For all other tasks, it delegates to the base .Locator (which may be different depending on the scale of the r-axis).

nonsingular(vmin, vmax)¶

Adjust a range as needed to avoid singularities.

This method gets called during autoscaling, with (v0, v1) set to the data limits on the axes if the axes contains any data, or (-inf, +inf) if not.

If v0 == v1 (possibly up to some floating point slop), this method returns an expanded interval around this value.
If (v0, v1) == (-inf, +inf), this method returns appropriate default view limits.
Otherwise, (v0, v1) is returned without modification.

raise_if_exceeds(locs)¶

Log at WARNING level if locs is longer than Locator.MAXTICKS.

This is intended to be called immediately before returning locs from __call__ to inform users in case their Locator returns a huge number of ticks, causing Matplotlib to run out of memory.

The “strange” name of this method dates back to when it would raise an exception instead of emitting a log.

set_bounds(vmin, vmax)¶: [Deprecated]

Notes¶

Deprecated since version 3.5: Use .Axis.set_view_interval and .Axis.set_data_interval instead.

set_data_interval(vmin, vmax)¶: [Deprecated]

Notes¶

Deprecated since version 3.5: Use .Axis.set_data_interval instead.

set_params(**kwargs)¶: Do nothing, and raise a warning. Any locator class not supporting the set_params() function will call this.

set_view_interval(vmin, vmax)¶: [Deprecated]

Notes¶

Deprecated since version 3.5: Use .Axis.set_view_interval instead.

tick_values(vmin, vmax)¶

Return the values of the located ticks given vmin and vmax.

Note

To get tick locations with the vmin and vmax values defined automatically for the associated axis simply call the Locator instance:

>>> print(type(loc))
<type 'Locator'>
>>> print(loc())
[1, 2, 3, 4]

view_limits(vmin, vmax)¶

Select a scale for the range from vmin to vmax.

Subclasses should override this method to change locator behaviour.

class ThetaFormatter¶

Bases: Formatter

Used to format the theta tick labels. Converts the native unit of radians into degrees and adds a degree symbol.

static fix_minus(s)¶: Some classes may want to replace a hyphen for minus with the proper Unicode symbol (U+2212) for typographical correctness. This is a helper method to perform such a replacement when it is enabled via :rc:`axes.unicode_minus`.

format_data(value)¶: Return the full string representation of the value with the position unspecified.

format_data_short(value)¶

Return a short string version of the tick value.

Defaults to the position-independent long value.

format_ticks(values)¶: Return the tick labels for all the ticks at once.

set_bounds(vmin, vmax)¶: [Deprecated]

Notes¶

Deprecated since version 3.5: Use .Axis.set_view_interval and .Axis.set_data_interval instead.

set_data_interval(vmin, vmax)¶: [Deprecated]

Notes¶

Deprecated since version 3.5: Use .Axis.set_data_interval instead.

set_locs(locs)¶

Set the locations of the ticks.

This method is called before computing the tick labels because some formatters need to know all tick locations to do so.

set_view_interval(vmin, vmax)¶: [Deprecated]

Notes¶

Deprecated since version 3.5: Use .Axis.set_view_interval instead.

class ThetaLocator(base)¶

Bases: Locator

Used to locate theta ticks.

This will work the same as the base locator except in the case that the view spans the entire circle. In such cases, the previously used default locations of every 45 degrees are returned.

nonsingular(v0, v1)¶

Adjust a range as needed to avoid singularities.

This method gets called during autoscaling, with (v0, v1) set to the data limits on the axes if the axes contains any data, or (-inf, +inf) if not.

If v0 == v1 (possibly up to some floating point slop), this method returns an expanded interval around this value.
If (v0, v1) == (-inf, +inf), this method returns appropriate default view limits.
Otherwise, (v0, v1) is returned without modification.

raise_if_exceeds(locs)¶

Log at WARNING level if locs is longer than Locator.MAXTICKS.

This is intended to be called immediately before returning locs from __call__ to inform users in case their Locator returns a huge number of ticks, causing Matplotlib to run out of memory.

The “strange” name of this method dates back to when it would raise an exception instead of emitting a log.

set_bounds(vmin, vmax)¶: [Deprecated]

Notes¶

Deprecated since version 3.5: Use .Axis.set_view_interval and .Axis.set_data_interval instead.

set_data_interval(vmin, vmax)¶: [Deprecated]

Notes¶

Deprecated since version 3.5: Use .Axis.set_data_interval instead.

set_params(**kwargs)¶: Do nothing, and raise a warning. Any locator class not supporting the set_params() function will call this.

set_view_interval(vmin, vmax)¶: [Deprecated]

Notes¶

Deprecated since version 3.5: Use .Axis.set_view_interval instead.

tick_values(vmin, vmax)¶

Return the values of the located ticks given vmin and vmax.

Note

To get tick locations with the vmin and vmax values defined automatically for the associated axis simply call the Locator instance:

>>> print(type(loc))
<type 'Locator'>
>>> print(loc())
[1, 2, 3, 4]

view_limits(vmin, vmax)¶

Select a scale for the range from vmin to vmax.

Subclasses should override this method to change locator behaviour.

acorr(x, *, data=None, **kwargs)¶

Plot the autocorrelation of x.

Parameters¶

x : array-like

detrendcallable, default: .mlab.detrend_none (no detrending)

A detrending function applied to x. It must have the signature

detrend(x: np.ndarray) -> np.ndarray

normedbool, default: True

If True, input vectors are normalised to unit length.

usevlinesbool, default: True

Determines the plot style.

If True, vertical lines are plotted from 0 to the acorr value using .Axes.vlines. Additionally, a horizontal line is plotted at y=0 using .Axes.axhline.

If False, markers are plotted at the acorr values using .Axes.plot.

maxlagsint, default: 10

Number of lags to show. If None, will return all 2 * len(x) - 1 lags.

Returns¶

lagsarray (length 2*maxlags+1)

The lag vector.

carray (length 2*maxlags+1)

The auto correlation vector.

line.LineCollection or .Line2D

.Artist added to the Axes of the correlation:

.LineCollection if usevlines is True.
.Line2D if usevlines is False.

b.Line2D or None

Horizontal line at 0 if usevlines is True None usevlines is False.

Other Parameters¶

linestyle.Line2D property, optional

The linestyle for plotting the data points. Only used if usevlines is False.

markerstr, default: ‘o’

The marker for plotting the data points. Only used if usevlines is False.

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x

**kwargs

Additional parameters are passed to .Axes.vlines and .Axes.axhline if usevlines is True; otherwise they are passed to .Axes.plot.

Notes¶

The cross correlation is performed with numpy.correlate with mode = "full".

add_artist(a)¶

Add an .Artist to the Axes; return the artist.

Use add_artist only for artists for which there is no dedicated “add” method; and if necessary, use a method such as update_datalim to manually update the dataLim if the artist is to be included in autoscaling.

If no transform has been specified when creating the artist (e.g. artist.get_transform() == None) then the transform is set to ax.transData.

add_callback(func)¶

Add a callback function that will be called whenever one of the .Artist’s properties changes.

Parameters¶

funccallable

The callback function. It must have the signature:

def func(artist: Artist) -> Any

where artist is the calling .Artist. Return values may exist but are ignored.

Returns¶

int: The observer id associated with the callback. This id can be used for removing the callback with .remove_callback later.

Parameters¶

x1-D array or sequence: Array or sequence containing the data.
Fsfloat, default: 2: The sampling frequency (samples per time unit). It is used to calculate the Fourier frequencies, freqs, in cycles per time unit.
windowcallable or ndarray, default: .window_hanning: A function or a vector of length NFFT. To create window vectors see .window_hanning, .window_none, numpy.blackman, numpy.hamming, numpy.bartlett, scipy.signal, scipy.signal.get_window, etc. If a function is passed as the argument, it must take a data segment as an argument and return the windowed version of the segment.
sides{‘default’, ‘onesided’, ‘twosided’}, optional: Which sides of the spectrum to return. ‘default’ is one-sided for real data and two-sided for complex data. ‘onesided’ forces the return of a one-sided spectrum, while ‘twosided’ forces two-sided.
pad_toint, optional: The number of points to which the data segment is padded when performing the FFT. While not increasing the actual resolution of the spectrum (the minimum distance between resolvable peaks), this can give more points in the plot, allowing for more detail. This corresponds to the n parameter in the call to ~numpy.fft.fft. The default is None, which sets pad_to equal to the length of the input signal (i.e. no padding).
Fcint, default: 0: The center frequency of x, which offsets the x extents of the plot to reflect the frequency range used when a signal is acquired and then filtered and downsampled to baseband.

Returns¶

spectrum1-D array: The values for the angle spectrum in radians (real valued).
freqs1-D array: The frequencies corresponding to the elements in spectrum.
line~matplotlib.lines.Line2D: The line created by this function.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x

**kwargs

Keyword arguments control the .Line2D properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Parameters¶

textstr: The text of the annotation.
xy(float, float): The point (x, y) to annotate. The coordinate system is determined by xycoords.
xytext(float, float), default: xy: The position (x, y) to place the text at. The coordinate system is determined by textcoords.

xycoords : str or .Artist or .Transform or callable or (float, float), default: ‘data’

The coordinate system that xy is given in. The following types of values are supported:
One of the following strings:

Value

Description

‘figure points’

Points from the lower left of the figure

‘figure pixels’

Pixels from the lower left of the figure

‘figure fraction’

Fraction of figure from lower left

‘subfigure points’

Points from the lower left of the subfigure

‘subfigure pixels’

Pixels from the lower left of the subfigure

‘subfigure fraction’

Fraction of subfigure from lower left

‘axes points’

Points from lower left corner of axes

‘axes pixels’

Pixels from lower left corner of axes

‘axes fraction’

Fraction of axes from lower left

‘data’

Use the coordinate system of the object being annotated (default)

‘polar’

(theta, r) if not native ‘data’ coordinates

Note that ‘subfigure pixels’ and ‘figure pixels’ are the same for the parent figure, so users who want code that is usable in a subfigure can use ‘subfigure pixels’.

An .Artist: xy is interpreted as a fraction of the artist’s ~matplotlib.transforms.Bbox. E.g. (0, 0) would be the lower left corner of the bounding box and (0.5, 1) would be the center top of the bounding box.

A .Transform to transform xy to screen coordinates.
A function with one of the following signatures:
def transform(renderer) -> Bbox
def transform(renderer) -> Transform
where renderer is a .RendererBase subclass.

The result of the function is interpreted like the .Artist and .Transform cases above.
A tuple (xcoords, ycoords) specifying separate coordinate systems for x and y. xcoords and ycoords must each be of one of the above described types.
See plotting-guide-annotation for more details.

textcoordsstr or .Artist or .Transform or callable or (float, float), default: value of xycoords

The coordinate system that xytext is given in.

All xycoords values are valid as well as the following strings:

Value	Description
‘offset points’	Offset (in points) from the xy value
‘offset pixels’	Offset (in pixels) from the xy value

arrowpropsdict, optional

The properties used to draw a .FancyArrowPatch arrow between the positions xy and xytext. Defaults to None, i.e. no arrow is drawn.

For historical reasons there are two different ways to specify arrows, “simple” and “fancy”:

Simple arrow:

If arrowprops does not contain the key ‘arrowstyle’ the allowed keys are:

Key	Description
width	The width of the arrow in points
headwidth	The width of the base of the arrow head in points
headlength	The length of the arrow head in points
shrink	Fraction of total length to shrink from both ends
?	Any key to `matplotlib.patches.FancyArrowPatch`

The arrow is attached to the edge of the text box, the exact position (corners or centers) depending on where it’s pointing to.

Fancy arrow:

This is used if ‘arrowstyle’ is provided in the arrowprops.

Valid keys are the following ~matplotlib.patches.FancyArrowPatch parameters:

Key	Description
arrowstyle	the arrow style
connectionstyle	the connection style
relpos	see below; default is (0.5, 0.5)
patchA	default is bounding box of the text
patchB	default is None
shrinkA	default is 2 points
shrinkB	default is 2 points
mutation_scale	default is text size (in points)
mutation_aspect	default is 1.
?	any key for `matplotlib.patches.PathPatch`

The exact starting point position of the arrow is defined by relpos. It’s a tuple of relative coordinates of the text box, where (0, 0) is the lower left corner and (1, 1) is the upper right corner. Values <0 and >1 are supported and specify points outside the text box. By default (0.5, 0.5) the starting point is centered in the text box.

annotation_clipbool or None, default: None

Whether to clip (i.e. not draw) the annotation when the annotation point xy is outside the axes area.

If True, the annotation will be clipped when xy is outside the axes.
If False, the annotation will always be drawn.
If None, the annotation will be clipped when xy is outside the axes and xycoords is ‘data’.

**kwargs

Additional kwargs are passed to ~matplotlib.text.Text.

Returns¶

.Annotation

Parameters¶

positionNone or .Bbox: If not None, this defines the position of the Axes within the figure as a Bbox. See ~.Axes.get_position for further details.

Notes¶

This is called automatically when each Axes is drawn. You may need to call it yourself if you need to update the Axes position and/or view limits before the Figure is drawn.

Parameters¶

x, yfloat

The x and y coordinates of the arrow base.

dx, dyfloat

The length of the arrow along x and y direction.

widthfloat, default: 0.001

Width of full arrow tail.

length_includes_headbool, default: False

True if head is to be counted in calculating the length.

head_widthfloat or None, default: 3*width

Total width of the full arrow head.

head_lengthfloat or None, default: 1.5*head_width

Length of arrow head.

shape{‘full’, ‘left’, ‘right’}, default: ‘full’

Draw the left-half, right-half, or full arrow.

overhangfloat, default: 0

Fraction that the arrow is swept back (0 overhang means triangular shape). Can be negative or greater than one.

head_starts_at_zerobool, default: False

If True, the head starts being drawn at coordinate 0 instead of ending at coordinate 0.

**kwargs

.Patch properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: unknown animated: bool antialiased or aa: bool or None capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color: color edgecolor or ec: color or None facecolor or fc: color or None figure: .Figure fill: bool gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float or None mouseover: bool path_effects: .AbstractPathEffect picker: None or bool or float or callable rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str visible: bool zorder: float

Returns¶

.FancyArrow: The created .FancyArrow object.

Notes¶

The resulting arrow is affected by the Axes aspect ratio and limits. This may produce an arrow whose head is not square with its stem. To create an arrow whose head is square with its stem, use annotate() for example:

>>> ax.annotate("", xy=(0.5, 0.5), xytext=(0, 0),
...             arrowprops=dict(arrowstyle="->"))

autoscale(enable=True, axis='both', tight=None)¶

Autoscale the axis view to the data (toggle).

Convenience method for simple axis view autoscaling. It turns autoscaling on or off, and then, if autoscaling for either axis is on, it performs the autoscaling on the specified axis or Axes.

Parameters¶

enablebool or None, default: True: True turns autoscaling on, False turns it off. None leaves the autoscaling state unchanged.
axis{‘both’, ‘x’, ‘y’}, default: ‘both’: The axis on which to operate. (For 3D Axes, axis can also be set to ‘z’, and ‘both’ refers to all three axes.)
tightbool or None, default: None: If True, first set the margins to zero. Then, this argument is forwarded to ~.axes.Axes.autoscale_view (regardless of its value); see the description of its behavior there.

autoscale_view(tight=None, scalex=True, scaley=True)¶

Autoscale the view limits using the data limits.

Parameters¶

tightbool or None

If True, only expand the axis limits using the margins. Note that unlike for autoscale, tight=True does not set the margins to zero.

If False and :rc:`axes.autolimit_mode` is ‘round_numbers’, then after expansion by the margins, further expand the axis limits using the axis major locator.

If None (the default), reuse the value set in the previous call to autoscale_view (the initial value is False, but the default style sets :rc:`axes.autolimit_mode` to ‘data’, in which case this behaves like True).

scalexbool, default: True

Whether to autoscale the x axis.

scaleybool, default: True

Whether to autoscale the y axis.

Notes¶

The autoscaling preserves any preexisting axis direction reversal.

The data limits are not updated automatically when artist data are changed after the artist has been added to an Axes instance. In that case, use matplotlib.axes.Axes.relim() prior to calling autoscale_view.

If the views of the Axes are fixed, e.g. via set_xlim, they will not be changed by autoscale_view(). See matplotlib.axes.Axes.autoscale() for an alternative.

property axes¶: The ~.axes.Axes instance the artist resides in, or None.

axhline(y=0, xmin=0, xmax=1, **kwargs)¶

Add a horizontal line across the Axes.

Parameters¶

yfloat, default: 0: y position in data coordinates of the horizontal line.
xminfloat, default: 0: Should be between 0 and 1, 0 being the far left of the plot, 1 the far right of the plot.
xmaxfloat, default: 1: Should be between 0 and 1, 0 being the far left of the plot, 1 the far right of the plot.

Returns¶

~matplotlib.lines.Line2D

Other Parameters¶

**kwargs

Valid keyword arguments are .Line2D properties, with the exception of ‘transform’:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Examples¶

draw a thick red hline at ‘y’ = 0 that spans the xrange:
```
>>> axhline(linewidth=4, color='r')
```
draw a default hline at ‘y’ = 1 that spans the xrange:
```
>>> axhline(y=1)
```
draw a default hline at ‘y’ = .5 that spans the middle half of the xrange:
```
>>> axhline(y=.5, xmin=0.25, xmax=0.75)
```

axhspan(ymin, ymax, xmin=0, xmax=1, **kwargs)¶

Add a horizontal span (rectangle) across the Axes.

The rectangle spans from ymin to ymax vertically, and, by default, the whole x-axis horizontally. The x-span can be set using xmin (default: 0) and xmax (default: 1) which are in axis units; e.g. xmin = 0.5 always refers to the middle of the x-axis regardless of the limits set by ~.Axes.set_xlim.

Parameters¶

yminfloat: Lower y-coordinate of the span, in data units.
ymaxfloat: Upper y-coordinate of the span, in data units.
xminfloat, default: 0: Lower x-coordinate of the span, in x-axis (0-1) units.
xmaxfloat, default: 1: Upper x-coordinate of the span, in x-axis (0-1) units.

Returns¶

~matplotlib.patches.Polygon: Horizontal span (rectangle) from (xmin, ymin) to (xmax, ymax).

Other Parameters¶

**kwargs : ~matplotlib.patches.Polygon properties

Properties:: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool or None capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None closed: bool color: color edgecolor or ec: color or None facecolor or fc: color or None figure: .Figure fill: bool gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float or None mouseover: bool path_effects: .AbstractPathEffect picker: None or bool or float or callable rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str visible: bool xy: (N, 2) array-like zorder: float

Parameters¶

xmin, xmax, ymin, ymaxfloat, optional

The axis limits to be set. This can also be achieved using

ax.set(xlim=(xmin, xmax), ylim=(ymin, ymax))

optionbool or str

If a bool, turns axis lines and labels on or off. If a string, possible values are:

Value	Description
‘on’	Turn on axis lines and labels. Same as `True`.
‘off’	Turn off axis lines and labels. Same as `False`.
‘equal’	Set equal scaling (i.e., make circles circular) by changing axis limits. This is the same as `ax.set_aspect('equal', adjustable='datalim')`. Explicit data limits may not be respected in this case.
‘scaled’	Set equal scaling (i.e., make circles circular) by changing dimensions of the plot box. This is the same as `ax.set_aspect('equal', adjustable='box', anchor='C')`. Additionally, further autoscaling will be disabled.
‘tight’	Set limits just large enough to show all data, then disable further autoscaling.
‘auto’	Automatic scaling (fill plot box with data).
‘image’	‘scaled’ with axis limits equal to data limits.
‘square’	Square plot; similar to ‘scaled’, but initially forcing `xmax-xmin == ymax-ymin`.

emitbool, default: True

Whether observers are notified of the axis limit change. This option is passed on to ~.Axes.set_xlim and ~.Axes.set_ylim.

Returns¶

xmin, xmax, ymin, ymaxfloat: The axis limits.

Parameters¶

xy1, xy2(float, float): Points for the line to pass through. Either xy2 or slope has to be given.
slopefloat, optional: The slope of the line. Either xy2 or slope has to be given.

Returns¶

.Line2D

Other Parameters¶

**kwargs

Valid kwargs are .Line2D properties

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Examples¶

Draw a thick red line passing through (0, 0) and (1, 1):

>>> axline((0, 0), (1, 1), linewidth=4, color='r')

axvline(x=0, ymin=0, ymax=1, **kwargs)¶

Add a vertical line across the Axes.

Parameters¶

xfloat, default: 0: x position in data coordinates of the vertical line.
yminfloat, default: 0: Should be between 0 and 1, 0 being the bottom of the plot, 1 the top of the plot.
ymaxfloat, default: 1: Should be between 0 and 1, 0 being the bottom of the plot, 1 the top of the plot.

Returns¶

~matplotlib.lines.Line2D

Other Parameters¶

**kwargs

Valid keyword arguments are .Line2D properties, with the exception of ‘transform’:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Examples¶

draw a thick red vline at x = 0 that spans the yrange:
```
>>> axvline(linewidth=4, color='r')
```
draw a default vline at x = 1 that spans the yrange:
```
>>> axvline(x=1)
```
draw a default vline at x = .5 that spans the middle half of the yrange:
```
>>> axvline(x=.5, ymin=0.25, ymax=0.75)
```

axvspan(xmin, xmax, ymin=0, ymax=1, **kwargs)¶

Add a vertical span (rectangle) across the Axes.

The rectangle spans from xmin to xmax horizontally, and, by default, the whole y-axis vertically. The y-span can be set using ymin (default: 0) and ymax (default: 1) which are in axis units; e.g. ymin = 0.5 always refers to the middle of the y-axis regardless of the limits set by ~.Axes.set_ylim.

Parameters¶

xminfloat: Lower x-coordinate of the span, in data units.
xmaxfloat: Upper x-coordinate of the span, in data units.
yminfloat, default: 0: Lower y-coordinate of the span, in y-axis units (0-1).
ymaxfloat, default: 1: Upper y-coordinate of the span, in y-axis units (0-1).

Returns¶

~matplotlib.patches.Polygon: Vertical span (rectangle) from (xmin, ymin) to (xmax, ymax).

Other Parameters¶

**kwargs : ~matplotlib.patches.Polygon properties

Properties:: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool or None capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None closed: bool color: color edgecolor or ec: color or None facecolor or fc: color or None figure: .Figure fill: bool gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float or None mouseover: bool path_effects: .AbstractPathEffect picker: None or bool or float or callable rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str visible: bool xy: (N, 2) array-like zorder: float

Examples¶

Draw a vertical, green, translucent rectangle from x = 1.25 to x = 1.55 that spans the yrange of the Axes.

>>> axvspan(1.25, 1.55, facecolor='g', alpha=0.5)

bar(x, height, width=0.8, bottom=None, *, align='center', data=None, **kwargs)¶

Make a bar plot.

The bars are positioned at x with the given alignment. Their dimensions are given by height and width. The vertical baseline is bottom (default 0).

Many parameters can take either a single value applying to all bars or a sequence of values, one for each bar.

Parameters¶

xfloat or array-like

The x coordinates of the bars. See also align for the alignment of the bars to the coordinates.

heightfloat or array-like

The height(s) of the bars.

widthfloat or array-like, default: 0.8

The width(s) of the bars.

bottomfloat or array-like, default: 0

The y coordinate(s) of the bottom side(s) of the bars.

align{‘center’, ‘edge’}, default: ‘center’

Alignment of the bars to the x coordinates:

‘center’: Center the base on the x positions.
‘edge’: Align the left edges of the bars with the x positions.

To align the bars on the right edge pass a negative width and align='edge'.

Returns¶

.BarContainer: Container with all the bars and optionally errorbars.

Other Parameters¶

colorcolor or list of color, optional

The colors of the bar faces.

edgecolorcolor or list of color, optional

The colors of the bar edges.

linewidthfloat or array-like, optional

Width of the bar edge(s). If 0, don’t draw edges.

tick_labelstr or list of str, optional

The tick labels of the bars. Default: None (Use default numeric labels.)

labelstr or list of str, optional

A single label is attached to the resulting .BarContainer as a label for the whole dataset. If a list is provided, it must be the same length as x and labels the individual bars. Repeated labels are not de-duplicated and will cause repeated label entries, so this is best used when bars also differ in style (e.g., by passing a list to color.)

xerr, yerrfloat or array-like of shape(N,) or shape(2, N), optional

If not None, add horizontal / vertical errorbars to the bar tips. The values are +/- sizes relative to the data:

scalar: symmetric +/- values for all bars
shape(N,): symmetric +/- values for each bar
shape(2, N): Separate - and + values for each bar. First row contains the lower errors, the second row contains the upper errors.
None: No errorbar. (Default)

See /gallery/statistics/errorbar_features for an example on the usage of xerr and yerr.

ecolorcolor or list of color, default: ‘black’

The line color of the errorbars.

capsizefloat, default: :rc:`errorbar.capsize`

The length of the error bar caps in points.

error_kwdict, optional

Dictionary of keyword arguments to be passed to the ~.Axes.errorbar method. Values of ecolor or capsize defined here take precedence over the independent keyword arguments.

logbool, default: False

If True, set the y-axis to be log scale.

dataindexable object, optional

If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).

**kwargs : .Rectangle properties

Properties:: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None angle: unknown animated: bool antialiased or aa: bool or None bounds: (left, bottom, width, height) capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color: color edgecolor or ec: color or None facecolor or fc: color or None figure: .Figure fill: bool gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} height: unknown in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float or None mouseover: bool path_effects: .AbstractPathEffect picker: None or bool or float or callable rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str visible: bool width: unknown x: unknown xy: (float, float) y: unknown zorder: float

Notes¶

Stacked bars can be achieved by passing individual bottom values per bar. See /gallery/lines_bars_and_markers/bar_stacked.

bar_label(container, labels=None, *, fmt='%g', label_type='edge', padding=0, **kwargs)¶

Label a bar plot.

Adds labels to bars in the given .BarContainer. You may need to adjust the axis limits to fit the labels.

Parameters¶

container.BarContainer

Container with all the bars and optionally errorbars, likely returned from .bar or .barh.

labelsarray-like, optional

A list of label texts, that should be displayed. If not given, the label texts will be the data values formatted with fmt.

fmtstr, default: ‘%g’

A format string for the label.

label_type{‘edge’, ‘center’}, default: ‘edge’

The label type. Possible values:

‘edge’: label placed at the end-point of the bar segment, and the value displayed will be the position of that end-point.
‘center’: label placed in the center of the bar segment, and the value displayed will be the length of that segment. (useful for stacked bars, i.e., /gallery/lines_bars_and_markers/bar_label_demo)

paddingfloat, default: 0

Distance of label from the end of the bar, in points.

**kwargs

Any remaining keyword arguments are passed through to .Axes.annotate. The alignment parameters ( horizontalalignment / ha, verticalalignment / va) are not supported because the labels are automatically aligned to the bars.

Returns¶

list of .Text: A list of .Text instances for the labels.

barbs(*args, data=None, **kwargs)¶

Plot a 2D field of barbs.

Call signature:

barbs([X, Y], U, V, [C], **kwargs)

Where X, Y define the barb locations, U, V define the barb directions, and C optionally sets the color.

All arguments may be 1D or 2D. U, V, C may be masked arrays, but masked X, Y are not supported at present.

Barbs are traditionally used in meteorology as a way to plot the speed and direction of wind observations, but can technically be used to plot any two dimensional vector quantity. As opposed to arrows, which give vector magnitude by the length of the arrow, the barbs give more quantitative information about the vector magnitude by putting slanted lines or a triangle for various increments in magnitude, as show schematically below:

:                   /\    \
:                  /  \    \
:                 /    \    \    \
:                /      \    \    \
:               ------------------------------

The largest increment is given by a triangle (or “flag”). After those come full lines (barbs). The smallest increment is a half line. There is only, of course, ever at most 1 half line. If the magnitude is small and only needs a single half-line and no full lines or triangles, the half-line is offset from the end of the barb so that it can be easily distinguished from barbs with a single full line. The magnitude for the barb shown above would nominally be 65, using the standard increments of 50, 10, and 5.

Parameters¶

X, Y1D or 2D array-like, optional

The x and y coordinates of the barb locations. See pivot for how the barbs are drawn to the x, y positions.

If not given, they will be generated as a uniform integer meshgrid based on the dimensions of U and V.

If X and Y are 1D but U, V are 2D, X, Y are expanded to 2D using X, Y = np.meshgrid(X, Y). In this case len(X) and len(Y) must match the column and row dimensions of U and V.

U, V1D or 2D array-like

The x and y components of the barb shaft.

C1D or 2D array-like, optional

Numeric data that defines the barb colors by colormapping via norm and cmap.

This does not support explicit colors. If you want to set colors directly, use barbcolor instead.

lengthfloat, default: 7

Length of the barb in points; the other parts of the barb are scaled against this.

pivot{‘tip’, ‘middle’} or float, default: ‘tip’

The part of the arrow that is anchored to the X, Y grid. The barb rotates about this point. This can also be a number, which shifts the start of the barb that many points away from grid point.

barbcolorcolor or color sequence

The color of all parts of the barb except for the flags. This parameter is analogous to the edgecolor parameter for polygons, which can be used instead. However this parameter will override facecolor.

flagcolorcolor or color sequence

The color of any flags on the barb. This parameter is analogous to the facecolor parameter for polygons, which can be used instead. However, this parameter will override facecolor. If this is not set (and C has not either) then flagcolor will be set to match barbcolor so that the barb has a uniform color. If C has been set, flagcolor has no effect.

sizesdict, optional

A dictionary of coefficients specifying the ratio of a given feature to the length of the barb. Only those values one wishes to override need to be included. These features include:

‘spacing’ - space between features (flags, full/half barbs)
‘height’ - height (distance from shaft to top) of a flag or full barb
‘width’ - width of a flag, twice the width of a full barb
‘emptybarb’ - radius of the circle used for low magnitudes

fill_emptybool, default: False

Whether the empty barbs (circles) that are drawn should be filled with the flag color. If they are not filled, the center is transparent.

roundingbool, default: True

Whether the vector magnitude should be rounded when allocating barb components. If True, the magnitude is rounded to the nearest multiple of the half-barb increment. If False, the magnitude is simply truncated to the next lowest multiple.

barb_incrementsdict, optional

A dictionary of increments specifying values to associate with different parts of the barb. Only those values one wishes to override need to be included.

‘half’ - half barbs (Default is 5)
‘full’ - full barbs (Default is 10)
‘flag’ - flags (default is 50)

flip_barbbool or array-like of bool, default: False

Whether the lines and flags should point opposite to normal. Normal behavior is for the barbs and lines to point right (comes from wind barbs having these features point towards low pressure in the Northern Hemisphere).

A single value is applied to all barbs. Individual barbs can be flipped by passing a bool array of the same size as U and V.

Returns¶

barbs : ~matplotlib.quiver.Barbs

Other Parameters¶

dataindexable object, optional

If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).

**kwargs

The barbs can further be customized using .PolyCollection keyword arguments:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: array-like or scalar or None animated: bool antialiased or aa or antialiaseds: bool or list of bools array: array-like or None capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clim: (vmin: float, vmax: float) clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None cmap: .Colormap or str or None color: color or list of rgba tuples edgecolor or ec or edgecolors: color or list of colors or ‘face’ facecolor or facecolors or fc: color or list of colors figure: .Figure gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or dashes or linestyles or ls: str or tuple or list thereof linewidth or linewidths or lw: float or list of floats mouseover: bool norm: .Normalize or str or None offset_transform or transOffset: unknown offsets: (N, 2) or (2,) array-like path_effects: .AbstractPathEffect paths: list of array-like picker: None or bool or float or callable pickradius: unknown rasterized: bool sizes: ndarray or None sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str urls: list of str or None verts: list of array-like verts_and_codes: unknown visible: bool zorder: float

barh(y, width, height=0.8, left=None, *, align='center', data=None, **kwargs)¶

Make a horizontal bar plot.

The bars are positioned at y with the given alignment. Their dimensions are given by width and height. The horizontal baseline is left (default 0).

Many parameters can take either a single value applying to all bars or a sequence of values, one for each bar.

Parameters¶

yfloat or array-like

The y coordinates of the bars. See also align for the alignment of the bars to the coordinates.

widthfloat or array-like

The width(s) of the bars.

heightfloat or array-like, default: 0.8

The heights of the bars.

leftfloat or array-like, default: 0

The x coordinates of the left side(s) of the bars.

align{‘center’, ‘edge’}, default: ‘center’

Alignment of the base to the y coordinates*:

‘center’: Center the bars on the y positions.
‘edge’: Align the bottom edges of the bars with the y positions.

To align the bars on the top edge pass a negative height and align='edge'.

Returns¶

.BarContainer: Container with all the bars and optionally errorbars.

Other Parameters¶

colorcolor or list of color, optional

The colors of the bar faces.

edgecolorcolor or list of color, optional

The colors of the bar edges.

linewidthfloat or array-like, optional

Width of the bar edge(s). If 0, don’t draw edges.

tick_labelstr or list of str, optional

The tick labels of the bars. Default: None (Use default numeric labels.)

labelstr or list of str, optional

A single label is attached to the resulting .BarContainer as a label for the whole dataset. If a list is provided, it must be the same length as y and labels the individual bars. Repeated labels are not de-duplicated and will cause repeated label entries, so this is best used when bars also differ in style (e.g., by passing a list to color.)

xerr, yerrfloat or array-like of shape(N,) or shape(2, N), optional

If not None, add horizontal / vertical errorbars to the bar tips. The values are +/- sizes relative to the data:

scalar: symmetric +/- values for all bars
shape(N,): symmetric +/- values for each bar
shape(2, N): Separate - and + values for each bar. First row contains the lower errors, the second row contains the upper errors.
None: No errorbar. (default)

See /gallery/statistics/errorbar_features for an example on the usage of xerr and yerr.

ecolorcolor or list of color, default: ‘black’

The line color of the errorbars.

capsizefloat, default: :rc:`errorbar.capsize`

The length of the error bar caps in points.

error_kwdict, optional

Dictionary of keyword arguments to be passed to the ~.Axes.errorbar method. Values of ecolor or capsize defined here take precedence over the independent keyword arguments.

logbool, default: False

If True, set the x-axis to be log scale.

dataindexable object, optional

If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).

**kwargs : .Rectangle properties

Properties:: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None angle: unknown animated: bool antialiased or aa: bool or None bounds: (left, bottom, width, height) capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color: color edgecolor or ec: color or None facecolor or fc: color or None figure: .Figure fill: bool gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} height: unknown in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float or None mouseover: bool path_effects: .AbstractPathEffect picker: None or bool or float or callable rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str visible: bool width: unknown x: unknown xy: (float, float) y: unknown zorder: float

Notes¶

Stacked bars can be achieved by passing individual left values per bar. See /gallery/lines_bars_and_markers/horizontal_barchart_distribution.

boxplot(x, notch=None, sym=None, vert=None, whis=None, positions=None, widths=None, patch_artist=None, bootstrap=None, usermedians=None, conf_intervals=None, meanline=None, showmeans=None, showcaps=None, showbox=None, showfliers=None, boxprops=None, labels=None, flierprops=None, medianprops=None, meanprops=None, capprops=None, whiskerprops=None, manage_ticks=True, autorange=False, zorder=None, capwidths=None, *, data=None)¶

Draw a box and whisker plot.

The box extends from the first quartile (Q1) to the third quartile (Q3) of the data, with a line at the median. The whiskers extend from the box by 1.5x the inter-quartile range (IQR). Flier points are those past the end of the whiskers. See https://en.wikipedia.org/wiki/Box_plot for reference.

     Q1-1.5IQR   Q1   median  Q3   Q3+1.5IQR
                  |-----:-----|
  o      |--------|     :     |--------|    o  o
                  |-----:-----|
flier             <----------->            fliers
                       IQR

Parameters¶

xArray or a sequence of vectors.

The input data. If a 2D array, a boxplot is drawn for each column in x. If a sequence of 1D arrays, a boxplot is drawn for each array in x.

notchbool, default: False

Whether to draw a notched boxplot (True), or a rectangular boxplot (False). The notches represent the confidence interval (CI) around the median. The documentation for bootstrap describes how the locations of the notches are computed by default, but their locations may also be overridden by setting the conf_intervals parameter.

Note

In cases where the values of the CI are less than the lower quartile or greater than the upper quartile, the notches will extend beyond the box, giving it a distinctive “flipped” appearance. This is expected behavior and consistent with other statistical visualization packages.

symstr, optional

The default symbol for flier points. An empty string (‘’) hides the fliers. If None, then the fliers default to ‘b+’. More control is provided by the flierprops parameter.

vertbool, default: True

If True, draws vertical boxes. If False, draw horizontal boxes.

whisfloat or (float, float), default: 1.5

The position of the whiskers.

If a float, the lower whisker is at the lowest datum above Q1 - whis*(Q3-Q1), and the upper whisker at the highest datum below Q3 + whis*(Q3-Q1), where Q1 and Q3 are the first and third quartiles. The default value of whis = 1.5 corresponds to Tukey’s original definition of boxplots.

If a pair of floats, they indicate the percentiles at which to draw the whiskers (e.g., (5, 95)). In particular, setting this to (0, 100) results in whiskers covering the whole range of the data.

In the edge case where Q1 == Q3, whis is automatically set to (0, 100) (cover the whole range of the data) if autorange is True.

Beyond the whiskers, data are considered outliers and are plotted as individual points.

bootstrapint, optional

Specifies whether to bootstrap the confidence intervals around the median for notched boxplots. If bootstrap is None, no bootstrapping is performed, and notches are calculated using a Gaussian-based asymptotic approximation (see McGill, R., Tukey, J.W., and Larsen, W.A., 1978, and Kendall and Stuart, 1967). Otherwise, bootstrap specifies the number of times to bootstrap the median to determine its 95% confidence intervals. Values between 1000 and 10000 are recommended.

usermedians1D array-like, optional

A 1D array-like of length len(x). Each entry that is not None forces the value of the median for the corresponding dataset. For entries that are None, the medians are computed by Matplotlib as normal.

conf_intervalsarray-like, optional

A 2D array-like of shape (len(x), 2). Each entry that is not None forces the location of the corresponding notch (which is only drawn if notch is True). For entries that are None, the notches are computed by the method specified by the other parameters (e.g., bootstrap).

positionsarray-like, optional

The positions of the boxes. The ticks and limits are automatically set to match the positions. Defaults to range(1, N+1) where N is the number of boxes to be drawn.

widthsfloat or array-like

The widths of the boxes. The default is 0.5, or 0.15*(distance between extreme positions), if that is smaller.

patch_artistbool, default: False

If False produces boxes with the Line2D artist. Otherwise, boxes are drawn with Patch artists.

labelssequence, optional

Labels for each dataset (one per dataset).

manage_ticksbool, default: True

If True, the tick locations and labels will be adjusted to match the boxplot positions.

autorangebool, default: False

When True and the data are distributed such that the 25th and 75th percentiles are equal, whis is set to (0, 100) such that the whisker ends are at the minimum and maximum of the data.

meanlinebool, default: False

If True (and showmeans is True), will try to render the mean as a line spanning the full width of the box according to meanprops (see below). Not recommended if shownotches is also True. Otherwise, means will be shown as points.

zorderfloat, default: Line2D.zorder = 2

The zorder of the boxplot.

Returns¶

dict

A dictionary mapping each component of the boxplot to a list of the .Line2D instances created. That dictionary has the following keys (assuming vertical boxplots):

boxes: the main body of the boxplot showing the quartiles and the median’s confidence intervals if enabled.
medians: horizontal lines at the median of each box.
whiskers: the vertical lines extending to the most extreme, non-outlier data points.
caps: the horizontal lines at the ends of the whiskers.
fliers: points representing data that extend beyond the whiskers (fliers).
means: points or lines representing the means.

Other Parameters¶

showcapsbool, default: True: Show the caps on the ends of whiskers.
showboxbool, default: True: Show the central box.
showfliersbool, default: True: Show the outliers beyond the caps.
showmeansbool, default: False: Show the arithmetic means.
cappropsdict, default: None: The style of the caps.
capwidthsfloat or array, default: None: The widths of the caps.
boxpropsdict, default: None: The style of the box.
whiskerpropsdict, default: None: The style of the whiskers.
flierpropsdict, default: None: The style of the fliers.
medianpropsdict, default: None: The style of the median.
meanpropsdict, default: None: The style of the mean.
dataindexable object, optional: If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).

Parameters¶

xrangessequence of tuples (xmin, xwidth): The x-positions and extends of the rectangles. For each tuple (xmin, xwidth) a rectangle is drawn from xmin to xmin + xwidth.
yrange(ymin, yheight): The y-position and extend for all the rectangles.

Returns¶

~.collections.BrokenBarHCollection

Other Parameters¶

dataindexable object, optional: If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).

**kwargs : .BrokenBarHCollection properties

Each kwarg can be either a single argument applying to all rectangles, e.g.:
facecolors='black'
or a sequence of arguments over which is cycled, e.g.:
facecolors=('black', 'blue')
would create interleaving black and blue rectangles.

Supported keywords:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: array-like or scalar or None animated: bool antialiased or aa or antialiaseds: bool or list of bools array: array-like or None capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clim: (vmin: float, vmax: float) clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None cmap: .Colormap or str or None color: color or list of rgba tuples edgecolor or ec or edgecolors: color or list of colors or ‘face’ facecolor or facecolors or fc: color or list of colors figure: .Figure gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or dashes or linestyles or ls: str or tuple or list thereof linewidth or linewidths or lw: float or list of floats mouseover: bool norm: .Normalize or str or None offset_transform or transOffset: unknown offsets: (N, 2) or (2,) array-like path_effects: .AbstractPathEffect paths: list of array-like picker: None or bool or float or callable pickradius: unknown rasterized: bool sizes: ndarray or None sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str urls: list of str or None verts: list of array-like verts_and_codes: unknown visible: bool zorder: float

bxp(bxpstats, positions=None, widths=None, vert=True, patch_artist=False, shownotches=False, showmeans=False, showcaps=True, showbox=True, showfliers=True, boxprops=None, whiskerprops=None, flierprops=None, medianprops=None, capprops=None, meanprops=None, meanline=False, manage_ticks=True, zorder=None, capwidths=None)¶

Drawing function for box and whisker plots.

Make a box and whisker plot for each column of x or each vector in sequence x. The box extends from the lower to upper quartile values of the data, with a line at the median. The whiskers extend from the box to show the range of the data. Flier points are those past the end of the whiskers.

Parameters¶

bxpstatslist of dicts

A list of dictionaries containing stats for each boxplot. Required keys are:

med: Median (scalar).
q1, q3: First & third quartiles (scalars).
whislo, whishi: Lower & upper whisker positions (scalars).

Optional keys are:

mean: Mean (scalar). Needed if showmeans=True.
fliers: Data beyond the whiskers (array-like). Needed if showfliers=True.
cilo, cihi: Lower & upper confidence intervals about the median. Needed if shownotches=True.
label: Name of the dataset (str). If available, this will be used a tick label for the boxplot

positionsarray-like, default: [1, 2, …, n]

The positions of the boxes. The ticks and limits are automatically set to match the positions.

widthsfloat or array-like, default: None

The widths of the boxes. The default is clip(0.15*(distance between extreme positions), 0.15, 0.5).

capwidthsfloat or array-like, default: None

Either a scalar or a vector and sets the width of each cap. The default is 0.5*(with of the box), see widths.

vertbool, default: True

If True (default), makes the boxes vertical. If False, makes horizontal boxes.

patch_artistbool, default: False

If False produces boxes with the .Line2D artist. If True produces boxes with the ~matplotlib.patches.Patch artist.

shownotches, showmeans, showcaps, showbox, showfliersbool

Whether to draw the CI notches, the mean value (both default to False), the caps, the box, and the fliers (all three default to True).

boxprops, whiskerprops, capprops, flierprops, medianprops, meanpropsdict, optional

Artist properties for the boxes, whiskers, caps, fliers, medians, and means.

meanlinebool, default: False

If True (and showmeans is True), will try to render the mean as a line spanning the full width of the box according to meanprops. Not recommended if shownotches is also True. Otherwise, means will be shown as points.

manage_ticksbool, default: True

If True, the tick locations and labels will be adjusted to match the boxplot positions.

zorderfloat, default: Line2D.zorder = 2

The zorder of the resulting boxplot.

Returns¶

dict

A dictionary mapping each component of the boxplot to a list of the .Line2D instances created. That dictionary has the following keys (assuming vertical boxplots):

boxes: main bodies of the boxplot showing the quartiles, and the median’s confidence intervals if enabled.
medians: horizontal lines at the median of each box.
whiskers: vertical lines up to the last non-outlier data.
caps: horizontal lines at the ends of the whiskers.
fliers: points representing data beyond the whiskers (fliers).
means: points or lines representing the means.

Examples¶

can_pan()[source]¶

Return whether this axes supports the pan/zoom button functionality.

For polar axes, this is slightly misleading. Both panning and zooming are performed by the same button. Panning is performed in azimuth while zooming is done along the radial.

can_zoom()[source]¶

Return whether this axes supports the zoom box button functionality.

Polar axes do not support zoom boxes.

cla()¶: Clear the Axes.

clabel(CS, levels=None, **kwargs)¶

Label a contour plot.

Adds labels to line contours in given .ContourSet.

Parameters¶

CS.ContourSet instance: Line contours to label.
levelsarray-like, optional: A list of level values, that should be labeled. The list must be a subset of CS.levels. If not given, all levels are labeled.
**kwargs: All other parameters are documented in ~.ContourLabeler.clabel.

clear()[source]¶: Clear the Axes.

cohere(x, y, NFFT=256, Fs=2, Fc=0, detrend=<function detrend_none>, window=<function window_hanning>, noverlap=0, pad_to=None, sides='default', scale_by_freq=None, *, data=None, **kwargs)¶

Plot the coherence between x and y.

Coherence is the normalized cross spectral density:

\[C_{xy} = \frac{|P_{xy}|^2}{P_{xx}P_{yy}}\]

Parameters¶

Fsfloat, default: 2: The sampling frequency (samples per time unit). It is used to calculate the Fourier frequencies, freqs, in cycles per time unit.
windowcallable or ndarray, default: .window_hanning: A function or a vector of length NFFT. To create window vectors see .window_hanning, .window_none, numpy.blackman, numpy.hamming, numpy.bartlett, scipy.signal, scipy.signal.get_window, etc. If a function is passed as the argument, it must take a data segment as an argument and return the windowed version of the segment.
sides{‘default’, ‘onesided’, ‘twosided’}, optional: Which sides of the spectrum to return. ‘default’ is one-sided for real data and two-sided for complex data. ‘onesided’ forces the return of a one-sided spectrum, while ‘twosided’ forces two-sided.
pad_toint, optional: The number of points to which the data segment is padded when performing the FFT. This can be different from NFFT, which specifies the number of data points used. While not increasing the actual resolution of the spectrum (the minimum distance between resolvable peaks), this can give more points in the plot, allowing for more detail. This corresponds to the n parameter in the call to ~numpy.fft.fft. The default is None, which sets pad_to equal to NFFT
NFFTint, default: 256: The number of data points used in each block for the FFT. A power 2 is most efficient. This should NOT be used to get zero padding, or the scaling of the result will be incorrect; use pad_to for this instead.
detrend{‘none’, ‘mean’, ‘linear’} or callable, default: ‘none’: The function applied to each segment before fft-ing, designed to remove the mean or linear trend. Unlike in MATLAB, where the detrend parameter is a vector, in Matplotlib it is a function. The mlab module defines .detrend_none, .detrend_mean, and .detrend_linear, but you can use a custom function as well. You can also use a string to choose one of the functions: ‘none’ calls .detrend_none. ‘mean’ calls .detrend_mean. ‘linear’ calls .detrend_linear.
scale_by_freqbool, default: True: Whether the resulting density values should be scaled by the scaling frequency, which gives density in units of 1/Hz. This allows for integration over the returned frequency values. The default is True for MATLAB compatibility.
noverlapint, default: 0 (no overlap): The number of points of overlap between blocks.
Fcint, default: 0: The center frequency of x, which offsets the x extents of the plot to reflect the frequency range used when a signal is acquired and then filtered and downsampled to baseband.

Returns¶

Cxy1-D array: The coherence vector.
freqs1-D array: The frequencies for the elements in Cxy.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, y

**kwargs

Keyword arguments control the .Line2D properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

References¶

Bendat & Piersol – Random Data: Analysis and Measurement Procedures, John Wiley & Sons (1986)

contains(mouseevent)¶

Test whether the artist contains the mouse event.

Parameters¶

mouseevent : matplotlib.backend_bases.MouseEvent

Returns¶

containsbool: Whether any values are within the radius.
detailsdict: An artist-specific dictionary of details of the event context, such as which points are contained in the pick radius. See the individual Artist subclasses for details.

contains_point(point)¶: Return whether point (pair of pixel coordinates) is inside the Axes patch.

contour(*args, data=None, **kwargs)¶

Plot contour lines.

Call signature:

contour([X, Y,] Z, [levels], **kwargs)

.contour and .contourf draw contour lines and filled contours, respectively. Except as noted, function signatures and return values are the same for both versions.

Parameters¶

X, Yarray-like, optional

The coordinates of the values in Z.

X and Y must both be 2D with the same shape as Z (e.g. created via numpy.meshgrid), or they must both be 1-D such that len(X) == N is the number of columns in Z and len(Y) == M is the number of rows in Z.

X and Y must both be ordered monotonically.

If not given, they are assumed to be integer indices, i.e. X = range(N), Y = range(M).

Z(M, N) array-like

The height values over which the contour is drawn. Color-mapping is controlled by cmap, norm, vmin, and vmax.

levelsint or array-like, optional

Determines the number and positions of the contour lines / regions.

If an int n, use ~matplotlib.ticker.MaxNLocator, which tries to automatically choose no more than n+1 “nice” contour levels between minimum and maximum numeric values of Z.

If array-like, draw contour lines at the specified levels. The values must be in increasing order.

Returns¶

~.contour.QuadContourSet

Other Parameters¶

corner_maskbool, default: :rc:`contour.corner_mask`

Enable/disable corner masking, which only has an effect if Z is a masked array. If False, any quad touching a masked point is masked out. If True, only the triangular corners of quads nearest those points are always masked out, other triangular corners comprising three unmasked points are contoured as usual.

colorscolor string or sequence of colors, optional

The colors of the levels, i.e. the lines for .contour and the areas for .contourf.

The sequence is cycled for the levels in ascending order. If the sequence is shorter than the number of levels, it’s repeated.

As a shortcut, single color strings may be used in place of one-element lists, i.e. 'red' instead of ['red'] to color all levels with the same color. This shortcut does only work for color strings, not for other ways of specifying colors.

By default (value None), the colormap specified by cmap will be used.

alphafloat, default: 1

The alpha blending value, between 0 (transparent) and 1 (opaque).

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

This parameter is ignored if colors is set.

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

This parameter is ignored if colors is set.

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

If vmin or vmax are not given, the default color scaling is based on levels.

This parameter is ignored if colors is set.

origin{None, ‘upper’, ‘lower’, ‘image’}, default: None

Determines the orientation and exact position of Z by specifying the position of Z[0, 0]. This is only relevant, if X, Y are not given.

None: Z[0, 0] is at X=0, Y=0 in the lower left corner.
‘lower’: Z[0, 0] is at X=0.5, Y=0.5 in the lower left corner.
‘upper’: Z[0, 0] is at X=N+0.5, Y=0.5 in the upper left corner.
‘image’: Use the value from :rc:`image.origin`.

extent(x0, x1, y0, y1), optional

If origin is not None, then extent is interpreted as in .imshow: it gives the outer pixel boundaries. In this case, the position of Z[0, 0] is the center of the pixel, not a corner. If origin is None, then (x0, y0) is the position of Z[0, 0], and (x1, y1) is the position of Z[-1, -1].

This argument is ignored if X and Y are specified in the call to contour.

locatorticker.Locator subclass, optional

The locator is used to determine the contour levels if they are not given explicitly via levels. Defaults to ~.ticker.MaxNLocator.

extend{‘neither’, ‘both’, ‘min’, ‘max’}, default: ‘neither’

Determines the contourf-coloring of values that are outside the levels range.

If ‘neither’, values outside the levels range are not colored. If ‘min’, ‘max’ or ‘both’, color the values below, above or below and above the levels range.

Values below min(levels) and above max(levels) are mapped to the under/over values of the .Colormap. Note that most colormaps do not have dedicated colors for these by default, so that the over and under values are the edge values of the colormap. You may want to set these values explicitly using .Colormap.set_under and .Colormap.set_over.

Note

An existing .QuadContourSet does not get notified if properties of its colormap are changed. Therefore, an explicit call .QuadContourSet.changed() is needed after modifying the colormap. The explicit call can be left out, if a colorbar is assigned to the .QuadContourSet because it internally calls .QuadContourSet.changed().

Example:

x = np.arange(1, 10)
y = x.reshape(-1, 1)
h = x * y

cs = plt.contourf(h, levels=[10, 30, 50],
    colors=['#808080', '#A0A0A0', '#C0C0C0'], extend='both')
cs.cmap.set_over('red')
cs.cmap.set_under('blue')
cs.changed()

xunits, yunitsregistered units, optional

Override axis units by specifying an instance of a matplotlib.units.ConversionInterface.

antialiasedbool, optional

Enable antialiasing, overriding the defaults. For filled contours, the default is True. For line contours, it is taken from :rc:`lines.antialiased`.

nchunkint >= 0, optional

If 0, no subdivision of the domain. Specify a positive integer to divide the domain into subdomains of nchunk by nchunk quads. Chunking reduces the maximum length of polygons generated by the contouring algorithm which reduces the rendering workload passed on to the backend and also requires slightly less RAM. It can however introduce rendering artifacts at chunk boundaries depending on the backend, the antialiased flag and value of alpha.

linewidthsfloat or array-like, default: :rc:`contour.linewidth`

Only applies to .contour.

The line width of the contour lines.

If a number, all levels will be plotted with this linewidth.

If a sequence, the levels in ascending order will be plotted with the linewidths in the order specified.

If None, this falls back to :rc:`lines.linewidth`.

linestyles{None, ‘solid’, ‘dashed’, ‘dashdot’, ‘dotted’}, optional

Only applies to .contour.

If linestyles is None, the default is ‘solid’ unless the lines are monochrome. In that case, negative contours will instead take their linestyle from the negative_linestyles argument.

linestyles can also be an iterable of the above strings specifying a set of linestyles to be used. If this iterable is shorter than the number of contour levels it will be repeated as necessary.

negative_linestyles{None, ‘solid’, ‘dashed’, ‘dashdot’, ‘dotted’}, optional

Only applies to .contour.

If linestyles is None and the lines are monochrome, this argument specifies the line style for negative contours.

If negative_linestyles is None, the default is taken from :rc:`contour.negative_linestyles`.

negative_linestyles can also be an iterable of the above strings specifying a set of linestyles to be used. If this iterable is shorter than the number of contour levels it will be repeated as necessary.

hatcheslist[str], optional

Only applies to .contourf.

A list of cross hatch patterns to use on the filled areas. If None, no hatching will be added to the contour. Hatching is supported in the PostScript, PDF, SVG and Agg backends only.

algorithm{‘mpl2005’, ‘mpl2014’, ‘serial’, ‘threaded’}, optional

Which contouring algorithm to use to calculate the contour lines and polygons. The algorithms are implemented in ContourPy, consult the ContourPy documentation for further information.

The default is taken from :rc:`contour.algorithm`.

dataindexable object, optional

If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).

Notes¶

.contourf differs from the MATLAB version in that it does not draw the polygon edges. To draw edges, add line contours with calls to .contour.
.contourf fills intervals that are closed at the top; that is, for boundaries z1 and z2, the filled region is:
```
z1 < Z <= z2
```
except for the lowest interval, which is closed on both sides (i.e. it includes the lowest value).
.contour and .contourf use a marching squares algorithm to compute contour locations. More information can be found in ContourPy documentation.

contourf(*args, data=None, **kwargs)¶

Plot filled contours.

Call signature:

contourf([X, Y,] Z, [levels], **kwargs)

.contour and .contourf draw contour lines and filled contours, respectively. Except as noted, function signatures and return values are the same for both versions.

Parameters¶

X, Yarray-like, optional

The coordinates of the values in Z.

X and Y must both be 2D with the same shape as Z (e.g. created via numpy.meshgrid), or they must both be 1-D such that len(X) == N is the number of columns in Z and len(Y) == M is the number of rows in Z.

X and Y must both be ordered monotonically.

If not given, they are assumed to be integer indices, i.e. X = range(N), Y = range(M).

Z(M, N) array-like

The height values over which the contour is drawn. Color-mapping is controlled by cmap, norm, vmin, and vmax.

levelsint or array-like, optional

Determines the number and positions of the contour lines / regions.

If an int n, use ~matplotlib.ticker.MaxNLocator, which tries to automatically choose no more than n+1 “nice” contour levels between minimum and maximum numeric values of Z.

If array-like, draw contour lines at the specified levels. The values must be in increasing order.

Returns¶

~.contour.QuadContourSet

Other Parameters¶

corner_maskbool, default: :rc:`contour.corner_mask`

Enable/disable corner masking, which only has an effect if Z is a masked array. If False, any quad touching a masked point is masked out. If True, only the triangular corners of quads nearest those points are always masked out, other triangular corners comprising three unmasked points are contoured as usual.

colorscolor string or sequence of colors, optional

The colors of the levels, i.e. the lines for .contour and the areas for .contourf.

The sequence is cycled for the levels in ascending order. If the sequence is shorter than the number of levels, it’s repeated.

As a shortcut, single color strings may be used in place of one-element lists, i.e. 'red' instead of ['red'] to color all levels with the same color. This shortcut does only work for color strings, not for other ways of specifying colors.

By default (value None), the colormap specified by cmap will be used.

alphafloat, default: 1

The alpha blending value, between 0 (transparent) and 1 (opaque).

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

This parameter is ignored if colors is set.

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

This parameter is ignored if colors is set.

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

If vmin or vmax are not given, the default color scaling is based on levels.

This parameter is ignored if colors is set.

origin{None, ‘upper’, ‘lower’, ‘image’}, default: None

Determines the orientation and exact position of Z by specifying the position of Z[0, 0]. This is only relevant, if X, Y are not given.

None: Z[0, 0] is at X=0, Y=0 in the lower left corner.
‘lower’: Z[0, 0] is at X=0.5, Y=0.5 in the lower left corner.
‘upper’: Z[0, 0] is at X=N+0.5, Y=0.5 in the upper left corner.
‘image’: Use the value from :rc:`image.origin`.

extent(x0, x1, y0, y1), optional

If origin is not None, then extent is interpreted as in .imshow: it gives the outer pixel boundaries. In this case, the position of Z[0, 0] is the center of the pixel, not a corner. If origin is None, then (x0, y0) is the position of Z[0, 0], and (x1, y1) is the position of Z[-1, -1].

This argument is ignored if X and Y are specified in the call to contour.

locatorticker.Locator subclass, optional

The locator is used to determine the contour levels if they are not given explicitly via levels. Defaults to ~.ticker.MaxNLocator.

extend{‘neither’, ‘both’, ‘min’, ‘max’}, default: ‘neither’

Determines the contourf-coloring of values that are outside the levels range.

If ‘neither’, values outside the levels range are not colored. If ‘min’, ‘max’ or ‘both’, color the values below, above or below and above the levels range.

Values below min(levels) and above max(levels) are mapped to the under/over values of the .Colormap. Note that most colormaps do not have dedicated colors for these by default, so that the over and under values are the edge values of the colormap. You may want to set these values explicitly using .Colormap.set_under and .Colormap.set_over.

Note

An existing .QuadContourSet does not get notified if properties of its colormap are changed. Therefore, an explicit call .QuadContourSet.changed() is needed after modifying the colormap. The explicit call can be left out, if a colorbar is assigned to the .QuadContourSet because it internally calls .QuadContourSet.changed().

Example:

x = np.arange(1, 10)
y = x.reshape(-1, 1)
h = x * y

cs = plt.contourf(h, levels=[10, 30, 50],
    colors=['#808080', '#A0A0A0', '#C0C0C0'], extend='both')
cs.cmap.set_over('red')
cs.cmap.set_under('blue')
cs.changed()

xunits, yunitsregistered units, optional

Override axis units by specifying an instance of a matplotlib.units.ConversionInterface.

antialiasedbool, optional

Enable antialiasing, overriding the defaults. For filled contours, the default is True. For line contours, it is taken from :rc:`lines.antialiased`.

nchunkint >= 0, optional

If 0, no subdivision of the domain. Specify a positive integer to divide the domain into subdomains of nchunk by nchunk quads. Chunking reduces the maximum length of polygons generated by the contouring algorithm which reduces the rendering workload passed on to the backend and also requires slightly less RAM. It can however introduce rendering artifacts at chunk boundaries depending on the backend, the antialiased flag and value of alpha.

linewidthsfloat or array-like, default: :rc:`contour.linewidth`

Only applies to .contour.

The line width of the contour lines.

If a number, all levels will be plotted with this linewidth.

If a sequence, the levels in ascending order will be plotted with the linewidths in the order specified.

If None, this falls back to :rc:`lines.linewidth`.

linestyles{None, ‘solid’, ‘dashed’, ‘dashdot’, ‘dotted’}, optional

Only applies to .contour.

If linestyles is None, the default is ‘solid’ unless the lines are monochrome. In that case, negative contours will instead take their linestyle from the negative_linestyles argument.

linestyles can also be an iterable of the above strings specifying a set of linestyles to be used. If this iterable is shorter than the number of contour levels it will be repeated as necessary.

negative_linestyles{None, ‘solid’, ‘dashed’, ‘dashdot’, ‘dotted’}, optional

Only applies to .contour.

If linestyles is None and the lines are monochrome, this argument specifies the line style for negative contours.

If negative_linestyles is None, the default is taken from :rc:`contour.negative_linestyles`.

negative_linestyles can also be an iterable of the above strings specifying a set of linestyles to be used. If this iterable is shorter than the number of contour levels it will be repeated as necessary.

hatcheslist[str], optional

Only applies to .contourf.

A list of cross hatch patterns to use on the filled areas. If None, no hatching will be added to the contour. Hatching is supported in the PostScript, PDF, SVG and Agg backends only.

algorithm{‘mpl2005’, ‘mpl2014’, ‘serial’, ‘threaded’}, optional

Which contouring algorithm to use to calculate the contour lines and polygons. The algorithms are implemented in ContourPy, consult the ContourPy documentation for further information.

The default is taken from :rc:`contour.algorithm`.

dataindexable object, optional

If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).

Notes¶

.contourf differs from the MATLAB version in that it does not draw the polygon edges. To draw edges, add line contours with calls to .contour.
.contourf fills intervals that are closed at the top; that is, for boundaries z1 and z2, the filled region is:
```
z1 < Z <= z2
```
except for the lowest interval, which is closed on both sides (i.e. it includes the lowest value).
.contour and .contourf use a marching squares algorithm to compute contour locations. More information can be found in ContourPy documentation.

convert_xunits(x)¶

Convert x using the unit type of the xaxis.

If the artist is not contained in an Axes or if the xaxis does not have units, x itself is returned.

convert_yunits(y)¶

Convert y using the unit type of the yaxis.

If the artist is not contained in an Axes or if the yaxis does not have units, y itself is returned.

csd(x, y, NFFT=None, Fs=None, Fc=None, detrend=None, window=None, noverlap=None, pad_to=None, sides=None, scale_by_freq=None, return_line=None, *, data=None, **kwargs)¶

Plot the cross-spectral density.

The cross spectral density \(P_{xy}\) by Welch’s average periodogram method. The vectors x and y are divided into NFFT length segments. Each segment is detrended by function detrend and windowed by function window. noverlap gives the length of the overlap between segments. The product of the direct FFTs of x and y are averaged over each segment to compute \(P_{xy}\), with a scaling to correct for power loss due to windowing.

If len(x) < NFFT or len(y) < NFFT, they will be zero padded to NFFT.

Parameters¶

x, y1-D arrays or sequences: Arrays or sequences containing the data.
Fsfloat, default: 2: The sampling frequency (samples per time unit). It is used to calculate the Fourier frequencies, freqs, in cycles per time unit.
windowcallable or ndarray, default: .window_hanning: A function or a vector of length NFFT. To create window vectors see .window_hanning, .window_none, numpy.blackman, numpy.hamming, numpy.bartlett, scipy.signal, scipy.signal.get_window, etc. If a function is passed as the argument, it must take a data segment as an argument and return the windowed version of the segment.
sides{‘default’, ‘onesided’, ‘twosided’}, optional: Which sides of the spectrum to return. ‘default’ is one-sided for real data and two-sided for complex data. ‘onesided’ forces the return of a one-sided spectrum, while ‘twosided’ forces two-sided.
pad_toint, optional: The number of points to which the data segment is padded when performing the FFT. This can be different from NFFT, which specifies the number of data points used. While not increasing the actual resolution of the spectrum (the minimum distance between resolvable peaks), this can give more points in the plot, allowing for more detail. This corresponds to the n parameter in the call to ~numpy.fft.fft. The default is None, which sets pad_to equal to NFFT
NFFTint, default: 256: The number of data points used in each block for the FFT. A power 2 is most efficient. This should NOT be used to get zero padding, or the scaling of the result will be incorrect; use pad_to for this instead.
detrend{‘none’, ‘mean’, ‘linear’} or callable, default: ‘none’: The function applied to each segment before fft-ing, designed to remove the mean or linear trend. Unlike in MATLAB, where the detrend parameter is a vector, in Matplotlib it is a function. The mlab module defines .detrend_none, .detrend_mean, and .detrend_linear, but you can use a custom function as well. You can also use a string to choose one of the functions: ‘none’ calls .detrend_none. ‘mean’ calls .detrend_mean. ‘linear’ calls .detrend_linear.
scale_by_freqbool, default: True: Whether the resulting density values should be scaled by the scaling frequency, which gives density in units of 1/Hz. This allows for integration over the returned frequency values. The default is True for MATLAB compatibility.
noverlapint, default: 0 (no overlap): The number of points of overlap between segments.
Fcint, default: 0: The center frequency of x, which offsets the x extents of the plot to reflect the frequency range used when a signal is acquired and then filtered and downsampled to baseband.
return_linebool, default: False: Whether to include the line object plotted in the returned values.

Returns¶

Pxy1-D array: The values for the cross spectrum \(P_{xy}\) before scaling (complex valued).
freqs1-D array: The frequencies corresponding to the elements in Pxy.
line~matplotlib.lines.Line2D: The line created by this function. Only returned if return_line is True.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, y

**kwargs

Keyword arguments control the .Line2D properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Notes¶

For plotting, the power is plotted as \(10 \log_{10}(P_{xy})\) for decibels, though \(P_{xy}\) itself is returned.

References¶

Bendat & Piersol – Random Data: Analysis and Measurement Procedures, John Wiley & Sons (1986)

drag_pan(button, key, x, y)[source]¶

Called when the mouse moves during a pan operation.

Parameters¶

button.MouseButton: The pressed mouse button.
keystr or None: The pressed key, if any.
x, yfloat: The mouse coordinates in display coords.

Notes¶

This is intended to be overridden by new projection types.

draw(renderer)[source]¶

Draw the Artist (and its children) using the given renderer.

This has no effect if the artist is not visible (.Artist.get_visible returns False).

Parameters¶

renderer : .RendererBase subclass.

Notes¶

This method is overridden in the Artist subclasses.

draw_artist(a)¶: Efficiently redraw a single artist.

end_pan()[source]¶: Called when a pan operation completes (when the mouse button is up.)

Notes¶

This is intended to be overridden by new projection types.

errorbar(x, y, yerr=None, xerr=None, fmt='', ecolor=None, elinewidth=None, capsize=None, barsabove=False, lolims=False, uplims=False, xlolims=False, xuplims=False, errorevery=1, capthick=None, *, data=None, **kwargs)¶

Plot y versus x as lines and/or markers with attached errorbars.

x, y define the data locations, xerr, yerr define the errorbar sizes. By default, this draws the data markers/lines as well the errorbars. Use fmt=’none’ to draw errorbars without any data markers.

Parameters¶

x, yfloat or array-like

The data positions.

xerr, yerrfloat or array-like, shape(N,) or shape(2, N), optional

The errorbar sizes:

scalar: Symmetric +/- values for all data points.
shape(N,): Symmetric +/-values for each data point.
shape(2, N): Separate - and + values for each bar. First row contains the lower errors, the second row contains the upper errors.
None: No errorbar.

All values must be >= 0.

See /gallery/statistics/errorbar_features for an example on the usage of xerr and yerr.

fmtstr, default: ‘’

The format for the data points / data lines. See .plot for details.

Use ‘none’ (case insensitive) to plot errorbars without any data markers.

ecolorcolor, default: None

The color of the errorbar lines. If None, use the color of the line connecting the markers.

elinewidthfloat, default: None

The linewidth of the errorbar lines. If None, the linewidth of the current style is used.

capsizefloat, default: :rc:`errorbar.capsize`

The length of the error bar caps in points.

capthickfloat, default: None

An alias to the keyword argument markeredgewidth (a.k.a. mew). This setting is a more sensible name for the property that controls the thickness of the error bar cap in points. For backwards compatibility, if mew or markeredgewidth are given, then they will over-ride capthick. This may change in future releases.

barsabovebool, default: False

If True, will plot the errorbars above the plot symbols. Default is below.

lolims, uplims, xlolims, xuplimsbool, default: False

These arguments can be used to indicate that a value gives only upper/lower limits. In that case a caret symbol is used to indicate this. lims-arguments may be scalars, or array-likes of the same length as xerr and yerr. To use limits with inverted axes, ~.Axes.set_xlim or ~.Axes.set_ylim must be called before errorbar(). Note the tricky parameter names: setting e.g. lolims to True means that the y-value is a lower limit of the True value, so, only an upward-pointing arrow will be drawn!

erroreveryint or (int, int), default: 1

draws error bars on a subset of the data. errorevery =N draws error bars on the points (x[::N], y[::N]). errorevery =(start, N) draws error bars on the points (x[start::N], y[start::N]). e.g. errorevery=(6, 3) adds error bars to the data at (x[6], x[9], x[12], x[15], …). Used to avoid overlapping error bars when two series share x-axis values.

Returns¶

.ErrorbarContainer

The container contains:

plotline: .Line2D instance of x, y plot markers and/or line.
caplines: A tuple of .Line2D instances of the error bar caps.
barlinecols: A tuple of .LineCollection with the horizontal and vertical error ranges.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, y, xerr, yerr

**kwargs

All other keyword arguments are passed on to the ~.Axes.plot call drawing the markers. For example, this code makes big red squares with thick green edges:

x, y, yerr = rand(3, 10)
errorbar(x, y, yerr, marker='s', mfc='red',
         mec='green', ms=20, mew=4)

where mfc, mec, ms and mew are aliases for the longer property names, markerfacecolor, markeredgecolor, markersize and markeredgewidth.

Valid kwargs for the marker properties are:

dashes
dash_capstyle
dash_joinstyle
drawstyle
fillstyle
linestyle
marker
markeredgecolor
markeredgewidth
markerfacecolor
markerfacecoloralt
markersize
markevery
solid_capstyle
solid_joinstyle

Refer to the corresponding .Line2D property for more details:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

eventplot(positions, orientation='horizontal', lineoffsets=1, linelengths=1, linewidths=None, colors=None, linestyles='solid', *, data=None, **kwargs)¶

Plot identical parallel lines at the given positions.

This type of plot is commonly used in neuroscience for representing neural events, where it is usually called a spike raster, dot raster, or raster plot.

However, it is useful in any situation where you wish to show the timing or position of multiple sets of discrete events, such as the arrival times of people to a business on each day of the month or the date of hurricanes each year of the last century.

Parameters¶

positionsarray-like or list of array-like

A 1D array-like defines the positions of one sequence of events.

Multiple groups of events may be passed as a list of array-likes. Each group can be styled independently by passing lists of values to lineoffsets, linelengths, linewidths, colors and linestyles.

Note that positions can be a 2D array, but in practice different event groups usually have different counts so that one will use a list of different-length arrays rather than a 2D array.

orientation{‘horizontal’, ‘vertical’}, default: ‘horizontal’

The direction of the event sequence:

‘horizontal’: the events are arranged horizontally. The indicator lines are vertical.
‘vertical’: the events are arranged vertically. The indicator lines are horizontal.

lineoffsetsfloat or array-like, default: 1

The offset of the center of the lines from the origin, in the direction orthogonal to orientation.

If positions is 2D, this can be a sequence with length matching the length of positions.

linelengthsfloat or array-like, default: 1

The total height of the lines (i.e. the lines stretches from lineoffset - linelength/2 to lineoffset + linelength/2).

If positions is 2D, this can be a sequence with length matching the length of positions.

linewidthsfloat or array-like, default: :rc:`lines.linewidth`

The line width(s) of the event lines, in points.

If positions is 2D, this can be a sequence with length matching the length of positions.

colorscolor or list of colors, default: :rc:`lines.color`

The color(s) of the event lines.

If positions is 2D, this can be a sequence with length matching the length of positions.

linestylesstr or tuple or list of such values, default: ‘solid’

Default is ‘solid’. Valid strings are [‘solid’, ‘dashed’, ‘dashdot’, ‘dotted’, ‘-’, ‘–’, ‘-.’, ‘:’]. Dash tuples should be of the form:

(offset, onoffseq),

where onoffseq is an even length tuple of on and off ink in points.

If positions is 2D, this can be a sequence with length matching the length of positions.

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

positions, lineoffsets, linelengths, linewidths, colors, linestyles

**kwargs

Other keyword arguments are line collection properties. See .LineCollection for a list of the valid properties.

Returns¶

list of .EventCollection: The .EventCollection that were added.

Notes¶

For linelengths, linewidths, colors, and linestyles, if only a single value is given, that value is applied to all lines. If an array-like is given, it must have the same length as positions, and each value will be applied to the corresponding row of the array.

Examples¶

fill(*args, data=None, **kwargs)¶

Plot filled polygons.

Parameters¶

*argssequence of x, y, [color]

Each polygon is defined by the lists of x and y positions of its nodes, optionally followed by a color specifier. See matplotlib.colors for supported color specifiers. The standard color cycle is used for polygons without a color specifier.

You can plot multiple polygons by providing multiple x, y, [color] groups.

For example, each of the following is legal:

ax.fill(x, y)                    # a polygon with default color
ax.fill(x, y, "b")               # a blue polygon
ax.fill(x, y, x2, y2)            # two polygons
ax.fill(x, y, "b", x2, y2, "r")  # a blue and a red polygon

dataindexable object, optional

An object with labelled data. If given, provide the label names to plot in x and y, e.g.:

ax.fill("time", "signal",
        data={"time": [0, 1, 2], "signal": [0, 1, 0]})

Returns¶

list of ~matplotlib.patches.Polygon

Other Parameters¶

**kwargs : ~matplotlib.patches.Polygon properties

Notes¶

Use fill_between() if you would like to fill the region between two curves.

fill_between(x, y1, y2=0, where=None, interpolate=False, step=None, *, data=None, **kwargs)¶

Fill the area between two horizontal curves.

The curves are defined by the points (x, y1) and (x, y2). This creates one or multiple polygons describing the filled area.

You may exclude some horizontal sections from filling using where.

By default, the edges connect the given points directly. Use step if the filling should be a step function, i.e. constant in between x.

Parameters¶

xarray (length N)

The x coordinates of the nodes defining the curves.

y1array (length N) or scalar

The y coordinates of the nodes defining the first curve.

y2array (length N) or scalar, default: 0

The y coordinates of the nodes defining the second curve.

wherearray of bool (length N), optional

Define where to exclude some horizontal regions from being filled. The filled regions are defined by the coordinates x[where]. More precisely, fill between x[i] and x[i+1] if where[i] and where[i+1]. Note that this definition implies that an isolated True value between two False values in where will not result in filling. Both sides of the True position remain unfilled due to the adjacent False values.

interpolatebool, default: False

This option is only relevant if where is used and the two curves are crossing each other.

Semantically, where is often used for y1 > y2 or similar. By default, the nodes of the polygon defining the filled region will only be placed at the positions in the x array. Such a polygon cannot describe the above semantics close to the intersection. The x-sections containing the intersection are simply clipped.

Setting interpolate to True will calculate the actual intersection point and extend the filled region up to this point.

step{‘pre’, ‘post’, ‘mid’}, optional

Define step if the filling should be a step function, i.e. constant in between x. The value determines where the step will occur:

‘pre’: The y value is continued constantly to the left from every x position, i.e. the interval (x[i-1], x[i]] has the value y[i].
‘post’: The y value is continued constantly to the right from every x position, i.e. the interval [x[i], x[i+1]) has the value y[i].
‘mid’: Steps occur half-way between the x positions.

Returns¶

.PolyCollection: A .PolyCollection containing the plotted polygons.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, y1, y2, where

**kwargs

All other keyword arguments are passed on to .PolyCollection. They control the .Polygon properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: array-like or scalar or None animated: bool antialiased or aa or antialiaseds: bool or list of bools array: array-like or None capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clim: (vmin: float, vmax: float) clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None cmap: .Colormap or str or None color: color or list of rgba tuples edgecolor or ec or edgecolors: color or list of colors or ‘face’ facecolor or facecolors or fc: color or list of colors figure: .Figure gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or dashes or linestyles or ls: str or tuple or list thereof linewidth or linewidths or lw: float or list of floats mouseover: bool norm: .Normalize or str or None offset_transform or transOffset: unknown offsets: (N, 2) or (2,) array-like path_effects: .AbstractPathEffect paths: list of array-like picker: None or bool or float or callable pickradius: unknown rasterized: bool sizes: ndarray or None sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str urls: list of str or None verts: list of array-like verts_and_codes: unknown visible: bool zorder: float

Parameters¶

yarray (length N)

The y coordinates of the nodes defining the curves.

x1array (length N) or scalar

The x coordinates of the nodes defining the first curve.

x2array (length N) or scalar, default: 0

The x coordinates of the nodes defining the second curve.

wherearray of bool (length N), optional

Define where to exclude some vertical regions from being filled. The filled regions are defined by the coordinates y[where]. More precisely, fill between y[i] and y[i+1] if where[i] and where[i+1]. Note that this definition implies that an isolated True value between two False values in where will not result in filling. Both sides of the True position remain unfilled due to the adjacent False values.

interpolatebool, default: False

This option is only relevant if where is used and the two curves are crossing each other.

Semantically, where is often used for x1 > x2 or similar. By default, the nodes of the polygon defining the filled region will only be placed at the positions in the y array. Such a polygon cannot describe the above semantics close to the intersection. The y-sections containing the intersection are simply clipped.

Setting interpolate to True will calculate the actual intersection point and extend the filled region up to this point.

step{‘pre’, ‘post’, ‘mid’}, optional

Define step if the filling should be a step function, i.e. constant in between y. The value determines where the step will occur:

‘pre’: The y value is continued constantly to the left from every x position, i.e. the interval (x[i-1], x[i]] has the value y[i].
‘post’: The y value is continued constantly to the right from every x position, i.e. the interval [x[i], x[i+1]) has the value y[i].
‘mid’: Steps occur half-way between the x positions.

Returns¶

.PolyCollection: A .PolyCollection containing the plotted polygons.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

y, x1, x2, where

**kwargs

All other keyword arguments are passed on to .PolyCollection. They control the .Polygon properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: array-like or scalar or None animated: bool antialiased or aa or antialiaseds: bool or list of bools array: array-like or None capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clim: (vmin: float, vmax: float) clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None cmap: .Colormap or str or None color: color or list of rgba tuples edgecolor or ec or edgecolors: color or list of colors or ‘face’ facecolor or facecolors or fc: color or list of colors figure: .Figure gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or dashes or linestyles or ls: str or tuple or list thereof linewidth or linewidths or lw: float or list of floats mouseover: bool norm: .Normalize or str or None offset_transform or transOffset: unknown offsets: (N, 2) or (2,) array-like path_effects: .AbstractPathEffect paths: list of array-like picker: None or bool or float or callable pickradius: unknown rasterized: bool sizes: ndarray or None sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str urls: list of str or None verts: list of array-like verts_and_codes: unknown visible: bool zorder: float

Parameters¶

match

A filter criterion for the matches. This can be

None: Return all objects contained in artist.
A function with signature def match(artist: Artist) -> bool. The result will only contain artists for which the function returns True.
A class instance: e.g., .Line2D. The result will only contain artists of this class or its subclasses (isinstance check).

include_selfbool

Include self in the list to be checked for a match.

Returns¶

list of .Artist

format_coord(theta, r)[source]¶: Return a format string formatting the x, y coordinates.

format_cursor_data(data)¶

Return a string representation of data.

Note

This method is intended to be overridden by artist subclasses. As an end-user of Matplotlib you will most likely not call this method yourself.

The default implementation converts ints and floats and arrays of ints and floats into a comma-separated string enclosed in square brackets, unless the artist has an associated colorbar, in which case scalar values are formatted using the colorbar’s formatter.

Parameters¶

event : matplotlib.backend_bases.MouseEvent

Parameters¶

originalbool: If True, return the original position. Otherwise return the active position. For an explanation of the positions see .set_position.

Returns¶

.Bbox

get_rasterization_zorder()¶: Return the zorder value below which artists will be rasterized.

get_rasterized()¶: Return whether the artist is to be rasterized.

get_renderer_cache()¶: [Deprecated]

Notes¶

Deprecated since version 3.6: Use Axes.figure.canvas.get_renderer() instead.

get_rlabel_position()[source]¶

Returns¶

float: The theta position of the radius labels in degrees.

get_rmax()[source]¶

Returns¶

float: Outer radial limit.

get_rmin()[source]¶

Returns¶

float: The inner radial limit.

get_rorigin()[source]¶: Returns¶

float

get_shared_x_axes()¶: Return an immutable view on the shared x-axes Grouper.

get_shared_y_axes()¶: Return an immutable view on the shared y-axes Grouper.

get_sketch_params()¶

Return the sketch parameters for the artist.

Returns¶

tuple or None

A 3-tuple with the following elements:

scale: The amplitude of the wiggle perpendicular to the source line.

length: The length of the wiggle along the line.

randomness: The scale factor by which the length is shrunken or expanded.

Returns None if no sketch parameters were set.

get_snap()¶

Return the snap setting.

See .set_snap for details.

get_theta_direction()[source]¶

Get the direction in which theta increases.

-1:: Theta increases in the clockwise direction
1:: Theta increases in the counterclockwise direction

get_theta_offset()[source]¶: Get the offset for the location of 0 in radians.

get_thetamax()[source]¶: Return the maximum theta limit in degrees.

get_thetamin()[source]¶: Get the minimum theta limit in degrees.

get_tightbbox(renderer=None, call_axes_locator=True, bbox_extra_artists=None, *, for_layout_only=False)¶

Return the tight bounding box of the Axes, including axis and their decorators (xlabel, title, etc).

Artists that have artist.set_in_layout(False) are not included in the bbox.

Parameters¶

renderer.RendererBase subclass: renderer that will be used to draw the figures (i.e. fig.canvas.get_renderer())
bbox_extra_artistslist of .Artist or None: List of artists to include in the tight bounding box. If None (default), then all artist children of the Axes are included in the tight bounding box.
call_axes_locatorbool, default: True: If call_axes_locator is False, it does not call the _axes_locator attribute, which is necessary to get the correct bounding box. call_axes_locator=False can be used if the caller is only interested in the relative size of the tightbbox compared to the Axes bbox.
for_layout_onlydefault: False: The bounding box will not include the x-extent of the title and the xlabel, or the y-extent of the ylabel.

Returns¶

.BboxBase: Bounding box in figure pixel coordinates.

Parameters¶

loc{‘center’, ‘left’, ‘right’}, str, default: ‘center’: Which title to return.

Returns¶

str: The title text string.

get_transform()¶: Return the .Transform instance used by this artist.

get_transformed_clip_path_and_affine()¶: Return the clip path with the non-affine part of its transformation applied, and the remaining affine part of its transformation.

get_url()¶: Return the url.

get_visible()¶: Return the visibility.

get_window_extent(renderer=None, *args, **kwargs)¶

Return the Axes bounding box in display space; args and kwargs are empty.

This bounding box does not include the spines, ticks, ticklabels, or other labels. For a bounding box including these elements use ~matplotlib.axes.Axes.get_tightbbox.

Returns¶

transformTransform: The transform used for drawing x-axis labels, which will add pad_points of padding (in points) between the axis and the label. The x-direction is in data coordinates and the y-direction is in axis coordinates
valign{‘center’, ‘top’, ‘bottom’, ‘baseline’, ‘center_baseline’}: The text vertical alignment.
halign{‘center’, ‘left’, ‘right’}: The text horizontal alignment.

Notes¶

This transformation is primarily used by the ~matplotlib.axis.Axis class, and is meant to be overridden by new kinds of projections that may need to place axis elements in different locations.

get_xaxis_text2_transform(pad)[source]¶

Returns¶

transformTransform: The transform used for drawing secondary x-axis labels, which will add pad_points of padding (in points) between the axis and the label. The x-direction is in data coordinates and the y-direction is in axis coordinates
valign{‘center’, ‘top’, ‘bottom’, ‘baseline’, ‘center_baseline’}: The text vertical alignment.
halign{‘center’, ‘left’, ‘right’}: The text horizontal alignment.

Notes¶

This transformation is primarily used by the ~matplotlib.axis.Axis class, and is meant to be overridden by new kinds of projections that may need to place axis elements in different locations.

get_xaxis_transform(which='grid')[source]¶: Get the transformation used for drawing x-axis labels, ticks and gridlines. The x-direction is in data coordinates and the y-direction is in axis coordinates.

Note

This transformation is primarily used by the ~matplotlib.axis.Axis class, and is meant to be overridden by new kinds of projections that may need to place axis elements in different locations.

get_xbound()¶: Return the lower and upper x-axis bounds, in increasing order.

See Also¶

set_xbound get_xlim, set_xlim invert_xaxis, xaxis_inverted

get_xgridlines()¶: Return the xaxis’ grid lines as a list of .Line2Ds.

get_xlabel()¶: Get the xlabel text string.

get_xlim()¶

Return the x-axis view limits.

Returns¶

left, right(float, float): The current x-axis limits in data coordinates.

Notes¶

The x-axis may be inverted, in which case the left value will be greater than the right value.

get_xmajorticklabels()¶: Return the xaxis’ major tick labels, as a list of ~.text.Text.

get_xminorticklabels()¶: Return the xaxis’ minor tick labels, as a list of ~.text.Text.

get_xscale()¶: Return the xaxis’ scale (as a str).

get_xticklabels(minor=False, which=None)¶

Get the xaxis’ tick labels.

Parameters¶

minorbool

Whether to return the minor or the major ticklabels.

whichNone, (‘minor’, ‘major’, ‘both’)

Overrides minor.

Selects which ticklabels to return

Returns¶

list of ~matplotlib.text.Text

get_xticklines(minor=False)¶: Return the xaxis’ tick lines as a list of .Line2Ds.

get_xticks(*, minor=False)¶

Return the xaxis’ tick locations in data coordinates.

The locations are not clipped to the current axis limits and hence may contain locations that are not visible in the output.

Parameters¶

minorbool, default: False: True to return the minor tick directions, False to return the major tick directions.

Returns¶

numpy array of tick locations

get_yaxis()¶: [Discouraged] Return the YAxis instance.

Discouraged

The use of this function is discouraged. You should instead directly access the attribute ax.yaxis.

get_yaxis_text1_transform(pad)[source]¶

Returns¶

transformTransform: The transform used for drawing y-axis labels, which will add pad_points of padding (in points) between the axis and the label. The x-direction is in axis coordinates and the y-direction is in data coordinates
valign{‘center’, ‘top’, ‘bottom’, ‘baseline’, ‘center_baseline’}: The text vertical alignment.
halign{‘center’, ‘left’, ‘right’}: The text horizontal alignment.

Notes¶

This transformation is primarily used by the ~matplotlib.axis.Axis class, and is meant to be overridden by new kinds of projections that may need to place axis elements in different locations.

get_yaxis_text2_transform(pad)[source]¶

Returns¶

transformTransform: The transform used for drawing secondart y-axis labels, which will add pad_points of padding (in points) between the axis and the label. The x-direction is in axis coordinates and the y-direction is in data coordinates
valign{‘center’, ‘top’, ‘bottom’, ‘baseline’, ‘center_baseline’}: The text vertical alignment.
halign{‘center’, ‘left’, ‘right’}: The text horizontal alignment.

Notes¶

This transformation is primarily used by the ~matplotlib.axis.Axis class, and is meant to be overridden by new kinds of projections that may need to place axis elements in different locations.

get_yaxis_transform(which='grid')[source]¶: Get the transformation used for drawing y-axis labels, ticks and gridlines. The x-direction is in axis coordinates and the y-direction is in data coordinates.

Note

This transformation is primarily used by the ~matplotlib.axis.Axis class, and is meant to be overridden by new kinds of projections that may need to place axis elements in different locations.

get_ybound()¶: Return the lower and upper y-axis bounds, in increasing order.

See Also¶

set_ybound get_ylim, set_ylim invert_yaxis, yaxis_inverted

get_ygridlines()¶: Return the yaxis’ grid lines as a list of .Line2Ds.

get_ylabel()¶: Get the ylabel text string.

get_ylim()¶

Return the y-axis view limits.

Returns¶

bottom, top(float, float): The current y-axis limits in data coordinates.

Notes¶

The y-axis may be inverted, in which case the bottom value will be greater than the top value.

get_ymajorticklabels()¶: Return the yaxis’ major tick labels, as a list of ~.text.Text.

get_yminorticklabels()¶: Return the yaxis’ minor tick labels, as a list of ~.text.Text.

get_yscale()¶: Return the yaxis’ scale (as a str).

get_yticklabels(minor=False, which=None)¶

Get the yaxis’ tick labels.

Parameters¶

minorbool

Whether to return the minor or the major ticklabels.

whichNone, (‘minor’, ‘major’, ‘both’)

Overrides minor.

Selects which ticklabels to return

Returns¶

list of ~matplotlib.text.Text

get_yticklines(minor=False)¶: Return the yaxis’ tick lines as a list of .Line2Ds.

get_yticks(*, minor=False)¶

Return the yaxis’ tick locations in data coordinates.

The locations are not clipped to the current axis limits and hence may contain locations that are not visible in the output.

Parameters¶

minorbool, default: False: True to return the minor tick directions, False to return the major tick directions.

Returns¶

numpy array of tick locations

get_zorder()¶: Return the artist’s zorder.

grid(visible=None, which='major', axis='both', **kwargs)¶

Configure the grid lines.

Parameters¶

visiblebool or None, optional

Whether to show the grid lines. If any kwargs are supplied, it is assumed you want the grid on and visible will be set to True.

If visible is None and there are no kwargs, this toggles the visibility of the lines.

which{‘major’, ‘minor’, ‘both’}, optional

The grid lines to apply the changes on.

axis{‘both’, ‘x’, ‘y’}, optional

The axis to apply the changes on.

**kwargs.Line2D properties

Define the line properties of the grid, e.g.:

grid(color='r', linestyle='-', linewidth=2)

Valid keyword arguments are:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Notes¶

The axis is drawn as a unit, so the effective zorder for drawing the grid is determined by the zorder of each axis, not by the zorder of the .Line2D objects comprising the grid. Therefore, to set grid zorder, use .set_axisbelow or, for more control, call the ~.Artist.set_zorder method of each axis.

has_data()¶

Return whether any artists have been added to the Axes.

This should not be used to determine whether the dataLim need to be updated, and may not actually be useful for anything.

have_units()¶: Return whether units are set on any axis.

hexbin(x, y, C=None, gridsize=100, bins=None, xscale='linear', yscale='linear', extent=None, cmap=None, norm=None, vmin=None, vmax=None, alpha=None, linewidths=None, edgecolors='face', reduce_C_function=<function mean>, mincnt=None, marginals=False, *, data=None, **kwargs)¶

Make a 2D hexagonal binning plot of points x, y.

If C is None, the value of the hexagon is determined by the number of points in the hexagon. Otherwise, C specifies values at the coordinate (x[i], y[i]). For each hexagon, these values are reduced using reduce_C_function.

Parameters¶

x, yarray-like

The data positions. x and y must be of the same length.

Carray-like, optional

If given, these values are accumulated in the bins. Otherwise, every point has a value of 1. Must be of the same length as x and y.

gridsizeint or (int, int), default: 100

If a single int, the number of hexagons in the x-direction. The number of hexagons in the y-direction is chosen such that the hexagons are approximately regular.

Alternatively, if a tuple (nx, ny), the number of hexagons in the x-direction and the y-direction. In the y-direction, counting is done along vertically aligned hexagons, not along the zig-zag chains of hexagons; see the following illustration.

(Source code, png, hires.png, pdf)

To get approximately regular hexagons, choose \(n_x = \sqrt{3}\,n_y\).

bins‘log’ or int or sequence, default: None

Discretization of the hexagon values.

If None, no binning is applied; the color of each hexagon directly corresponds to its count value.
If ‘log’, use a logarithmic scale for the colormap. Internally, \(log_{10}(i+1)\) is used to determine the hexagon color. This is equivalent to norm=LogNorm().
If an integer, divide the counts in the specified number of bins, and color the hexagons accordingly.
If a sequence of values, the values of the lower bound of the bins to be used.

xscale{‘linear’, ‘log’}, default: ‘linear’

Use a linear or log10 scale on the horizontal axis.

yscale{‘linear’, ‘log’}, default: ‘linear’

Use a linear or log10 scale on the vertical axis.

mincntint > 0, default: None

If not None, only display cells with more than mincnt number of points in the cell.

marginalsbool, default: False

If marginals is True, plot the marginal density as colormapped rectangles along the bottom of the x-axis and left of the y-axis.

extent4-tuple of float, default: None

The limits of the bins (xmin, xmax, ymin, ymax). The default assigns the limits based on gridsize, x, y, xscale and yscale.

If xscale or yscale is set to ‘log’, the limits are expected to be the exponent for a power of 10. E.g. for x-limits of 1 and 50 in ‘linear’ scale and y-limits of 10 and 1000 in ‘log’ scale, enter (1, 50, 1, 3).

Returns¶

~matplotlib.collections.PolyCollection

A .PolyCollection defining the hexagonal bins.

.PolyCollection.get_offsets contains a Mx2 array containing the x, y positions of the M hexagon centers.
.PolyCollection.get_array contains the values of the M hexagons.

If marginals is True, horizontal bar and vertical bar (both PolyCollections) will be attached to the return collection as attributes hbar and vbar.

Other Parameters¶

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

alphafloat between 0 and 1, optional

The alpha blending value, between 0 (transparent) and 1 (opaque).

linewidthsfloat, default: None

If None, defaults to 1.0.

edgecolors{‘face’, ‘none’, None} or color, default: ‘face’

The color of the hexagon edges. Possible values are:

‘face’: Draw the edges in the same color as the fill color.
‘none’: No edges are drawn. This can sometimes lead to unsightly unpainted pixels between the hexagons.
None: Draw outlines in the default color.
An explicit color.

reduce_C_functioncallable, default: numpy.mean

The function to aggregate C within the bins. It is ignored if C is not given. This must have the signature:

def reduce_C_function(C: array) -> float

Commonly used functions are:

numpy.mean: average of the points
numpy.sum: integral of the point values
numpy.amax: value taken from the largest point

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, y, C

**kwargs~matplotlib.collections.PolyCollection properties

All other keyword arguments are passed on to .PolyCollection:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: array-like or scalar or None animated: bool antialiased or aa or antialiaseds: bool or list of bools array: array-like or None capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clim: (vmin: float, vmax: float) clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None cmap: .Colormap or str or None color: color or list of rgba tuples edgecolor or ec or edgecolors: color or list of colors or ‘face’ facecolor or facecolors or fc: color or list of colors figure: .Figure gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or dashes or linestyles or ls: str or tuple or list thereof linewidth or linewidths or lw: float or list of floats mouseover: bool norm: .Normalize or str or None offset_transform or transOffset: unknown offsets: (N, 2) or (2,) array-like path_effects: .AbstractPathEffect paths: list of array-like picker: None or bool or float or callable pickradius: unknown rasterized: bool sizes: ndarray or None sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str urls: list of str or None verts: list of array-like verts_and_codes: unknown visible: bool zorder: float

Parameters¶

x(n,) array or sequence of (n,) arrays

Input values, this takes either a single array or a sequence of arrays which are not required to be of the same length.

binsint or sequence or str, default: :rc:`hist.bins`

If bins is an integer, it defines the number of equal-width bins in the range.

If bins is a sequence, it defines the bin edges, including the left edge of the first bin and the right edge of the last bin; in this case, bins may be unequally spaced. All but the last (righthand-most) bin is half-open. In other words, if bins is:

[1, 2, 3, 4]

then the first bin is [1, 2) (including 1, but excluding 2) and the second [2, 3). The last bin, however, is [3, 4], which includes 4.

If bins is a string, it is one of the binning strategies supported by numpy.histogram_bin_edges: ‘auto’, ‘fd’, ‘doane’, ‘scott’, ‘stone’, ‘rice’, ‘sturges’, or ‘sqrt’.

rangetuple or None, default: None

The lower and upper range of the bins. Lower and upper outliers are ignored. If not provided, range is (x.min(), x.max()). Range has no effect if bins is a sequence.

If bins is a sequence or range is specified, autoscaling is based on the specified bin range instead of the range of x.

densitybool, default: False

If True, draw and return a probability density: each bin will display the bin’s raw count divided by the total number of counts and the bin width (density = counts / (sum(counts) * np.diff(bins))), so that the area under the histogram integrates to 1 (np.sum(density * np.diff(bins)) == 1).

If stacked is also True, the sum of the histograms is normalized to 1.

weights(n,) array-like or None, default: None

An array of weights, of the same shape as x. Each value in x only contributes its associated weight towards the bin count (instead of 1). If density is True, the weights are normalized, so that the integral of the density over the range remains 1.

cumulativebool or -1, default: False

If True, then a histogram is computed where each bin gives the counts in that bin plus all bins for smaller values. The last bin gives the total number of datapoints.

If density is also True then the histogram is normalized such that the last bin equals 1.

If cumulative is a number less than 0 (e.g., -1), the direction of accumulation is reversed. In this case, if density is also True, then the histogram is normalized such that the first bin equals 1.

bottomarray-like, scalar, or None, default: None

Location of the bottom of each bin, ie. bins are drawn from bottom to bottom + hist(x, bins) If a scalar, the bottom of each bin is shifted by the same amount. If an array, each bin is shifted independently and the length of bottom must match the number of bins. If None, defaults to 0.

histtype{‘bar’, ‘barstacked’, ‘step’, ‘stepfilled’}, default: ‘bar’

The type of histogram to draw.

‘bar’ is a traditional bar-type histogram. If multiple data are given the bars are arranged side by side.
‘barstacked’ is a bar-type histogram where multiple data are stacked on top of each other.
‘step’ generates a lineplot that is by default unfilled.
‘stepfilled’ generates a lineplot that is by default filled.

align{‘left’, ‘mid’, ‘right’}, default: ‘mid’

The horizontal alignment of the histogram bars.

‘left’: bars are centered on the left bin edges.
‘mid’: bars are centered between the bin edges.
‘right’: bars are centered on the right bin edges.

orientation{‘vertical’, ‘horizontal’}, default: ‘vertical’

If ‘horizontal’, ~.Axes.barh will be used for bar-type histograms and the bottom kwarg will be the left edges.

rwidthfloat or None, default: None

The relative width of the bars as a fraction of the bin width. If None, automatically compute the width.

Ignored if histtype is ‘step’ or ‘stepfilled’.

logbool, default: False

If True, the histogram axis will be set to a log scale.

colorcolor or array-like of colors or None, default: None

Color or sequence of colors, one per dataset. Default (None) uses the standard line color sequence.

labelstr or None, default: None

String, or sequence of strings to match multiple datasets. Bar charts yield multiple patches per dataset, but only the first gets the label, so that ~.Axes.legend will work as expected.

stackedbool, default: False

If True, multiple data are stacked on top of each other If False multiple data are arranged side by side if histtype is ‘bar’ or on top of each other if histtype is ‘step’

Returns¶

narray or list of arrays: The values of the histogram bins. See density and weights for a description of the possible semantics. If input x is an array, then this is an array of length nbins. If input is a sequence of arrays [data1, data2, ...], then this is a list of arrays with the values of the histograms for each of the arrays in the same order. The dtype of the array n (or of its element arrays) will always be float even if no weighting or normalization is used.
binsarray: The edges of the bins. Length nbins + 1 (nbins left edges and right edge of last bin). Always a single array even when multiple data sets are passed in.
patches.BarContainer or list of a single .Polygon or list of such objects: Container of individual artists used to create the histogram or list of such containers if there are multiple input datasets.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, weights

**kwargs

~matplotlib.patches.Patch properties

Notes¶

For large numbers of bins (>1000), plotting can be significantly faster if histtype is set to ‘step’ or ‘stepfilled’ rather than ‘bar’ or ‘barstacked’.

hist2d(x, y, bins=10, range=None, density=False, weights=None, cmin=None, cmax=None, *, data=None, **kwargs)¶

Make a 2D histogram plot.

Parameters¶

x, yarray-like, shape (n, ): Input values

bins : None or int or [int, int] or array-like or [array, array]

The bin specification:

If int, the number of bins for the two dimensions (nx=ny=bins).

If [int, int], the number of bins in each dimension (nx, ny = bins).

If array-like, the bin edges for the two dimensions (x_edges=y_edges=bins).

If [array, array], the bin edges in each dimension (x_edges, y_edges = bins).

The default value is 10.

rangearray-like shape(2, 2), optional: The leftmost and rightmost edges of the bins along each dimension (if not specified explicitly in the bins parameters): [[xmin, xmax], [ymin, ymax]]. All values outside of this range will be considered outliers and not tallied in the histogram.
densitybool, default: False: Normalize histogram. See the documentation for the density parameter of ~.Axes.hist for more details.
weightsarray-like, shape (n, ), optional: An array of values w_i weighing each sample (x_i, y_i).
cmin, cmaxfloat, default: None: All bins that has count less than cmin or more than cmax will not be displayed (set to NaN before passing to imshow) and these count values in the return value count histogram will also be set to nan upon return.

Returns¶

h2D array: The bi-dimensional histogram of samples x and y. Values in x are histogrammed along the first dimension and values in y are histogrammed along the second dimension.
xedges1D array: The bin edges along the x axis.
yedges1D array: The bin edges along the y axis.

image : ~.matplotlib.collections.QuadMesh

Other Parameters¶

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

alpha0 <= scalar <= 1 or None, optional

The alpha blending value.

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, y, weights

**kwargs

Additional parameters are passed along to the ~.Axes.pcolormesh method and ~matplotlib.collections.QuadMesh constructor.

Notes¶

Currently hist2d calculates its own axis limits, and any limits previously set are ignored.
Rendering the histogram with a logarithmic color scale is accomplished by passing a .colors.LogNorm instance to the norm keyword argument. Likewise, power-law normalization (similar in effect to gamma correction) can be accomplished with .colors.PowerNorm.

hlines(y, xmin, xmax, colors=None, linestyles='solid', label='', *, data=None, **kwargs)¶

Plot horizontal lines at each y from xmin to xmax.

Parameters¶

yfloat or array-like: y-indexes where to plot the lines.
xmin, xmaxfloat or array-like: Respective beginning and end of each line. If scalars are provided, all lines will have the same length.

colors : list of colors, default: :rc:`lines.color`

linestyles : {‘solid’, ‘dashed’, ‘dashdot’, ‘dotted’}, optional

label : str, default: ‘’

Returns¶

~matplotlib.collections.LineCollection

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

y, xmin, xmax, colors

**kwargs : ~matplotlib.collections.LineCollection properties.

Parameters¶

Xarray-like or PIL image

The image data. Supported array shapes are:

(M, N): an image with scalar data. The values are mapped to colors using normalization and a colormap. See parameters norm, cmap, vmin, vmax.
(M, N, 3): an image with RGB values (0-1 float or 0-255 int).
(M, N, 4): an image with RGBA values (0-1 float or 0-255 int), i.e. including transparency.

The first two dimensions (M, N) define the rows and columns of the image.

Out-of-range RGB(A) values are clipped.

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

This parameter is ignored if X is RGB(A).

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

This parameter is ignored if X is RGB(A).

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

This parameter is ignored if X is RGB(A).

aspect{‘equal’, ‘auto’} or float, default: :rc:`image.aspect`

The aspect ratio of the Axes. This parameter is particularly relevant for images since it determines whether data pixels are square.

This parameter is a shortcut for explicitly calling .Axes.set_aspect. See there for further details.

‘equal’: Ensures an aspect ratio of 1. Pixels will be square (unless pixel sizes are explicitly made non-square in data coordinates using extent).
‘auto’: The Axes is kept fixed and the aspect is adjusted so that the data fit in the Axes. In general, this will result in non-square pixels.

interpolationstr, default: :rc:`image.interpolation`

The interpolation method used.

Supported values are ‘none’, ‘antialiased’, ‘nearest’, ‘bilinear’, ‘bicubic’, ‘spline16’, ‘spline36’, ‘hanning’, ‘hamming’, ‘hermite’, ‘kaiser’, ‘quadric’, ‘catrom’, ‘gaussian’, ‘bessel’, ‘mitchell’, ‘sinc’, ‘lanczos’, ‘blackman’.

If interpolation is ‘none’, then no interpolation is performed on the Agg, ps, pdf and svg backends. Other backends will fall back to ‘nearest’. Note that most SVG renderers perform interpolation at rendering and that the default interpolation method they implement may differ.

If interpolation is the default ‘antialiased’, then ‘nearest’ interpolation is used if the image is upsampled by more than a factor of three (i.e. the number of display pixels is at least three times the size of the data array). If the upsampling rate is smaller than 3, or the image is downsampled, then ‘hanning’ interpolation is used to act as an anti-aliasing filter, unless the image happens to be upsampled by exactly a factor of two or one.

See /gallery/images_contours_and_fields/interpolation_methods for an overview of the supported interpolation methods, and /gallery/images_contours_and_fields/image_antialiasing for a discussion of image antialiasing.

Some interpolation methods require an additional radius parameter, which can be set by filterrad. Additionally, the antigrain image resize filter is controlled by the parameter filternorm.

interpolation_stage{‘data’, ‘rgba’}, default: ‘data’

If ‘data’, interpolation is carried out on the data provided by the user. If ‘rgba’, the interpolation is carried out after the colormapping has been applied (visual interpolation).

alphafloat or array-like, optional

The alpha blending value, between 0 (transparent) and 1 (opaque). If alpha is an array, the alpha blending values are applied pixel by pixel, and alpha must have the same shape as X.

origin{‘upper’, ‘lower’}, default: :rc:`image.origin`

Place the [0, 0] index of the array in the upper left or lower left corner of the Axes. The convention (the default) ‘upper’ is typically used for matrices and images.

Note that the vertical axis points upward for ‘lower’ but downward for ‘upper’.

See the /tutorials/intermediate/imshow_extent tutorial for examples and a more detailed description.

extentfloats (left, right, bottom, top), optional

The bounding box in data coordinates that the image will fill. The image is stretched individually along x and y to fill the box.

The default extent is determined by the following conditions. Pixels have unit size in data coordinates. Their centers are on integer coordinates, and their center coordinates range from 0 to columns-1 horizontally and from 0 to rows-1 vertically.

Note that the direction of the vertical axis and thus the default values for top and bottom depend on origin:

For origin == 'upper' the default is (-0.5, numcols-0.5, numrows-0.5, -0.5).
For origin == 'lower' the default is (-0.5, numcols-0.5, -0.5, numrows-0.5).

See the /tutorials/intermediate/imshow_extent tutorial for examples and a more detailed description.

filternormbool, default: True

A parameter for the antigrain image resize filter (see the antigrain documentation). If filternorm is set, the filter normalizes integer values and corrects the rounding errors. It doesn’t do anything with the source floating point values, it corrects only integers according to the rule of 1.0 which means that any sum of pixel weights must be equal to 1.0. So, the filter function must produce a graph of the proper shape.

filterradfloat > 0, default: 4.0

The filter radius for filters that have a radius parameter, i.e. when interpolation is one of: ‘sinc’, ‘lanczos’ or ‘blackman’.

resamplebool, default: :rc:`image.resample`

When True, use a full resampling method. When False, only resample when the output image is larger than the input image.

urlstr, optional

Set the url of the created .AxesImage. See .Artist.set_url.

Returns¶

~matplotlib.image.AxesImage

Other Parameters¶

dataindexable object, optional: If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).
**kwargs~matplotlib.artist.Artist properties: These parameters are passed on to the constructor of the .AxesImage artist.

Notes¶

Unless extent is used, pixel centers will be located at integer coordinates. In other words: the origin will coincide with the center of pixel (0, 0).

There are two common representations for RGB images with an alpha channel:

Straight (unassociated) alpha: R, G, and B channels represent the color of the pixel, disregarding its opacity.
Premultiplied (associated) alpha: R, G, and B channels represent the color of the pixel, adjusted for its opacity by multiplication.

~matplotlib.pyplot.imshow expects RGB images adopting the straight (unassociated) alpha representation.

in_axes(mouseevent)¶: Return whether the given event (in display coords) is in the Axes.

indicate_inset(bounds, inset_ax=None, *, transform=None, facecolor='none', edgecolor='0.5', alpha=0.5, zorder=4.99, **kwargs)¶

Add an inset indicator to the Axes. This is a rectangle on the plot at the position indicated by bounds that optionally has lines that connect the rectangle to an inset Axes (.Axes.inset_axes).

Warnings¶

This method is experimental as of 3.0, and the API may change.

Parameters¶

bounds[x0, y0, width, height]

Lower-left corner of rectangle to be marked, and its width and height.

inset_ax.Axes

An optional inset Axes to draw connecting lines to. Two lines are drawn connecting the indicator box to the inset Axes on corners chosen so as to not overlap with the indicator box.

transform.Transform

Transform for the rectangle coordinates. Defaults to ax.transAxes, i.e. the units of rect are in Axes-relative coordinates.

facecolorcolor, default: ‘none’

Facecolor of the rectangle.

edgecolorcolor, default: ‘0.5’

Color of the rectangle and color of the connecting lines.

alphafloat, default: 0.5

Transparency of the rectangle and connector lines.

zorderfloat, default: 4.99

Drawing order of the rectangle and connector lines. The default, 4.99, is just below the default level of inset Axes.

**kwargs

Other keyword arguments are passed on to the .Rectangle patch:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None angle: unknown animated: bool antialiased or aa: bool or None bounds: (left, bottom, width, height) capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color: color edgecolor or ec: color or None facecolor or fc: color or None figure: .Figure fill: bool gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} height: unknown in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float or None mouseover: bool path_effects: .AbstractPathEffect picker: None or bool or float or callable rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str visible: bool width: unknown x: unknown xy: (float, float) y: unknown zorder: float

Returns¶

rectangle_patch.patches.Rectangle: The indicator frame.
connector_lines4-tuple of .patches.ConnectionPatch: The four connector lines connecting to (lower_left, upper_left, lower_right upper_right) corners of inset_ax. Two lines are set with visibility to False, but the user can set the visibility to True if the automatic choice is not deemed correct.

indicate_inset_zoom(inset_ax, **kwargs)¶

Add an inset indicator rectangle to the Axes based on the axis limits for an inset_ax and draw connectors between inset_ax and the rectangle.

Warnings¶

This method is experimental as of 3.0, and the API may change.

Parameters¶

inset_ax.Axes: Inset Axes to draw connecting lines to. Two lines are drawn connecting the indicator box to the inset Axes on corners chosen so as to not overlap with the indicator box.
**kwargs: Other keyword arguments are passed on to .Axes.indicate_inset

Returns¶

rectangle_patch.patches.Rectangle: Rectangle artist.
connector_lines4-tuple of .patches.ConnectionPatch: Each of four connector lines coming from the rectangle drawn on this axis, in the order lower left, upper left, lower right, upper right. Two are set with visibility to False, but the user can set the visibility to True if the automatic choice is not deemed correct.

inset_axes(bounds, *, transform=None, zorder=5, **kwargs)¶

Add a child inset Axes to this existing Axes.

Warnings¶

This method is experimental as of 3.0, and the API may change.

Parameters¶

bounds[x0, y0, width, height]: Lower-left corner of inset Axes, and its width and height.
transform.Transform: Defaults to ax.transAxes, i.e. the units of rect are in Axes-relative coordinates.
projection{None, ‘aitoff’, ‘hammer’, ‘lambert’, ‘mollweide’, ‘polar’, ‘rectilinear’, str}, optional: The projection type of the inset ~.axes.Axes. str is the name of a custom projection, see ~matplotlib.projections. The default None results in a ‘rectilinear’ projection.
polarbool, default: False: If True, equivalent to projection=’polar’.
axes_classsubclass type of ~.axes.Axes, optional: The .axes.Axes subclass that is instantiated. This parameter is incompatible with projection and polar. See axisartist_users-guide-index for examples.
zordernumber: Defaults to 5 (same as .Axes.legend). Adjust higher or lower to change whether it is above or below data plotted on the parent Axes.
**kwargs: Other keyword arguments are passed on to the inset Axes class.

Returns¶

ax: The created ~.axes.Axes instance.

Examples¶

This example makes two inset Axes, the first is in Axes-relative coordinates, and the second in data-coordinates:

fig, ax = plt.subplots()
ax.plot(range(10))
axin1 = ax.inset_axes([0.8, 0.1, 0.15, 0.15])
axin2 = ax.inset_axes(
        [5, 7, 2.3, 2.3], transform=ax.transData)

invert_xaxis()¶: Invert the x-axis.

See Also¶

xaxis_inverted get_xlim, set_xlim get_xbound, set_xbound

invert_yaxis()¶: Invert the y-axis.

See Also¶

yaxis_inverted get_ylim, set_ylim get_ybound, set_ybound

is_transform_set()¶

Return whether the Artist has an explicitly set transform.

This is True after .set_transform has been called.

legend(*args, **kwargs)¶

Place a legend on the Axes.

Call signatures:

legend()
legend(handles, labels)
legend(handles=handles)
legend(labels)

The call signatures correspond to the following different ways to use this method:

1. Automatic detection of elements to be shown in the legend

The elements to be added to the legend are automatically determined, when you do not pass in any extra arguments.

In this case, the labels are taken from the artist. You can specify them either at artist creation or by calling the set_label() method on the artist:

ax.plot([1, 2, 3], label='Inline label')
ax.legend()

or:

line, = ax.plot([1, 2, 3])
line.set_label('Label via method')
ax.legend()

Note

Specific artists can be excluded from the automatic legend element selection by using a label starting with an underscore, “_”. A string starting with an underscore is the default label for all artists, so calling .Axes.legend without any arguments and without setting the labels manually will result in no legend being drawn.

2. Explicitly listing the artists and labels in the legend

For full control of which artists have a legend entry, it is possible to pass an iterable of legend artists followed by an iterable of legend labels respectively:

ax.legend([line1, line2, line3], ['label1', 'label2', 'label3'])

3. Explicitly listing the artists in the legend

This is similar to 2, but the labels are taken from the artists’ label properties. Example:

line1, = ax.plot([1, 2, 3], label='label1')
line2, = ax.plot([1, 2, 3], label='label2')
ax.legend(handles=[line1, line2])

4. Labeling existing plot elements

Discouraged

This call signature is discouraged, because the relation between plot elements and labels is only implicit by their order and can easily be mixed up.

To make a legend for all artists on an Axes, call this function with an iterable of strings, one for each legend item. For example:

ax.plot([1, 2, 3])
ax.plot([5, 6, 7])
ax.legend(['First line', 'Second line'])

Parameters¶

handlessequence of .Artist, optional

A list of Artists (lines, patches) to be added to the legend. Use this together with labels, if you need full control on what is shown in the legend and the automatic mechanism described above is not sufficient.

The length of handles and labels should be the same in this case. If they are not, they are truncated to the smaller length.

labelslist of str, optional

A list of labels to show next to the artists. Use this together with handles, if you need full control on what is shown in the legend and the automatic mechanism described above is not sufficient.

Returns¶

~matplotlib.legend.Legend

Other Parameters¶

locstr or pair of floats, default: :rc:`legend.loc` (‘best’ for axes, ‘upper right’ for figures)

The location of the legend.

The strings 'upper left', 'upper right', 'lower left', 'lower right' place the legend at the corresponding corner of the axes/figure.

The strings 'upper center', 'lower center', 'center left', 'center right' place the legend at the center of the corresponding edge of the axes/figure.

The string 'center' places the legend at the center of the axes/figure.

The string 'best' places the legend at the location, among the nine locations defined so far, with the minimum overlap with other drawn artists. This option can be quite slow for plots with large amounts of data; your plotting speed may benefit from providing a specific location.

The location can also be a 2-tuple giving the coordinates of the lower-left corner of the legend in axes coordinates (in which case bbox_to_anchor will be ignored).

For back-compatibility, 'center right' (but no other location) can also be spelled 'right', and each “string” locations can also be given as a numeric value:

Location String

Location Code

‘best’

0

‘upper right’

1

‘upper left’

2

‘lower left’

3

‘lower right’

4

‘right’

5

‘center left’

6

‘center right’

7

‘lower center’

8

‘upper center’

9

‘center’

10

bbox_to_anchor.BboxBase, 2-tuple, or 4-tuple of floats

Box that is used to position the legend in conjunction with loc. Defaults to axes.bbox (if called as a method to .Axes.legend) or figure.bbox (if .Figure.legend). This argument allows arbitrary placement of the legend.

Bbox coordinates are interpreted in the coordinate system given by bbox_transform, with the default transform Axes or Figure coordinates, depending on which legend is called.

If a 4-tuple or .BboxBase is given, then it specifies the bbox (x, y, width, height) that the legend is placed in. To put the legend in the best location in the bottom right quadrant of the axes (or figure):

loc='best', bbox_to_anchor=(0.5, 0., 0.5, 0.5)

A 2-tuple (x, y) places the corner of the legend specified by loc at x, y. For example, to put the legend’s upper right-hand corner in the center of the axes (or figure) the following keywords can be used:

loc='upper right', bbox_to_anchor=(0.5, 0.5)

ncolsint, default: 1

The number of columns that the legend has.

For backward compatibility, the spelling ncol is also supported but it is discouraged. If both are given, ncols takes precedence.

propNone or matplotlib.font_manager.FontProperties or dict

The font properties of the legend. If None (default), the current matplotlib.rcParams will be used.

fontsizeint or {‘xx-small’, ‘x-small’, ‘small’, ‘medium’, ‘large’, ‘x-large’, ‘xx-large’}

The font size of the legend. If the value is numeric the size will be the absolute font size in points. String values are relative to the current default font size. This argument is only used if prop is not specified.

labelcolorstr or list, default: :rc:`legend.labelcolor`

The color of the text in the legend. Either a valid color string (for example, ‘red’), or a list of color strings. The labelcolor can also be made to match the color of the line or marker using ‘linecolor’, ‘markerfacecolor’ (or ‘mfc’), or ‘markeredgecolor’ (or ‘mec’).

Labelcolor can be set globally using :rc:`legend.labelcolor`. If None, use :rc:`text.color`.

numpointsint, default: :rc:`legend.numpoints`

The number of marker points in the legend when creating a legend entry for a .Line2D (line).

scatterpointsint, default: :rc:`legend.scatterpoints`

The number of marker points in the legend when creating a legend entry for a .PathCollection (scatter plot).

scatteryoffsetsiterable of floats, default: [0.375, 0.5, 0.3125]

The vertical offset (relative to the font size) for the markers created for a scatter plot legend entry. 0.0 is at the base the legend text, and 1.0 is at the top. To draw all markers at the same height, set to [0.5].

markerscalefloat, default: :rc:`legend.markerscale`

The relative size of legend markers compared with the originally drawn ones.

markerfirstbool, default: True

If True, legend marker is placed to the left of the legend label. If False, legend marker is placed to the right of the legend label.

frameonbool, default: :rc:`legend.frameon`

Whether the legend should be drawn on a patch (frame).

fancyboxbool, default: :rc:`legend.fancybox`

Whether round edges should be enabled around the .FancyBboxPatch which makes up the legend’s background.

shadowbool, default: :rc:`legend.shadow`

Whether to draw a shadow behind the legend.

framealphafloat, default: :rc:`legend.framealpha`

The alpha transparency of the legend’s background. If shadow is activated and framealpha is None, the default value is ignored.

facecolor“inherit” or color, default: :rc:`legend.facecolor`

The legend’s background color. If "inherit", use :rc:`axes.facecolor`.

edgecolor“inherit” or color, default: :rc:`legend.edgecolor`

The legend’s background patch edge color. If "inherit", use take :rc:`axes.edgecolor`.

mode{“expand”, None}

If mode is set to "expand" the legend will be horizontally expanded to fill the axes area (or bbox_to_anchor if defines the legend’s size).

bbox_transformNone or matplotlib.transforms.Transform

The transform for the bounding box (bbox_to_anchor). For a value of None (default) the Axes’ transAxes transform will be used.

titlestr or None

The legend’s title. Default is no title (None).

title_fontpropertiesNone or matplotlib.font_manager.FontProperties or dict

The font properties of the legend’s title. If None (default), the title_fontsize argument will be used if present; if title_fontsize is also None, the current :rc:`legend.title_fontsize` will be used.

title_fontsizeint or {‘xx-small’, ‘x-small’, ‘small’, ‘medium’, ‘large’, ‘x-large’, ‘xx-large’}, default: :rc:`legend.title_fontsize`

The font size of the legend’s title. Note: This cannot be combined with title_fontproperties. If you want to set the fontsize alongside other font properties, use the size parameter in title_fontproperties.

alignment{‘center’, ‘left’, ‘right’}, default: ‘center’

The alignment of the legend title and the box of entries. The entries are aligned as a single block, so that markers always lined up.

borderpadfloat, default: :rc:`legend.borderpad`

The fractional whitespace inside the legend border, in font-size units.

labelspacingfloat, default: :rc:`legend.labelspacing`

The vertical space between the legend entries, in font-size units.

handlelengthfloat, default: :rc:`legend.handlelength`

The length of the legend handles, in font-size units.

handleheightfloat, default: :rc:`legend.handleheight`

The height of the legend handles, in font-size units.

handletextpadfloat, default: :rc:`legend.handletextpad`

The pad between the legend handle and text, in font-size units.

borderaxespadfloat, default: :rc:`legend.borderaxespad`

The pad between the axes and legend border, in font-size units.

columnspacingfloat, default: :rc:`legend.columnspacing`

The spacing between columns, in font-size units.

handler_mapdict or None

The custom dictionary mapping instances or types to a legend handler. This handler_map updates the default handler map found at matplotlib.legend.Legend.get_legend_handler_map.

Notes¶

Some artists are not supported by this function. See /tutorials/intermediate/legend_guide for details.

Examples¶

locator_params(axis='both', tight=None, **kwargs)¶

Control behavior of major tick locators.

Because the locator is involved in autoscaling, ~.Axes.autoscale_view is called automatically after the parameters are changed.

Parameters¶

axis{‘both’, ‘x’, ‘y’}, default: ‘both’: The axis on which to operate. (For 3D Axes, axis can also be set to ‘z’, and ‘both’ refers to all three axes.)
tightbool or None, optional: Parameter passed to ~.Axes.autoscale_view. Default is None, for no change.

Other Parameters¶

**kwargs: Remaining keyword arguments are passed to directly to the set_params() method of the locator. Supported keywords depend on the type of the locator. See for example ~.ticker.MaxNLocator.set_params for the .ticker.MaxNLocator used by default for linear.

Examples¶

When plotting small subplots, one might want to reduce the maximum number of ticks and use tight bounds, for example:

ax.locator_params(tight=True, nbins=4)

loglog(*args, **kwargs)¶

Make a plot with log scaling on both the x and y axis.

Call signatures:

loglog([x], y, [fmt], data=None, **kwargs)
loglog([x], y, [fmt], [x2], y2, [fmt2], ..., **kwargs)

This is just a thin wrapper around .plot which additionally changes both the x-axis and the y-axis to log scaling. All of the concepts and parameters of plot can be used here as well.

The additional parameters base, subs and nonpositive control the x/y-axis properties. They are just forwarded to .Axes.set_xscale and .Axes.set_yscale. To use different properties on the x-axis and the y-axis, use e.g. ax.set_xscale("log", base=10); ax.set_yscale("log", base=2).

Parameters¶

basefloat, default: 10: Base of the logarithm.
subssequence, optional: The location of the minor ticks. If None, reasonable locations are automatically chosen depending on the number of decades in the plot. See .Axes.set_xscale/.Axes.set_yscale for details.
nonpositive{‘mask’, ‘clip’}, default: ‘mask’: Non-positive values can be masked as invalid, or clipped to a very small positive number.
**kwargs: All parameters supported by .plot.

Returns¶

list of .Line2D: Objects representing the plotted data.

magnitude_spectrum(x, Fs=None, Fc=None, window=None, pad_to=None, sides=None, scale=None, *, data=None, **kwargs)¶

Plot the magnitude spectrum.

Compute the magnitude spectrum of x. Data is padded to a length of pad_to and the windowing function window is applied to the signal.

Parameters¶

x1-D array or sequence: Array or sequence containing the data.
Fsfloat, default: 2: The sampling frequency (samples per time unit). It is used to calculate the Fourier frequencies, freqs, in cycles per time unit.
windowcallable or ndarray, default: .window_hanning: A function or a vector of length NFFT. To create window vectors see .window_hanning, .window_none, numpy.blackman, numpy.hamming, numpy.bartlett, scipy.signal, scipy.signal.get_window, etc. If a function is passed as the argument, it must take a data segment as an argument and return the windowed version of the segment.
sides{‘default’, ‘onesided’, ‘twosided’}, optional: Which sides of the spectrum to return. ‘default’ is one-sided for real data and two-sided for complex data. ‘onesided’ forces the return of a one-sided spectrum, while ‘twosided’ forces two-sided.
pad_toint, optional: The number of points to which the data segment is padded when performing the FFT. While not increasing the actual resolution of the spectrum (the minimum distance between resolvable peaks), this can give more points in the plot, allowing for more detail. This corresponds to the n parameter in the call to ~numpy.fft.fft. The default is None, which sets pad_to equal to the length of the input signal (i.e. no padding).
scale{‘default’, ‘linear’, ‘dB’}: The scaling of the values in the spec. ‘linear’ is no scaling. ‘dB’ returns the values in dB scale, i.e., the dB amplitude (20 * log10). ‘default’ is ‘linear’.
Fcint, default: 0: The center frequency of x, which offsets the x extents of the plot to reflect the frequency range used when a signal is acquired and then filtered and downsampled to baseband.

Returns¶

spectrum1-D array: The values for the magnitude spectrum before scaling (real valued).
freqs1-D array: The frequencies corresponding to the elements in spectrum.
line~matplotlib.lines.Line2D: The line created by this function.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x

**kwargs

Keyword arguments control the .Line2D properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Parameters¶

*marginsfloat, optional: If a single positional argument is provided, it specifies both margins of the x-axis and y-axis limits. If two positional arguments are provided, they will be interpreted as xmargin, ymargin. If setting the margin on a single axis is desired, use the keyword arguments described below.
x, yfloat, optional: Specific margin values for the x-axis and y-axis, respectively. These cannot be used with positional arguments, but can be used individually to alter on e.g., only the y-axis.
tightbool or None, default: True: The tight parameter is passed to ~.axes.Axes.autoscale_view, which is executed after a margin is changed; the default here is True, on the assumption that when margins are specified, no additional padding to match tick marks is usually desired. Setting tight to None preserves the previous setting.

Returns¶

xmargin, ymargin : float

Notes¶

If a previously used Axes method such as pcolor() has set use_sticky_edges to True, only the limits not set by the “sticky artists” will be modified. To force all of the margins to be set, set use_sticky_edges to False before calling margins().

matshow(Z, **kwargs)¶

Plot the values of a 2D matrix or array as color-coded image.

The matrix will be shown the way it would be printed, with the first row at the top. Row and column numbering is zero-based.

Parameters¶

Z(M, N) array-like: The matrix to be displayed.

Returns¶

~matplotlib.image.AxesImage

Other Parameters¶

**kwargs : ~matplotlib.axes.Axes.imshow arguments

Notes¶

This is just a convenience function wrapping .imshow to set useful defaults for displaying a matrix. In particular:

Set origin='upper'.
Set interpolation='nearest'.
Set aspect='equal'.
Ticks are placed to the left and above.
Ticks are formatted to show integer indices.

minorticks_off()¶: Remove minor ticks from the Axes.

minorticks_on()¶

Display minor ticks on the Axes.

Displaying minor ticks may reduce performance; you may turn them off using minorticks_off() if drawing speed is a problem.

property mouseover¶: Return whether this artist is queried for custom context information when the mouse cursor moves over it.

pchanged()¶

Call all of the registered callbacks.

This function is triggered internally when a property is changed.

Parameters¶

C2D array-like

The color-mapped values. Color-mapping is controlled by cmap, norm, vmin, and vmax.

X, Yarray-like, optional

The coordinates of the corners of quadrilaterals of a pcolormesh:

(X[i+1, j], Y[i+1, j])       (X[i+1, j+1], Y[i+1, j+1])
                      +-----+
                      |     |
                      +-----+
    (X[i, j], Y[i, j])       (X[i, j+1], Y[i, j+1])

Note that the column index corresponds to the x-coordinate, and the row index corresponds to y. For details, see the Notes section below.

If shading='flat' the dimensions of X and Y should be one greater than those of C, and the quadrilateral is colored due to the value at C[i, j]. If X, Y and C have equal dimensions, a warning will be raised and the last row and column of C will be ignored.

If shading='nearest', the dimensions of X and Y should be the same as those of C (if not, a ValueError will be raised). The color C[i, j] will be centered on (X[i, j], Y[i, j]).

If X and/or Y are 1-D arrays or column vectors they will be expanded as needed into the appropriate 2D arrays, making a rectangular grid.

shading{‘flat’, ‘nearest’, ‘auto’}, default: :rc:`pcolor.shading`

The fill style for the quadrilateral. Possible values:

‘flat’: A solid color is used for each quad. The color of the quad (i, j), (i+1, j), (i, j+1), (i+1, j+1) is given by C[i, j]. The dimensions of X and Y should be one greater than those of C; if they are the same as C, then a deprecation warning is raised, and the last row and column of C are dropped.
‘nearest’: Each grid point will have a color centered on it, extending halfway between the adjacent grid centers. The dimensions of X and Y must be the same as C.
‘auto’: Choose ‘flat’ if dimensions of X and Y are one larger than C. Choose ‘nearest’ if dimensions are the same.

See /gallery/images_contours_and_fields/pcolormesh_grids for more description.

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

edgecolors{‘none’, None, ‘face’, color, color sequence}, optional

The color of the edges. Defaults to ‘none’. Possible values:

‘none’ or ‘’: No edge.
None: :rc:`patch.edgecolor` will be used. Note that currently :rc:`patch.force_edgecolor` has to be True for this to work.
‘face’: Use the adjacent face color.
A color or sequence of colors will set the edge color.

The singular form edgecolor works as an alias.

alphafloat, default: None

The alpha blending value of the face color, between 0 (transparent) and 1 (opaque). Note: The edgecolor is currently not affected by this.

snapbool, default: False

Whether to snap the mesh to pixel boundaries.

Returns¶

matplotlib.collections.Collection

Other Parameters¶

antialiasedsbool, default: False: The default antialiaseds is False if the default edgecolors=”none” is used. This eliminates artificial lines at patch boundaries, and works regardless of the value of alpha. If edgecolors is not “none”, then the default antialiaseds is taken from :rc:`patch.antialiased`. Stroking the edges may be preferred if alpha is 1, but will cause artifacts otherwise.
dataindexable object, optional: If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).
**kwargs: Additionally, the following arguments are allowed. They are passed along to the ~matplotlib.collections.PolyCollection constructor:
Properties:: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: array-like or scalar or None animated: bool antialiased or aa or antialiaseds: bool or list of bools array: array-like or None capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clim: (vmin: float, vmax: float) clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None cmap: .Colormap or str or None color: color or list of rgba tuples edgecolor or ec or edgecolors: color or list of colors or ‘face’ facecolor or facecolors or fc: color or list of colors figure: .Figure gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or dashes or linestyles or ls: str or tuple or list thereof linewidth or linewidths or lw: float or list of floats mouseover: bool norm: .Normalize or str or None offset_transform or transOffset: unknown offsets: (N, 2) or (2,) array-like path_effects: .AbstractPathEffect paths: list of array-like picker: None or bool or float or callable pickradius: unknown rasterized: bool sizes: ndarray or None sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str urls: list of str or None verts: list of array-like verts_and_codes: unknown visible: bool zorder: float

Notes¶

Masked arrays

X, Y and C may be masked arrays. If either C[i, j], or one of the vertices surrounding C[i, j] (X or Y at [i, j], [i+1, j], [i, j+1], [i+1, j+1]) is masked, nothing is plotted.

Grid orientation

The grid orientation follows the standard matrix convention: An array C with shape (nrows, ncolumns) is plotted with the column number as X and the row number as Y.

pcolorfast(*args, alpha=None, norm=None, cmap=None, vmin=None, vmax=None, data=None, **kwargs)¶

Create a pseudocolor plot with a non-regular rectangular grid.

Call signature:

ax.pcolorfast([X, Y], C, /, **kwargs)

This method is similar to ~.Axes.pcolor and ~.Axes.pcolormesh. It’s designed to provide the fastest pcolor-type plotting with the Agg backend. To achieve this, it uses different algorithms internally depending on the complexity of the input grid (regular rectangular, non-regular rectangular or arbitrary quadrilateral).

Warning

This method is experimental. Compared to ~.Axes.pcolor or ~.Axes.pcolormesh it has some limitations:

It supports only flat shading (no outlines)
It lacks support for log scaling of the axes.
It does not have a have a pyplot wrapper.

Parameters¶

Carray-like

The image data. Supported array shapes are:

(M, N): an image with scalar data. Color-mapping is controlled by cmap, norm, vmin, and vmax.
(M, N, 3): an image with RGB values (0-1 float or 0-255 int).
(M, N, 4): an image with RGBA values (0-1 float or 0-255 int), i.e. including transparency.

The first two dimensions (M, N) define the rows and columns of the image.

This parameter can only be passed positionally.

X, Ytuple or array-like, default: (0, N), (0, M)

X and Y are used to specify the coordinates of the quadrilaterals. There are different ways to do this:

Use tuples X=(xmin, xmax) and Y=(ymin, ymax) to define a uniform rectangular grid.

The tuples define the outer edges of the grid. All individual quadrilaterals will be of the same size. This is the fastest version.
Use 1D arrays X, Y to specify a non-uniform rectangular grid.

In this case X and Y have to be monotonic 1D arrays of length N+1 and M+1, specifying the x and y boundaries of the cells.

The speed is intermediate. Note: The grid is checked, and if found to be uniform the fast version is used.
Use 2D arrays X, Y if you need an arbitrary quadrilateral grid (i.e. if the quadrilaterals are not rectangular).

In this case X and Y are 2D arrays with shape (M + 1, N + 1), specifying the x and y coordinates of the corners of the colored quadrilaterals.

This is the most general, but the slowest to render. It may produce faster and more compact output using ps, pdf, and svg backends, however.

These arguments can only be passed positionally.

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

This parameter is ignored if C is RGB(A).

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

This parameter is ignored if C is RGB(A).

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

This parameter is ignored if C is RGB(A).

alphafloat, default: None

The alpha blending value, between 0 (transparent) and 1 (opaque).

snapbool, default: False

Whether to snap the mesh to pixel boundaries.

Returns¶

.AxesImage or .PcolorImage or .QuadMesh

The return type depends on the type of grid:

.AxesImage for a regular rectangular grid.
.PcolorImage for a non-regular rectangular grid.
.QuadMesh for a non-rectangular grid.

Other Parameters¶

dataindexable object, optional: If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).
**kwargs: Supported additional parameters depend on the type of grid. See return types of image for further description.

pcolormesh(*args, alpha=None, norm=None, cmap=None, vmin=None, vmax=None, shading=None, antialiased=False, data=None, **kwargs)¶

Create a pseudocolor plot with a non-regular rectangular grid.

Call signature:

pcolormesh([X, Y,] C, **kwargs)

X and Y can be used to specify the corners of the quadrilaterals.

Hint

~.Axes.pcolormesh is similar to ~.Axes.pcolor. It is much faster and preferred in most cases. For a detailed discussion on the differences see Differences between pcolor() and pcolormesh().

Parameters¶

C2D array-like

The color-mapped values. Color-mapping is controlled by cmap, norm, vmin, and vmax.

X, Yarray-like, optional

The coordinates of the corners of quadrilaterals of a pcolormesh:

(X[i+1, j], Y[i+1, j])       (X[i+1, j+1], Y[i+1, j+1])
                      +-----+
                      |     |
                      +-----+
    (X[i, j], Y[i, j])       (X[i, j+1], Y[i, j+1])

Note that the column index corresponds to the x-coordinate, and the row index corresponds to y. For details, see the Notes section below.

If shading='flat' the dimensions of X and Y should be one greater than those of C, and the quadrilateral is colored due to the value at C[i, j]. If X, Y and C have equal dimensions, a warning will be raised and the last row and column of C will be ignored.

If shading='nearest' or 'gouraud', the dimensions of X and Y should be the same as those of C (if not, a ValueError will be raised). For 'nearest' the color C[i, j] is centered on (X[i, j], Y[i, j]). For 'gouraud', a smooth interpolation is caried out between the quadrilateral corners.

If X and/or Y are 1-D arrays or column vectors they will be expanded as needed into the appropriate 2D arrays, making a rectangular grid.

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

edgecolors{‘none’, None, ‘face’, color, color sequence}, optional

The color of the edges. Defaults to ‘none’. Possible values:

‘none’ or ‘’: No edge.
None: :rc:`patch.edgecolor` will be used. Note that currently :rc:`patch.force_edgecolor` has to be True for this to work.
‘face’: Use the adjacent face color.
A color or sequence of colors will set the edge color.

The singular form edgecolor works as an alias.

alphafloat, default: None

The alpha blending value, between 0 (transparent) and 1 (opaque).

shading{‘flat’, ‘nearest’, ‘gouraud’, ‘auto’}, optional

The fill style for the quadrilateral; defaults to ‘flat’ or :rc:`pcolor.shading`. Possible values:

‘flat’: A solid color is used for each quad. The color of the quad (i, j), (i+1, j), (i, j+1), (i+1, j+1) is given by C[i, j]. The dimensions of X and Y should be one greater than those of C; if they are the same as C, then a deprecation warning is raised, and the last row and column of C are dropped.
‘nearest’: Each grid point will have a color centered on it, extending halfway between the adjacent grid centers. The dimensions of X and Y must be the same as C.
‘gouraud’: Each quad will be Gouraud shaded: The color of the corners (i’, j’) are given by C[i', j']. The color values of the area in between is interpolated from the corner values. The dimensions of X and Y must be the same as C. When Gouraud shading is used, edgecolors is ignored.
‘auto’: Choose ‘flat’ if dimensions of X and Y are one larger than C. Choose ‘nearest’ if dimensions are the same.

See /gallery/images_contours_and_fields/pcolormesh_grids for more description.

snapbool, default: False

Whether to snap the mesh to pixel boundaries.

rasterizedbool, optional

Rasterize the pcolormesh when drawing vector graphics. This can speed up rendering and produce smaller files for large data sets. See also /gallery/misc/rasterization_demo.

Returns¶

matplotlib.collections.QuadMesh

Other Parameters¶

dataindexable object, optional: If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).
**kwargs: Additionally, the following arguments are allowed. They are passed along to the ~matplotlib.collections.QuadMesh constructor:
Properties:: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: array-like or scalar or None animated: bool antialiased or aa or antialiaseds: bool or list of bools array: (M, N) array-like or M*N array-like capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clim: (vmin: float, vmax: float) clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None cmap: .Colormap or str or None color: color or list of rgba tuples edgecolor or ec or edgecolors: color or list of colors or ‘face’ facecolor or facecolors or fc: color or list of colors figure: .Figure gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or dashes or linestyles or ls: str or tuple or list thereof linewidth or linewidths or lw: float or list of floats mouseover: bool norm: .Normalize or str or None offset_transform or transOffset: unknown offsets: (N, 2) or (2,) array-like path_effects: .AbstractPathEffect picker: None or bool or float or callable pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str urls: list of str or None visible: bool zorder: float

Notes¶

Masked arrays

C may be a masked array. If C[i, j] is masked, the corresponding quadrilateral will be transparent. Masking of X and Y is not supported. Use ~.Axes.pcolor if you need this functionality.

Grid orientation

The grid orientation follows the standard matrix convention: An array C with shape (nrows, ncolumns) is plotted with the column number as X and the row number as Y.

Differences between pcolor() and pcolormesh()

Both methods are used to create a pseudocolor plot of a 2D array using quadrilaterals.

The main difference lies in the created object and internal data handling: While ~.Axes.pcolor returns a .PolyCollection, ~.Axes.pcolormesh returns a .QuadMesh. The latter is more specialized for the given purpose and thus is faster. It should almost always be preferred.

There is also a slight difference in the handling of masked arrays. Both ~.Axes.pcolor and ~.Axes.pcolormesh support masked arrays for C. However, only ~.Axes.pcolor supports masked arrays for X and Y. The reason lies in the internal handling of the masked values. ~.Axes.pcolor leaves out the respective polygons from the PolyCollection. ~.Axes.pcolormesh sets the facecolor of the masked elements to transparent. You can see the difference when using edgecolors. While all edges are drawn irrespective of masking in a QuadMesh, the edge between two adjacent masked quadrilaterals in ~.Axes.pcolor is not drawn as the corresponding polygons do not exist in the PolyCollection.

Another difference is the support of Gouraud shading in ~.Axes.pcolormesh, which is not available with ~.Axes.pcolor.

phase_spectrum(x, Fs=None, Fc=None, window=None, pad_to=None, sides=None, *, data=None, **kwargs)¶

Plot the phase spectrum.

Compute the phase spectrum (unwrapped angle spectrum) of x. Data is padded to a length of pad_to and the windowing function window is applied to the signal.

Parameters¶

x1-D array or sequence: Array or sequence containing the data
Fsfloat, default: 2: The sampling frequency (samples per time unit). It is used to calculate the Fourier frequencies, freqs, in cycles per time unit.
windowcallable or ndarray, default: .window_hanning: A function or a vector of length NFFT. To create window vectors see .window_hanning, .window_none, numpy.blackman, numpy.hamming, numpy.bartlett, scipy.signal, scipy.signal.get_window, etc. If a function is passed as the argument, it must take a data segment as an argument and return the windowed version of the segment.
sides{‘default’, ‘onesided’, ‘twosided’}, optional: Which sides of the spectrum to return. ‘default’ is one-sided for real data and two-sided for complex data. ‘onesided’ forces the return of a one-sided spectrum, while ‘twosided’ forces two-sided.
pad_toint, optional: The number of points to which the data segment is padded when performing the FFT. While not increasing the actual resolution of the spectrum (the minimum distance between resolvable peaks), this can give more points in the plot, allowing for more detail. This corresponds to the n parameter in the call to ~numpy.fft.fft. The default is None, which sets pad_to equal to the length of the input signal (i.e. no padding).
Fcint, default: 0: The center frequency of x, which offsets the x extents of the plot to reflect the frequency range used when a signal is acquired and then filtered and downsampled to baseband.

Returns¶

spectrum1-D array: The values for the phase spectrum in radians (real valued).
freqs1-D array: The frequencies corresponding to the elements in spectrum.
line~matplotlib.lines.Line2D: The line created by this function.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x

**kwargs

Keyword arguments control the .Line2D properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Parameters¶

x1D array-like

The wedge sizes.

explodearray-like, default: None

If not None, is a len(x) array which specifies the fraction of the radius with which to offset each wedge.

labelslist, default: None

A sequence of strings providing the labels for each wedge

colorsarray-like, default: None

A sequence of colors through which the pie chart will cycle. If None, will use the colors in the currently active cycle.

autopctNone or str or callable, default: None

If not None, is a string or function used to label the wedges with their numeric value. The label will be placed inside the wedge. If it is a format string, the label will be fmt % pct. If it is a function, it will be called.

pctdistancefloat, default: 0.6

The ratio between the center of each pie slice and the start of the text generated by autopct. Ignored if autopct is None.

shadowbool, default: False

Draw a shadow beneath the pie.

normalizebool, default: True

When True, always make a full pie by normalizing x so that sum(x) == 1. False makes a partial pie if sum(x) <= 1 and raises a ValueError for sum(x) > 1.

labeldistancefloat or None, default: 1.1

The radial distance at which the pie labels are drawn. If set to None, label are not drawn, but are stored for use in legend()

startanglefloat, default: 0 degrees

The angle by which the start of the pie is rotated, counterclockwise from the x-axis.

radiusfloat, default: 1

The radius of the pie.

counterclockbool, default: True

Specify fractions direction, clockwise or counterclockwise.

wedgepropsdict, default: None

Dict of arguments passed to the wedge objects making the pie. For example, you can pass in wedgeprops = {'linewidth': 3} to set the width of the wedge border lines equal to 3. For more details, look at the doc/arguments of the wedge object. By default clip_on=False.

textpropsdict, default: None

Dict of arguments to pass to the text objects.

center(float, float), default: (0, 0)

The coordinates of the center of the chart.

framebool, default: False

Plot Axes frame with the chart if true.

rotatelabelsbool, default: False

Rotate each label to the angle of the corresponding slice if true.

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, explode, labels, colors

Returns¶

patcheslist: A sequence of matplotlib.patches.Wedge instances
textslist: A list of the label .Text instances.
autotextslist: A list of .Text instances for the numeric labels. This will only be returned if the parameter autopct is not None.

Notes¶

The pie chart will probably look best if the figure and Axes are square, or the Axes aspect is equal. This method sets the aspect ratio of the axis to “equal”. The Axes aspect ratio can be controlled with .Axes.set_aspect.

plot(*args, scalex=True, scaley=True, data=None, **kwargs)¶

Plot y versus x as lines and/or markers.

Call signatures:

plot([x], y, [fmt], *, data=None, **kwargs)
plot([x], y, [fmt], [x2], y2, [fmt2], ..., **kwargs)

The coordinates of the points or line nodes are given by x, y.

The optional parameter fmt is a convenient way for defining basic formatting like color, marker and linestyle. It’s a shortcut string notation described in the Notes section below.

>>> plot(x, y)        # plot x and y using default line style and color
>>> plot(x, y, 'bo')  # plot x and y using blue circle markers
>>> plot(y)           # plot y using x as index array 0..N-1
>>> plot(y, 'r+')     # ditto, but with red plusses

You can use .Line2D properties as keyword arguments for more control on the appearance. Line properties and fmt can be mixed. The following two calls yield identical results:

>>> plot(x, y, 'go--', linewidth=2, markersize=12)
>>> plot(x, y, color='green', marker='o', linestyle='dashed',
...      linewidth=2, markersize=12)

When conflicting with fmt, keyword arguments take precedence.

Plotting labelled data

There’s a convenient way for plotting objects with labelled data (i.e. data that can be accessed by index obj['y']). Instead of giving the data in x and y, you can provide the object in the data parameter and just give the labels for x and y:

>>> plot('xlabel', 'ylabel', data=obj)

All indexable objects are supported. This could e.g. be a dict, a pandas.DataFrame or a structured numpy array.

Plotting multiple sets of data

There are various ways to plot multiple sets of data.

The most straight forward way is just to call plot multiple times. Example:
```
>>> plot(x1, y1, 'bo')
>>> plot(x2, y2, 'go')
```
If x and/or y are 2D arrays a separate data set will be drawn for every column. If both x and y are 2D, they must have the same shape. If only one of them is 2D with shape (N, m) the other must have length N and will be used for every data set m.

Example:
```
>>> x = [1, 2, 3]
>>> y = np.array([[1, 2], [3, 4], [5, 6]])
>>> plot(x, y)
```
is equivalent to:
```
>>> for col in range(y.shape[1]):
...     plot(x, y[:, col])
```
The third way is to specify multiple sets of [x], y, [fmt] groups:
```
>>> plot(x1, y1, 'g^', x2, y2, 'g-')
```
In this case, any additional keyword argument applies to all datasets. Also this syntax cannot be combined with the data parameter.

By default, each line is assigned a different style specified by a ‘style cycle’. The fmt and line property parameters are only necessary if you want explicit deviations from these defaults. Alternatively, you can also change the style cycle using :rc:`axes.prop_cycle`.

Parameters¶

x, yarray-like or scalar

The horizontal / vertical coordinates of the data points. x values are optional and default to range(len(y)).

Commonly, these parameters are 1D arrays.

They can also be scalars, or two-dimensional (in that case, the columns represent separate data sets).

These arguments cannot be passed as keywords.

fmtstr, optional

A format string, e.g. ‘ro’ for red circles. See the Notes section for a full description of the format strings.

Format strings are just an abbreviation for quickly setting basic line properties. All of these and more can also be controlled by keyword arguments.

This argument cannot be passed as keyword.

dataindexable object, optional

An object with labelled data. If given, provide the label names to plot in x and y.

Note

Technically there’s a slight ambiguity in calls where the second label is a valid fmt. plot('n', 'o', data=obj) could be plt(x, y) or plt(y, fmt). In such cases, the former interpretation is chosen, but a warning is issued. You may suppress the warning by adding an empty format string plot('n', 'o', '', data=obj).

Returns¶

list of .Line2D: A list of lines representing the plotted data.

Other Parameters¶

scalex, scaleybool, default: True

These parameters determine if the view limits are adapted to the data limits. The values are passed on to ~.axes.Axes.autoscale_view.

**kwargs.Line2D properties, optional

kwargs are used to specify properties like a line label (for auto legends), linewidth, antialiasing, marker face color. Example:

>>> plot([1, 2, 3], [1, 2, 3], 'go-', label='line 1', linewidth=2)
>>> plot([1, 2, 3], [1, 4, 9], 'rs', label='line 2')

If you specify multiple lines with one plot call, the kwargs apply to all those lines. In case the label object is iterable, each element is used as labels for each set of data.

Here is a list of available .Line2D properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Notes¶

Format Strings

A format string consists of a part for color, marker and line:

fmt = '[marker][line][color]'

Each of them is optional. If not provided, the value from the style cycle is used. Exception: If line is given, but no marker, the data will be a line without markers.

Other combinations such as [color][marker][line] are also supported, but note that their parsing may be ambiguous.

Markers

character	description
`'.'`	point marker
`','`	pixel marker
`'o'`	circle marker
`'v'`	triangle_down marker
`'^'`	triangle_up marker
`'<'`	triangle_left marker
`'>'`	triangle_right marker
`'1'`	tri_down marker
`'2'`	tri_up marker
`'3'`	tri_left marker
`'4'`	tri_right marker
`'8'`	octagon marker
`'s'`	square marker
`'p'`	pentagon marker
`'P'`	plus (filled) marker
`'*'`	star marker
`'h'`	hexagon1 marker
`'H'`	hexagon2 marker
`'+'`	plus marker
`'x'`	x marker
`'X'`	x (filled) marker
`'D'`	diamond marker
`'d'`	thin_diamond marker
`'\|'`	vline marker
`'_'`	hline marker

Line Styles

character	description
`'-'`	solid line style
`'--'`	dashed line style
`'-.'`	dash-dot line style
`':'`	dotted line style

Example format strings:

'b'    # blue markers with default shape
'or'   # red circles
'-g'   # green solid line
'--'   # dashed line with default color
'^k:'  # black triangle_up markers connected by a dotted line

Colors

The supported color abbreviations are the single letter codes

character	color
`'b'`	blue
`'g'`	green
`'r'`	red
`'c'`	cyan
`'m'`	magenta
`'y'`	yellow
`'k'`	black
`'w'`	white

and the 'CN' colors that index into the default property cycle.

If the color is the only part of the format string, you can additionally use any matplotlib.colors spec, e.g. full names ('green') or hex strings ('#008000').

plot_date(x, y, fmt='o', tz=None, xdate=True, ydate=False, *, data=None, **kwargs)¶

[Discouraged] Plot coercing the axis to treat floats as dates.

Discouraged

This method exists for historic reasons and will be deprecated in the future.

datetime-like data should directly be plotted using ~.Axes.plot.
If you need to plot plain numeric data as date-format or need to set a timezone, call ax.xaxis.axis_date / ax.yaxis.axis_date before ~.Axes.plot. See .Axis.axis_date.

Similar to .plot, this plots y vs. x as lines or markers. However, the axis labels are formatted as dates depending on xdate and ydate. Note that .plot will work with datetime and numpy.datetime64 objects without resorting to this method.

Parameters¶

x, yarray-like: The coordinates of the data points. If xdate or ydate is True, the respective values x or y are interpreted as Matplotlib dates.
fmtstr, optional: The plot format string. For details, see the corresponding parameter in .plot.
tztimezone string or datetime.tzinfo, default: :rc:`timezone`: The time zone to use in labeling dates.
xdatebool, default: True: If True, the x-axis will be interpreted as Matplotlib dates.
ydatebool, default: False: If True, the y-axis will be interpreted as Matplotlib dates.

Returns¶

list of .Line2D: Objects representing the plotted data.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, y

**kwargs

Keyword arguments control the .Line2D properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Notes¶

If you are using custom date tickers and formatters, it may be necessary to set the formatters/locators after the call to .plot_date. .plot_date will set the default tick locator to .AutoDateLocator (if the tick locator is not already set to a .DateLocator instance) and the default tick formatter to .AutoDateFormatter (if the tick formatter is not already set to a .DateFormatter instance).

properties()¶: Return a dictionary of all the properties of the artist.

psd(x, NFFT=None, Fs=None, Fc=None, detrend=None, window=None, noverlap=None, pad_to=None, sides=None, scale_by_freq=None, return_line=None, *, data=None, **kwargs)¶

Plot the power spectral density.

The power spectral density \(P_{xx}\) by Welch’s average periodogram method. The vector x is divided into NFFT length segments. Each segment is detrended by function detrend and windowed by function window. noverlap gives the length of the overlap between segments. The \(|\mathrm{fft}(i)|^2\) of each segment \(i\) are averaged to compute \(P_{xx}\), with a scaling to correct for power loss due to windowing.

If len(x) < NFFT, it will be zero padded to NFFT.

Parameters¶

x1-D array or sequence: Array or sequence containing the data
Fsfloat, default: 2: The sampling frequency (samples per time unit). It is used to calculate the Fourier frequencies, freqs, in cycles per time unit.
windowcallable or ndarray, default: .window_hanning: A function or a vector of length NFFT. To create window vectors see .window_hanning, .window_none, numpy.blackman, numpy.hamming, numpy.bartlett, scipy.signal, scipy.signal.get_window, etc. If a function is passed as the argument, it must take a data segment as an argument and return the windowed version of the segment.
sides{‘default’, ‘onesided’, ‘twosided’}, optional: Which sides of the spectrum to return. ‘default’ is one-sided for real data and two-sided for complex data. ‘onesided’ forces the return of a one-sided spectrum, while ‘twosided’ forces two-sided.
pad_toint, optional: The number of points to which the data segment is padded when performing the FFT. This can be different from NFFT, which specifies the number of data points used. While not increasing the actual resolution of the spectrum (the minimum distance between resolvable peaks), this can give more points in the plot, allowing for more detail. This corresponds to the n parameter in the call to ~numpy.fft.fft. The default is None, which sets pad_to equal to NFFT
NFFTint, default: 256: The number of data points used in each block for the FFT. A power 2 is most efficient. This should NOT be used to get zero padding, or the scaling of the result will be incorrect; use pad_to for this instead.
detrend{‘none’, ‘mean’, ‘linear’} or callable, default: ‘none’: The function applied to each segment before fft-ing, designed to remove the mean or linear trend. Unlike in MATLAB, where the detrend parameter is a vector, in Matplotlib it is a function. The mlab module defines .detrend_none, .detrend_mean, and .detrend_linear, but you can use a custom function as well. You can also use a string to choose one of the functions: ‘none’ calls .detrend_none. ‘mean’ calls .detrend_mean. ‘linear’ calls .detrend_linear.
scale_by_freqbool, default: True: Whether the resulting density values should be scaled by the scaling frequency, which gives density in units of 1/Hz. This allows for integration over the returned frequency values. The default is True for MATLAB compatibility.
noverlapint, default: 0 (no overlap): The number of points of overlap between segments.
Fcint, default: 0: The center frequency of x, which offsets the x extents of the plot to reflect the frequency range used when a signal is acquired and then filtered and downsampled to baseband.
return_linebool, default: False: Whether to include the line object plotted in the returned values.

Returns¶

Pxx1-D array: The values for the power spectrum \(P_{xx}\) before scaling (real valued).
freqs1-D array: The frequencies corresponding to the elements in Pxx.
line~matplotlib.lines.Line2D: The line created by this function. Only returned if return_line is True.

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x

**kwargs

Keyword arguments control the .Line2D properties:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

Notes¶

For plotting, the power is plotted as \(10\log_{10}(P_{xx})\) for decibels, though Pxx itself is returned.

References¶

Bendat & Piersol – Random Data: Analysis and Measurement Procedures, John Wiley & Sons (1986)

quiver(*args, data=None, **kwargs)¶

Plot a 2D field of arrows.

Call signature:

quiver([X, Y], U, V, [C], **kwargs)

X, Y define the arrow locations, U, V define the arrow directions, and C optionally sets the color.

Arrow length

The default settings auto-scales the length of the arrows to a reasonable size. To change this behavior see the scale and scale_units parameters.

Arrow shape

The arrow shape is determined by width, headwidth, headlength and headaxislength. See the notes below.

Arrow styling

Each arrow is internally represented by a filled polygon with a default edge linewidth of 0. As a result, an arrow is rather a filled area, not a line with a head, and .PolyCollection properties like linewidth, edgecolor, facecolor, etc. act accordingly.

Parameters¶

X, Y1D or 2D array-like, optional

The x and y coordinates of the arrow locations.

If not given, they will be generated as a uniform integer meshgrid based on the dimensions of U and V.

If X and Y are 1D but U, V are 2D, X, Y are expanded to 2D using X, Y = np.meshgrid(X, Y). In this case len(X) and len(Y) must match the column and row dimensions of U and V.

U, V1D or 2D array-like

The x and y direction components of the arrow vectors. The interpretation of these components (in data or in screen space) depends on angles.

U and V must have the same number of elements, matching the number of arrow locations in X, Y. U and V may be masked. Locations masked in any of U, V, and C will not be drawn.

C1D or 2D array-like, optional

Numeric data that defines the arrow colors by colormapping via norm and cmap.

This does not support explicit colors. If you want to set colors directly, use color instead. The size of C must match the number of arrow locations.

angles{‘uv’, ‘xy’} or array-like, default: ‘uv’

Method for determining the angle of the arrows.

‘uv’: Arrow direction in screen coordinates. Use this if the arrows symbolize a quantity that is not based on X, Y data coordinates.

If U == V the orientation of the arrow on the plot is 45 degrees counter-clockwise from the horizontal axis (positive to the right).
‘xy’: Arrow direction in data coordinates, i.e. the arrows point from (x, y) to (x+u, y+v). Use this e.g. for plotting a gradient field.
Arbitrary angles may be specified explicitly as an array of values in degrees, counter-clockwise from the horizontal axis.

In this case U, V is only used to determine the length of the arrows.

Note: inverting a data axis will correspondingly invert the arrows only with angles='xy'.

pivot{‘tail’, ‘mid’, ‘middle’, ‘tip’}, default: ‘tail’

The part of the arrow that is anchored to the X, Y grid. The arrow rotates about this point.

‘mid’ is a synonym for ‘middle’.

scalefloat, optional

Scales the length of the arrow inversely.

Number of data units per arrow length unit, e.g., m/s per plot width; a smaller scale parameter makes the arrow longer. Default is None.

If None, a simple autoscaling algorithm is used, based on the average vector length and the number of vectors. The arrow length unit is given by the scale_units parameter.

scale_units{‘width’, ‘height’, ‘dots’, ‘inches’, ‘x’, ‘y’, ‘xy’}, optional

If the scale kwarg is None, the arrow length unit. Default is None.

e.g. scale_units is ‘inches’, scale is 2.0, and (u, v) = (1, 0), then the vector will be 0.5 inches long.

If scale_units is ‘width’ or ‘height’, then the vector will be half the width/height of the axes.

If scale_units is ‘x’ then the vector will be 0.5 x-axis units. To plot vectors in the x-y plane, with u and v having the same units as x and y, use angles='xy', scale_units='xy', scale=1.

units{‘width’, ‘height’, ‘dots’, ‘inches’, ‘x’, ‘y’, ‘xy’}, default: ‘width’

Affects the arrow size (except for the length). In particular, the shaft width is measured in multiples of this unit.

Supported values are:

‘width’, ‘height’: The width or height of the Axes.
‘dots’, ‘inches’: Pixels or inches based on the figure dpi.
‘x’, ‘y’, ‘xy’: X, Y or \(\sqrt{X^2 + Y^2}\) in data units.

The following table summarizes how these values affect the visible arrow size under zooming and figure size changes:

units	zoom	figure size change
‘x’, ‘y’, ‘xy’	arrow size scales
‘width’, ‘height’		arrow size scales
‘dots’, ‘inches’

widthfloat, optional

Shaft width in arrow units. All head parameters are relative to width.

The default depends on choice of units above, and number of vectors; a typical starting value is about 0.005 times the width of the plot.

headwidthfloat, default: 3

Head width as multiple of shaft width. See the notes below.

headlengthfloat, default: 5

Head length as multiple of shaft width. See the notes below.

headaxislengthfloat, default: 4.5

Head length at shaft intersection as multiple of shaft width. See the notes below.

minshaftfloat, default: 1

Length below which arrow scales, in units of head length. Do not set this to less than 1, or small arrows will look terrible!

minlengthfloat, default: 1

Minimum length as a multiple of shaft width; if an arrow length is less than this, plot a dot (hexagon) of this diameter instead.

colorcolor or color sequence, optional

Explicit color(s) for the arrows. If C has been set, color has no effect.

This is a synonym for the .PolyCollection facecolor parameter.

Other Parameters¶

dataindexable object, optional

If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).

**kwargs~matplotlib.collections.PolyCollection properties, optional

All other keyword arguments are passed on to .PolyCollection:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: array-like or scalar or None animated: bool antialiased or aa or antialiaseds: bool or list of bools array: array-like or None capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} clim: (vmin: float, vmax: float) clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None cmap: .Colormap or str or None color: color or list of rgba tuples edgecolor or ec or edgecolors: color or list of colors or ‘face’ facecolor or facecolors or fc: color or list of colors figure: .Figure gid: str hatch: {‘/’, ‘\’, ‘|’, ‘-’, ‘+’, ‘x’, ‘o’, ‘O’, ‘.’, ‘*’} in_layout: bool joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} label: object linestyle or dashes or linestyles or ls: str or tuple or list thereof linewidth or linewidths or lw: float or list of floats mouseover: bool norm: .Normalize or str or None offset_transform or transOffset: unknown offsets: (N, 2) or (2,) array-like path_effects: .AbstractPathEffect paths: list of array-like picker: None or bool or float or callable pickradius: unknown rasterized: bool sizes: ndarray or None sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str urls: list of str or None verts: list of array-like verts_and_codes: unknown visible: bool zorder: float

Returns¶

~matplotlib.quiver.Quiver

Notes¶

Arrow shape

The arrow is drawn as a polygon using the nodes as shown below. The values headwidth, headlength, and headaxislength are in units of width.

The defaults give a slightly swept-back arrow. Here are some guidelines how to get other head shapes:

To make the head a triangle, make headaxislength the same as headlength.
To make the arrow more pointed, reduce headwidth or increase headlength and headaxislength.
To make the head smaller relative to the shaft, scale down all the head parameters proportionally.
To remove the head completely, set all head parameters to 0.
To get a diamond-shaped head, make headaxislength larger than headlength.
Warning: For headaxislength < (headlength / headwidth), the “headaxis” nodes (i.e. the ones connecting the head with the shaft) will protrude out of the head in forward direction so that the arrow head looks broken.

quiverkey(Q, X, Y, U, label, **kwargs)¶

Add a key to a quiver plot.

The positioning of the key depends on X, Y, coordinates, and labelpos. If labelpos is ‘N’ or ‘S’, X, Y give the position of the middle of the key arrow. If labelpos is ‘E’, X, Y positions the head, and if labelpos is ‘W’, X, Y positions the tail; in either of these two cases, X, Y is somewhere in the middle of the arrow+label key object.

Parameters¶

Qmatplotlib.quiver.Quiver: A .Quiver object as returned by a call to ~.Axes.quiver().
X, Yfloat: The location of the key.
Ufloat: The length of the key.
labelstr: The key label (e.g., length and units of the key).
anglefloat, default: 0: The angle of the key arrow, in degrees anti-clockwise from the x-axis.
coordinates{‘axes’, ‘figure’, ‘data’, ‘inches’}, default: ‘axes’: Coordinate system and units for X, Y: ‘axes’ and ‘figure’ are normalized coordinate systems with (0, 0) in the lower left and (1, 1) in the upper right; ‘data’ are the axes data coordinates (used for the locations of the vectors in the quiver plot itself); ‘inches’ is position in the figure in inches, with (0, 0) at the lower left corner.
colorcolor: Overrides face and edge colors from Q.
labelpos{‘N’, ‘S’, ‘E’, ‘W’}: Position the label above, below, to the right, to the left of the arrow, respectively.
labelsepfloat, default: 0.1: Distance in inches between the arrow and the label.
labelcolorcolor, default: :rc:`text.color`: Label color.
fontpropertiesdict, optional: A dictionary with keyword arguments accepted by the ~matplotlib.font_manager.FontProperties initializer: family, style, variant, size, weight.
**kwargs: Any additional keyword arguments are used to override vector properties taken from Q.

redraw_in_frame()¶: Efficiently redraw Axes data, but not axis ticks, labels, etc.

relim(visible_only=False)¶

Recompute the data limits based on current artists.

At present, .Collection instances are not supported.

Parameters¶

visible_onlybool, default: False: Whether to exclude invisible artists.

remove()¶

Remove the artist from the figure if possible.

The effect will not be visible until the figure is redrawn, e.g., with .FigureCanvasBase.draw_idle. Call ~.axes.Axes.relim to update the axes limits if desired.

Note: ~.axes.Axes.relim will not see collections even if the collection was added to the axes with autolim = True.

Note: there is no support for removing the artist’s legend entry.

remove_callback(oid)¶: Remove a callback based on its observer id.

See Also¶

add_callback

reset_position()¶

Reset the active position to the original position.

This undoes changes to the active position (as defined in .set_position) which may have been performed to satisfy fixed-aspect constraints.

scatter(x, y, s=None, c=None, marker=None, cmap=None, norm=None, vmin=None, vmax=None, alpha=None, linewidths=None, *, edgecolors=None, plotnonfinite=False, data=None, **kwargs)¶

A scatter plot of y vs. x with varying marker size and/or color.

Parameters¶

x, yfloat or array-like, shape (n, )

The data positions.

sfloat or array-like, shape (n, ), optional

The marker size in points**2 (typographic points are 1/72 in.). Default is rcParams['lines.markersize'] ** 2.

carray-like or list of colors or color, optional

The marker colors. Possible values:

A scalar or sequence of n numbers to be mapped to colors using cmap and norm.
A 2D array in which the rows are RGB or RGBA.
A sequence of colors of length n.
A single color format string.

Note that c should not be a single numeric RGB or RGBA sequence because that is indistinguishable from an array of values to be colormapped. If you want to specify the same RGB or RGBA value for all points, use a 2D array with a single row. Otherwise, value- matching will have precedence in case of a size matching with x and y.

If you wish to specify a single color for all points prefer the color keyword argument.

Defaults to None. In that case the marker color is determined by the value of color, facecolor or facecolors. In case those are not specified or None, the marker color is determined by the next color of the Axes’ current “shape and fill” color cycle. This cycle defaults to :rc:`axes.prop_cycle`.

marker~.markers.MarkerStyle, default: :rc:`scatter.marker`

The marker style. marker can be either an instance of the class or the text shorthand for a particular marker. See matplotlib.markers for more information about marker styles.

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

This parameter is ignored if c is RGB(A).

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

This parameter is ignored if c is RGB(A).

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

This parameter is ignored if c is RGB(A).

alphafloat, default: None

The alpha blending value, between 0 (transparent) and 1 (opaque).

linewidthsfloat or array-like, default: :rc:`lines.linewidth`

The linewidth of the marker edges. Note: The default edgecolors is ‘face’. You may want to change this as well.

edgecolors{‘face’, ‘none’, None} or color or sequence of color, default: :rc:`scatter.edgecolors`

The edge color of the marker. Possible values:

‘face’: The edge color will always be the same as the face color.
‘none’: No patch boundary will be drawn.
A color or sequence of colors.

For non-filled markers, edgecolors is ignored. Instead, the color is determined like with ‘face’, i.e. from c, colors, or facecolors.

plotnonfinitebool, default: False

Whether to plot points with nonfinite c (i.e. inf, -inf or nan). If True the points are drawn with the bad colormap color (see .Colormap.set_bad).

Returns¶

~matplotlib.collections.PathCollection

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, y, s, linewidths, edgecolors, c, facecolor, facecolors, color

**kwargs : ~matplotlib.collections.Collection properties

Notes¶

The .plot function will be faster for scatterplots where markers don’t vary in size or color.
Any or all of x, y, s, and c may be masked arrays, in which case all masks will be combined and only unmasked points will be plotted.
Fundamentally, scatter works with 1D arrays; x, y, s, and c may be input as N-D arrays, but within scatter they will be flattened. The exception is c, which will be flattened only if its size matches the size of x and y.

secondary_xaxis(location, *, functions=None, **kwargs)¶

Add a second x-axis to this Axes.

For example if we want to have a second scale for the data plotted on the xaxis.

Warnings¶

This method is experimental as of 3.1, and the API may change.

Parameters¶

location{‘top’, ‘bottom’, ‘left’, ‘right’} or float: The position to put the secondary axis. Strings can be ‘top’ or ‘bottom’ for orientation=’x’ and ‘right’ or ‘left’ for orientation=’y’. A float indicates the relative position on the parent axes to put the new axes, 0.0 being the bottom (or left) and 1.0 being the top (or right).

functions : 2-tuple of func, or Transform with an inverse

If a 2-tuple of functions, the user specifies the transform function and its inverse. i.e. functions=(lambda x: 2 / x, lambda x: 2 / x) would be an reciprocal transform with a factor of 2. Both functions must accept numpy arrays as input.

The user can also directly supply a subclass of .transforms.Transform so long as it has an inverse.

See /gallery/subplots_axes_and_figures/secondary_axis for examples of making these conversions.

Returns¶

ax : axes._secondary_axes.SecondaryAxis

Other Parameters¶

**kwargs~matplotlib.axes.Axes properties.: Other miscellaneous axes parameters.

Examples¶

The main axis shows frequency, and the secondary axis shows period.

(Source code, png, hires.png, pdf)

secondary_yaxis(location, *, functions=None, **kwargs)¶

Add a second y-axis to this Axes.

For example if we want to have a second scale for the data plotted on the yaxis.

Warnings¶

This method is experimental as of 3.1, and the API may change.

Parameters¶

location{‘top’, ‘bottom’, ‘left’, ‘right’} or float: The position to put the secondary axis. Strings can be ‘top’ or ‘bottom’ for orientation=’x’ and ‘right’ or ‘left’ for orientation=’y’. A float indicates the relative position on the parent axes to put the new axes, 0.0 being the bottom (or left) and 1.0 being the top (or right).

functions : 2-tuple of func, or Transform with an inverse

If a 2-tuple of functions, the user specifies the transform function and its inverse. i.e. functions=(lambda x: 2 / x, lambda x: 2 / x) would be an reciprocal transform with a factor of 2. Both functions must accept numpy arrays as input.

The user can also directly supply a subclass of .transforms.Transform so long as it has an inverse.

See /gallery/subplots_axes_and_figures/secondary_axis for examples of making these conversions.

Returns¶

ax : axes._secondary_axes.SecondaryAxis

Other Parameters¶

**kwargs~matplotlib.axes.Axes properties.: Other miscellaneous axes parameters.

Examples¶

Add a secondary Axes that converts from radians to degrees

(Source code, png, hires.png, pdf)

semilogx(*args, **kwargs)¶

Make a plot with log scaling on the x axis.

Call signatures:

semilogx([x], y, [fmt], data=None, **kwargs)
semilogx([x], y, [fmt], [x2], y2, [fmt2], ..., **kwargs)

This is just a thin wrapper around .plot which additionally changes the x-axis to log scaling. All of the concepts and parameters of plot can be used here as well.

The additional parameters base, subs, and nonpositive control the x-axis properties. They are just forwarded to .Axes.set_xscale.

Parameters¶

basefloat, default: 10: Base of the x logarithm.
subsarray-like, optional: The location of the minor xticks. If None, reasonable locations are automatically chosen depending on the number of decades in the plot. See .Axes.set_xscale for details.
nonpositive{‘mask’, ‘clip’}, default: ‘mask’: Non-positive values in x can be masked as invalid, or clipped to a very small positive number.
**kwargs: All parameters supported by .plot.

Returns¶

list of .Line2D: Objects representing the plotted data.

semilogy(*args, **kwargs)¶

Make a plot with log scaling on the y axis.

Call signatures:

semilogy([x], y, [fmt], data=None, **kwargs)
semilogy([x], y, [fmt], [x2], y2, [fmt2], ..., **kwargs)

This is just a thin wrapper around .plot which additionally changes the y-axis to log scaling. All of the concepts and parameters of plot can be used here as well.

The additional parameters base, subs, and nonpositive control the y-axis properties. They are just forwarded to .Axes.set_yscale.

Parameters¶

basefloat, default: 10: Base of the y logarithm.
subsarray-like, optional: The location of the minor yticks. If None, reasonable locations are automatically chosen depending on the number of decades in the plot. See .Axes.set_yscale for details.
nonpositive{‘mask’, ‘clip’}, default: ‘mask’: Non-positive values in y can be masked as invalid, or clipped to a very small positive number.
**kwargs: All parameters supported by .plot.

Returns¶

list of .Line2D: Objects representing the plotted data.

set(*, adjustable=<UNSET>, agg_filter=<UNSET>, alpha=<UNSET>, anchor=<UNSET>, animated=<UNSET>, aspect=<UNSET>, autoscale_on=<UNSET>, autoscalex_on=<UNSET>, autoscaley_on=<UNSET>, axes_locator=<UNSET>, axisbelow=<UNSET>, box_aspect=<UNSET>, clip_box=<UNSET>, clip_on=<UNSET>, clip_path=<UNSET>, facecolor=<UNSET>, frame_on=<UNSET>, gid=<UNSET>, in_layout=<UNSET>, label=<UNSET>, mouseover=<UNSET>, navigate=<UNSET>, path_effects=<UNSET>, picker=<UNSET>, position=<UNSET>, prop_cycle=<UNSET>, rasterization_zorder=<UNSET>, rasterized=<UNSET>, rgrids=<UNSET>, rlabel_position=<UNSET>, rlim=<UNSET>, rmax=<UNSET>, rmin=<UNSET>, rorigin=<UNSET>, rscale=<UNSET>, rticks=<UNSET>, sketch_params=<UNSET>, snap=<UNSET>, theta_direction=<UNSET>, theta_offset=<UNSET>, theta_zero_location=<UNSET>, thetagrids=<UNSET>, thetalim=<UNSET>, thetamax=<UNSET>, thetamin=<UNSET>, title=<UNSET>, transform=<UNSET>, url=<UNSET>, visible=<UNSET>, xbound=<UNSET>, xlabel=<UNSET>, xlim=<UNSET>, xmargin=<UNSET>, xscale=<UNSET>, xticklabels=<UNSET>, xticks=<UNSET>, ybound=<UNSET>, ylabel=<UNSET>, ylim=<UNSET>, ymargin=<UNSET>, yscale=<UNSET>, yticklabels=<UNSET>, yticks=<UNSET>, zorder=<UNSET>)¶

Set multiple properties at once.

Supported properties are

Properties:: adjustable: {‘box’, ‘datalim’} agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None anchor: (float, float) or {‘C’, ‘SW’, ‘S’, ‘SE’, ‘E’, ‘NE’, …} animated: bool aspect: {‘auto’, ‘equal’} or float autoscale_on: bool autoscalex_on: unknown autoscaley_on: unknown axes_locator: Callable[[Axes, Renderer], Bbox] axisbelow: bool or ‘line’ box_aspect: float or None clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None facecolor or fc: color figure: .Figure frame_on: bool gid: str in_layout: bool label: object mouseover: bool navigate: bool navigate_mode: unknown path_effects: .AbstractPathEffect picker: None or bool or float or callable position: [left, bottom, width, height] or ~matplotlib.transforms.Bbox prop_cycle: unknown rasterization_zorder: float or None rasterized: bool rgrids: tuple with floats rlabel_position: number rlim: unknown rmax: float rmin: float rorigin: float rscale: unknown rticks: unknown sketch_params: (scale: float, length: float, randomness: float) snap: bool or None theta_direction: unknown theta_offset: unknown theta_zero_location: str thetagrids: tuple with floats, degrees thetalim: unknown thetamax: unknown thetamin: unknown title: str transform: .Transform url: str visible: bool xbound: unknown xlabel: str xlim: (bottom: float, top: float) xmargin: float greater than -0.5 xscale: unknown xticklabels: unknown xticks: unknown ybound: unknown ylabel: str ylim: (bottom: float, top: float) ymargin: float greater than -0.5 yscale: unknown yticklabels: unknown yticks: unknown zorder: float

set_adjustable(adjustable, share=False)¶

Set how the Axes adjusts to achieve the required aspect ratio.

Parameters¶

adjustable{‘box’, ‘datalim’}: If ‘box’, change the physical dimensions of the Axes. If ‘datalim’, change the x or y data limits.
sharebool, default: False: If True, apply the settings to all shared Axes.

Notes¶

Shared Axes (of which twinned Axes are a special case) impose restrictions on how aspect ratios can be imposed. For twinned Axes, use ‘datalim’. For Axes that share both x and y, use ‘box’. Otherwise, either ‘datalim’ or ‘box’ may be used. These limitations are partly a requirement to avoid over-specification, and partly a result of the particular implementation we are currently using, in which the adjustments for aspect ratios are done sequentially and independently on each Axes as it is drawn.

set_agg_filter(filter_func)¶

Set the agg filter.

Parameters¶

filter_funccallable: A filter function, which takes a (m, n, depth) float array and a dpi value, and returns a (m, n, depth) array and two offsets from the bottom left corner of the image

set_alpha(alpha)¶

Set the alpha value used for blending - not supported on all backends.

Parameters¶

alphascalar or None: alpha must be within the 0-1 range, inclusive.

set_anchor(anchor, share=False)¶

Define the anchor location.

The actual drawing area (active position) of the Axes may be smaller than the Bbox (original position) when a fixed aspect is required. The anchor defines where the drawing area will be located within the available space.

Parameters¶

anchor(float, float) or {‘C’, ‘SW’, ‘S’, ‘SE’, ‘E’, ‘NE’, …}

Either an (x, y) pair of relative coordinates (0 is left or bottom, 1 is right or top), ‘C’ (center), or a cardinal direction (‘SW’, southwest, is bottom left, etc.). str inputs are shorthands for (x, y) coordinates, as shown in the following table:

.. code-block:: none

‘NW’ (0.0, 1.0)

‘N’ (0.5, 1.0)

‘NE’ (1.0, 1.0)

‘W’ (0.0, 0.5)

‘C’ (0.5, 0.5)

‘E’ (1.0, 0.5)

‘SW’ (0.0, 0.0)

‘S’ (0.5, 0.0)

‘SE’ (1.0, 0.0)

sharebool, default: False

If True, apply the settings to all shared Axes.

Parameters¶

b : bool

set_aspect(aspect, adjustable=None, anchor=None, share=False)¶

Set the aspect ratio of the axes scaling, i.e. y/x-scale.

Parameters¶

aspect{‘auto’, ‘equal’} or float

Possible values:

‘auto’: fill the position rectangle with data.
‘equal’: same as aspect=1, i.e. same scaling for x and y.
float: The displayed size of 1 unit in y-data coordinates will be aspect times the displayed size of 1 unit in x-data coordinates; e.g. for aspect=2 a square in data coordinates will be rendered with a height of twice its width.

adjustableNone or {‘box’, ‘datalim’}, optional

If not None, this defines which parameter will be adjusted to meet the required aspect. See .set_adjustable for further details.

anchorNone or str or (float, float), optional

If not None, this defines where the Axes will be drawn if there is extra space due to aspect constraints. The most common way to to specify the anchor are abbreviations of cardinal directions:

value	description
‘C’	centered
‘SW’	lower left corner
‘S’	middle of bottom edge
‘SE’	lower right corner
etc.

See ~.Axes.set_anchor for further details.

sharebool, default: False

If True, apply the settings to all shared Axes.

Parameters¶

bbool or ‘line’

Possible values:

True (zorder = 0.5): Ticks and gridlines are below all Artists.
‘line’ (zorder = 1.5): Ticks and gridlines are above patches (e.g. rectangles, with default zorder = 1) but still below lines and markers (with their default zorder = 2).
False (zorder = 2.5): Ticks and gridlines are above patches and lines / markers.

Parameters¶

aspectfloat or None

Changes the physical dimensions of the Axes, such that the ratio of the Axes height to the Axes width in physical units is equal to aspect. Defining a box aspect will change the adjustable property to ‘datalim’ (see ~.Axes.set_adjustable).

None will disable a fixed box aspect so that height and width of the Axes are chosen independently.

Parameters¶

b : bool

set_clip_path(path, transform=None)¶

Set the artist’s clip path.

Parameters¶

path.Patch or .Path or .TransformedPath or None: The clip path. If given a .Path, transform must be provided as well. If None, a previously set clip path is removed.
transform~matplotlib.transforms.Transform, optional: Only used if path is a .Path, in which case the given .Path is converted to a .TransformedPath using transform.

Notes¶

For efficiency, if path is a .Rectangle this method will set the clipping box to the corresponding rectangle and set the clipping path to None.

For technical reasons (support of ~.Artist.set), a tuple (path, transform) is also accepted as a single positional parameter.

set_facecolor(color)¶: Set the facecolor of the Axes.

Parameters¶

color : color

set_fc(color)¶: Alias for set_facecolor.

set_figure(fig)¶: Set the .Figure instance the artist belongs to.

Parameters¶

fig : .Figure

set_frame_on(b)¶: Set whether the Axes rectangle patch is drawn.

Parameters¶

b : bool

set_gid(gid)¶: Set the (group) id for the artist.

Parameters¶

gid : str

set_in_layout(in_layout)¶: Set if artist is to be included in layout calculations, E.g. /tutorials/intermediate/constrainedlayout_guide, .Figure.tight_layout(), and fig.savefig(fname, bbox_inches='tight').

Parameters¶

in_layout : bool

set_label(s)¶

Set a label that will be displayed in the legend.

Parameters¶

sobject: s will be converted to a string by calling str.

set_mouseover(mouseover)¶: Set whether this artist is queried for custom context information when the mouse cursor moves over it.

Parameters¶

mouseover : bool

See Also¶

get_cursor_data .ToolCursorPosition .NavigationToolbar2

set_navigate(b)¶: Set whether the Axes responds to navigation toolbar commands.

Parameters¶

b : bool

set_navigate_mode(b)¶: Set the navigation toolbar button status.

Warning

This is not a user-API function.

set_path_effects(path_effects)¶: Set the path effects.

Parameters¶

path_effects : .AbstractPathEffect

set_picker(picker)¶

Define the picking behavior of the artist.

Parameters¶

pickerNone or bool or float or callable

This can be one of the following:

None: Picking is disabled for this artist (default).
A boolean: If True then picking will be enabled and the artist will fire a pick event if the mouse event is over the artist.
A float: If picker is a number it is interpreted as an epsilon tolerance in points and the artist will fire off an event if its data is within epsilon of the mouse event. For some artists like lines and patch collections, the artist may provide additional data to the pick event that is generated, e.g., the indices of the data within epsilon of the pick event
A function: If picker is callable, it is a user supplied function which determines whether the artist is hit by the mouse event:
```
hit, props = picker(artist, mouseevent)
```
to determine the hit test. if the mouse event is over the artist, return hit=True and props is a dictionary of properties you want added to the PickEvent attributes.

set_position(pos, which='both')¶

Set the Axes position.

Axes have two position attributes. The ‘original’ position is the position allocated for the Axes. The ‘active’ position is the position the Axes is actually drawn at. These positions are usually the same unless a fixed aspect is set to the Axes. See .Axes.set_aspect for details.

Parameters¶

pos[left, bottom, width, height] or ~matplotlib.transforms.Bbox: The new position of the Axes in .Figure coordinates.
which{‘both’, ‘active’, ‘original’}, default: ‘both’: Determines which position variables to change.

Parameters¶

cyclerCycler: Set the given Cycler. None resets to the cycle defined by the current style.
labelstr: The property key. Must be a valid .Artist property. For example, ‘color’ or ‘linestyle’. Aliases are allowed, such as ‘c’ for ‘color’ and ‘lw’ for ‘linewidth’.
valuesiterable: Finite-length iterable of the property values. These values are validated and will raise a ValueError if invalid.

Examples¶

Setting the property cycle for a single property:

>>> ax.set_prop_cycle(color=['red', 'green', 'blue'])

Setting the property cycle for simultaneously cycling over multiple properties (e.g. red circle, green plus, blue cross):

>>> ax.set_prop_cycle(color=['red', 'green', 'blue'],
...                   marker=['o', '+', 'x'])

set_rasterization_zorder(z)¶

Set the zorder threshold for rasterization for vector graphics output.

All artists with a zorder below the given value will be rasterized if they support rasterization.

This setting is ignored for pixel-based output.

See also /gallery/misc/rasterization_demo.

Parameters¶

zfloat or None: The zorder below which artists are rasterized. If None rasterization based on zorder is deactivated.

set_rasterized(rasterized)¶

Force rasterized (bitmap) drawing for vector graphics output.

Rasterized drawing is not supported by all artists. If you try to enable this on an artist that does not support it, the command has no effect and a warning will be issued.

This setting is ignored for pixel-based output.

See also /gallery/misc/rasterization_demo.

Parameters¶

rasterized : bool

set_rgrids(radii, labels=None, angle=None, fmt=None, **kwargs)[source]¶

Set the radial gridlines on a polar plot.

Parameters¶

radiituple with floats: The radii for the radial gridlines
labelstuple with strings or None: The labels to use at each radial gridline. The matplotlib.ticker.ScalarFormatter will be used if None.
anglefloat: The angular position of the radius labels in degrees.
fmtstr or None: Format string used in matplotlib.ticker.FormatStrFormatter. For example ‘%f’.

Returns¶

lineslist of .lines.Line2D: The radial gridlines.
labelslist of .text.Text: The tick labels.

Other Parameters¶

**kwargs: kwargs are optional .Text properties for the labels.

Parameters¶

valuenumber: The angular position of the radius labels in degrees.

set_rlim(bottom=None, top=None, *, emit=True, auto=False, **kwargs)[source]¶

Set the radial axis view limits.

This function behaves like .Axes.set_ylim, but additionally supports rmin and rmax as aliases for bottom and top.

Parameters¶

scalefloat, optional

The amplitude of the wiggle perpendicular to the source line, in pixels. If scale is None, or not provided, no sketch filter will be provided.

lengthfloat, optional

The length of the wiggle along the line, in pixels (default 128.0)

randomnessfloat, optional

The scale factor by which the length is shrunken or expanded (default 16.0)

The PGF backend uses this argument as an RNG seed and not as described above. Using the same seed yields the same random shape.

set_snap(snap)¶

Set the snapping behavior.

Snapping aligns positions with the pixel grid, which results in clearer images. For example, if a black line of 1px width was defined at a position in between two pixels, the resulting image would contain the interpolated value of that line in the pixel grid, which would be a grey value on both adjacent pixel positions. In contrast, snapping will move the line to the nearest integer pixel value, so that the resulting image will really contain a 1px wide black line.

Snapping is currently only supported by the Agg and MacOSX backends.

Parameters¶

snapbool or None

Possible values:

True: Snap vertices to the nearest pixel center.
False: Do not modify vertex positions.
None: (auto) If the path contains only rectilinear line segments, round to the nearest pixel center.

set_theta_direction(direction)[source]¶

Set the direction in which theta increases.

clockwise, -1:: Theta increases in the clockwise direction
counterclockwise, anticlockwise, 1:: Theta increases in the counterclockwise direction

set_theta_offset(offset)[source]¶: Set the offset for the location of 0 in radians.

set_theta_zero_location(loc, offset=0.0)[source]¶

Set the location of theta’s zero.

This simply calls set_theta_offset with the correct value in radians.

Parameters¶

locstr: May be one of “N”, “NW”, “W”, “SW”, “S”, “SE”, “E”, or “NE”.
offsetfloat, default: 0: An offset in degrees to apply from the specified loc. Note: this offset is always applied counter-clockwise regardless of the direction setting.

set_thetagrids(angles, labels=None, fmt=None, **kwargs)[source]¶

Set the theta gridlines in a polar plot.

Parameters¶

anglestuple with floats, degrees: The angles of the theta gridlines.
labelstuple with strings or None: The labels to use at each theta gridline. The .projections.polar.ThetaFormatter will be used if None.
fmtstr or None: Format string used in matplotlib.ticker.FormatStrFormatter. For example ‘%f’. Note that the angle that is used is in radians.

Returns¶

lineslist of .lines.Line2D: The theta gridlines.
labelslist of .text.Text: The tick labels.

Other Parameters¶

**kwargs: kwargs are optional .Text properties for the labels.

Parameters¶

labelstr

Text to use for the title

fontdictdict

A dictionary controlling the appearance of the title text, the default fontdict is:

{'fontsize': rcParams['axes.titlesize'],
 'fontweight': rcParams['axes.titleweight'],
 'color': rcParams['axes.titlecolor'],
 'verticalalignment': 'baseline',
 'horizontalalignment': loc}

loc{‘center’, ‘left’, ‘right’}, default: :rc:`axes.titlelocation`

Which title to set.

yfloat, default: :rc:`axes.titley`

Vertical Axes location for the title (1.0 is the top). If None (the default) and :rc:`axes.titley` is also None, y is determined automatically to avoid decorators on the Axes.

padfloat, default: :rc:`axes.titlepad`

The offset of the title from the top of the Axes, in points.

Returns¶

.Text: The matplotlib text instance representing the title

Other Parameters¶

**kwargs.Text properties: Other keyword arguments are text properties, see .Text for a list of valid text properties.

set_transform(t)¶: Set the artist transform.

Parameters¶

t : .Transform

set_url(url)¶: Set the url for the artist.

Parameters¶

url : str

set_visible(b)¶: Set the artist’s visibility.

Parameters¶

b : bool

set_xbound(lower=None, upper=None)¶

Set the lower and upper numerical bounds of the x-axis.

This method will honor axis inversion regardless of parameter order. It will not change the autoscaling setting (.get_autoscalex_on()).

Parameters¶

lower, upperfloat or None: The lower and upper bounds. If None, the respective axis bound is not modified.

Parameters¶

xlabelstr: The label text.
labelpadfloat, default: :rc:`axes.labelpad`: Spacing in points from the Axes bounding box including ticks and tick labels. If None, the previous value is left as is.
loc{‘left’, ‘center’, ‘right’}, default: :rc:`xaxis.labellocation`: The label position. This is a high-level alternative for passing parameters x and horizontalalignment.

Other Parameters¶

**kwargs.Text properties: .Text properties control the appearance of the label.

Parameters¶

leftfloat, optional

The left xlim in data coordinates. Passing None leaves the limit unchanged.

The left and right xlims may also be passed as the tuple (left, right) as the first positional argument (or as the left keyword argument).

rightfloat, optional

The right xlim in data coordinates. Passing None leaves the limit unchanged.

emitbool, default: True

Whether to notify observers of limit change.

autobool or None, default: False

Whether to turn on autoscaling of the x-axis. True turns on, False turns off, None leaves unchanged.

xmin, xmaxfloat, optional

They are equivalent to left and right respectively, and it is an error to pass both xmin and left or xmax and right.

Returns¶

left, right(float, float): The new x-axis limits in data coordinates.

Notes¶

The left value may be greater than the right value, in which case the x-axis values will decrease from left to right.

Examples¶

>>> set_xlim(left, right)
>>> set_xlim((left, right))
>>> left, right = set_xlim(left, right)

One limit may be left unchanged.

>>> set_xlim(right=right_lim)

Limits may be passed in reverse order to flip the direction of the x-axis. For example, suppose x represents the number of years before present. The x-axis limits might be set like the following so 5000 years ago is on the left of the plot and the present is on the right.

>>> set_xlim(5000, 0)

set_xmargin(m)¶

Set padding of X data limits prior to autoscaling.

m times the data interval will be added to each end of that interval before it is used in autoscaling. If m is negative, this will clip the data range instead of expanding it.

For example, if your data is in the range [0, 2], a margin of 0.1 will result in a range [-0.2, 2.2]; a margin of -0.1 will result in a range of [0.2, 1.8].

Parameters¶

m : float greater than -0.5

set_xscale(value, **kwargs)¶

Set the xaxis’ scale.

Parameters¶

value{“linear”, “log”, “symlog”, “logit”, …} or .ScaleBase

The axis scale type to apply.

**kwargs

Different keyword arguments are accepted, depending on the scale. See the respective class keyword arguments:

matplotlib.scale.LinearScale
matplotlib.scale.LogScale
matplotlib.scale.SymmetricalLogScale
matplotlib.scale.LogitScale
matplotlib.scale.FuncScale

Notes¶

By default, Matplotlib supports the above mentioned scales. Additionally, custom scales may be registered using matplotlib.scale.register_scale. These scales can then also be used here.

set_xticklabels(labels, *, fontdict=None, minor=False, **kwargs)¶

Set the xaxis’ labels with list of string labels.

Warning

This method should only be used after fixing the tick positions using .Axes.set_xticks. Otherwise, the labels may end up in unexpected positions.

Parameters¶

labelslist of str

The label texts.

fontdictdict, optional

A dictionary controlling the appearance of the ticklabels. The default fontdict is:

{'fontsize': rcParams['axes.titlesize'],
 'fontweight': rcParams['axes.titleweight'],
 'verticalalignment': 'baseline',
 'horizontalalignment': loc}

minorbool, default: False

Whether to set the minor ticklabels rather than the major ones.

Returns¶

list of .Text: The labels.

Other Parameters¶

**kwargs : ~.text.Text properties.

set_xticks(ticks, labels=None, *, minor=False, **kwargs)¶

Set the xaxis’ tick locations and optionally labels.

If necessary, the view limits of the Axis are expanded so that all given ticks are visible.

Parameters¶

tickslist of floats

List of tick locations. The axis .Locator is replaced by a ~.ticker.FixedLocator.

Some tick formatters will not label arbitrary tick positions; e.g. log formatters only label decade ticks by default. In such a case you can set a formatter explicitly on the axis using .Axis.set_major_formatter or provide formatted labels yourself.

labelslist of str, optional

List of tick labels. If not set, the labels are generated with the axis tick .Formatter.

minorbool, default: False

If False, set the major ticks; if True, the minor ticks.

**kwargs

.Text properties for the labels. These take effect only if you pass labels. In other cases, please use ~.Axes.tick_params.

Notes¶

The mandatory expansion of the view limits is an intentional design choice to prevent the surprise of a non-visible tick. If you need other limits, you should set the limits explicitly after setting the ticks.

set_ybound(lower=None, upper=None)¶

Set the lower and upper numerical bounds of the y-axis.

This method will honor axis inversion regardless of parameter order. It will not change the autoscaling setting (.get_autoscaley_on()).

Parameters¶

lower, upperfloat or None: The lower and upper bounds. If None, the respective axis bound is not modified.

Parameters¶

ylabelstr: The label text.
labelpadfloat, default: :rc:`axes.labelpad`: Spacing in points from the Axes bounding box including ticks and tick labels. If None, the previous value is left as is.
loc{‘bottom’, ‘center’, ‘top’}, default: :rc:`yaxis.labellocation`: The label position. This is a high-level alternative for passing parameters y and horizontalalignment.

Other Parameters¶

**kwargs.Text properties: .Text properties control the appearance of the label.

Parameters¶

bottomfloat, optional

The bottom ylim in data coordinates. Passing None leaves the limit unchanged.

The bottom and top ylims may also be passed as the tuple (bottom, top) as the first positional argument (or as the bottom keyword argument).

topfloat, optional

The top ylim in data coordinates. Passing None leaves the limit unchanged.

emitbool, default: True

Whether to notify observers of limit change.

autobool or None, default: False

Whether to turn on autoscaling of the y-axis. True turns on, False turns off, None leaves unchanged.

ymin, ymaxfloat, optional

They are equivalent to bottom and top respectively, and it is an error to pass both ymin and bottom or ymax and top.

Returns¶

bottom, top(float, float): The new y-axis limits in data coordinates.

Notes¶

The bottom value may be greater than the top value, in which case the y-axis values will decrease from bottom to top.

Examples¶

>>> set_ylim(bottom, top)
>>> set_ylim((bottom, top))
>>> bottom, top = set_ylim(bottom, top)

One limit may be left unchanged.

>>> set_ylim(top=top_lim)

Limits may be passed in reverse order to flip the direction of the y-axis. For example, suppose y represents depth of the ocean in m. The y-axis limits might be set like the following so 5000 m depth is at the bottom of the plot and the surface, 0 m, is at the top.

>>> set_ylim(5000, 0)

set_ymargin(m)¶

Set padding of Y data limits prior to autoscaling.

m times the data interval will be added to each end of that interval before it is used in autoscaling. If m is negative, this will clip the data range instead of expanding it.

For example, if your data is in the range [0, 2], a margin of 0.1 will result in a range [-0.2, 2.2]; a margin of -0.1 will result in a range of [0.2, 1.8].

Parameters¶

m : float greater than -0.5

set_yscale(*args, **kwargs)[source]¶

Set the yaxis’ scale.

Parameters¶

value{“linear”, “log”, “symlog”, “logit”, …} or .ScaleBase

The axis scale type to apply.

**kwargs

Different keyword arguments are accepted, depending on the scale. See the respective class keyword arguments:

matplotlib.scale.LinearScale
matplotlib.scale.LogScale
matplotlib.scale.SymmetricalLogScale
matplotlib.scale.LogitScale
matplotlib.scale.FuncScale

Notes¶

By default, Matplotlib supports the above mentioned scales. Additionally, custom scales may be registered using matplotlib.scale.register_scale. These scales can then also be used here.

set_yticklabels(labels, *, fontdict=None, minor=False, **kwargs)¶

Set the yaxis’ labels with list of string labels.

Warning

This method should only be used after fixing the tick positions using .Axes.set_yticks. Otherwise, the labels may end up in unexpected positions.

Parameters¶

labelslist of str

The label texts.

fontdictdict, optional

A dictionary controlling the appearance of the ticklabels. The default fontdict is:

{'fontsize': rcParams['axes.titlesize'],
 'fontweight': rcParams['axes.titleweight'],
 'verticalalignment': 'baseline',
 'horizontalalignment': loc}

minorbool, default: False

Whether to set the minor ticklabels rather than the major ones.

Returns¶

list of .Text: The labels.

Other Parameters¶

**kwargs : ~.text.Text properties.

set_yticks(ticks, labels=None, *, minor=False, **kwargs)¶

Set the yaxis’ tick locations and optionally labels.

If necessary, the view limits of the Axis are expanded so that all given ticks are visible.

Parameters¶

tickslist of floats

List of tick locations. The axis .Locator is replaced by a ~.ticker.FixedLocator.

Some tick formatters will not label arbitrary tick positions; e.g. log formatters only label decade ticks by default. In such a case you can set a formatter explicitly on the axis using .Axis.set_major_formatter or provide formatted labels yourself.

labelslist of str, optional

List of tick labels. If not set, the labels are generated with the axis tick .Formatter.

minorbool, default: False

If False, set the major ticks; if True, the minor ticks.

**kwargs

.Text properties for the labels. These take effect only if you pass labels. In other cases, please use ~.Axes.tick_params.

Notes¶

The mandatory expansion of the view limits is an intentional design choice to prevent the surprise of a non-visible tick. If you need other limits, you should set the limits explicitly after setting the ticks.

set_zorder(level)¶: Set the zorder for the artist. Artists with lower zorder values are drawn first.

Parameters¶

level : float

sharex(other)¶

Share the x-axis with other.

This is equivalent to passing sharex=other when constructing the Axes, and cannot be used if the x-axis is already being shared with another Axes.

sharey(other)¶

Share the y-axis with other.

This is equivalent to passing sharey=other when constructing the Axes, and cannot be used if the y-axis is already being shared with another Axes.

specgram(x, NFFT=None, Fs=None, Fc=None, detrend=None, window=None, noverlap=None, cmap=None, xextent=None, pad_to=None, sides=None, scale_by_freq=None, mode=None, scale=None, vmin=None, vmax=None, *, data=None, **kwargs)¶

Plot a spectrogram.

Compute and plot a spectrogram of data in x. Data are split into NFFT length segments and the spectrum of each section is computed. The windowing function window is applied to each segment, and the amount of overlap of each segment is specified with noverlap. The spectrogram is plotted as a colormap (using imshow).

Parameters¶

x1-D array or sequence: Array or sequence containing the data.
Fsfloat, default: 2: The sampling frequency (samples per time unit). It is used to calculate the Fourier frequencies, freqs, in cycles per time unit.
windowcallable or ndarray, default: .window_hanning: A function or a vector of length NFFT. To create window vectors see .window_hanning, .window_none, numpy.blackman, numpy.hamming, numpy.bartlett, scipy.signal, scipy.signal.get_window, etc. If a function is passed as the argument, it must take a data segment as an argument and return the windowed version of the segment.
sides{‘default’, ‘onesided’, ‘twosided’}, optional: Which sides of the spectrum to return. ‘default’ is one-sided for real data and two-sided for complex data. ‘onesided’ forces the return of a one-sided spectrum, while ‘twosided’ forces two-sided.
pad_toint, optional: The number of points to which the data segment is padded when performing the FFT. This can be different from NFFT, which specifies the number of data points used. While not increasing the actual resolution of the spectrum (the minimum distance between resolvable peaks), this can give more points in the plot, allowing for more detail. This corresponds to the n parameter in the call to ~numpy.fft.fft. The default is None, which sets pad_to equal to NFFT
NFFTint, default: 256: The number of data points used in each block for the FFT. A power 2 is most efficient. This should NOT be used to get zero padding, or the scaling of the result will be incorrect; use pad_to for this instead.
detrend{‘none’, ‘mean’, ‘linear’} or callable, default: ‘none’: The function applied to each segment before fft-ing, designed to remove the mean or linear trend. Unlike in MATLAB, where the detrend parameter is a vector, in Matplotlib it is a function. The mlab module defines .detrend_none, .detrend_mean, and .detrend_linear, but you can use a custom function as well. You can also use a string to choose one of the functions: ‘none’ calls .detrend_none. ‘mean’ calls .detrend_mean. ‘linear’ calls .detrend_linear.
scale_by_freqbool, default: True: Whether the resulting density values should be scaled by the scaling frequency, which gives density in units of 1/Hz. This allows for integration over the returned frequency values. The default is True for MATLAB compatibility.
mode{‘default’, ‘psd’, ‘magnitude’, ‘angle’, ‘phase’}: What sort of spectrum to use. Default is ‘psd’, which takes the power spectral density. ‘magnitude’ returns the magnitude spectrum. ‘angle’ returns the phase spectrum without unwrapping. ‘phase’ returns the phase spectrum with unwrapping.
noverlapint, default: 128: The number of points of overlap between blocks.
scale{‘default’, ‘linear’, ‘dB’}: The scaling of the values in the spec. ‘linear’ is no scaling. ‘dB’ returns the values in dB scale. When mode is ‘psd’, this is dB power (10 * log10). Otherwise this is dB amplitude (20 * log10). ‘default’ is ‘dB’ if mode is ‘psd’ or ‘magnitude’ and ‘linear’ otherwise. This must be ‘linear’ if mode is ‘angle’ or ‘phase’.
Fcint, default: 0: The center frequency of x, which offsets the x extents of the plot to reflect the frequency range used when a signal is acquired and then filtered and downsampled to baseband.

cmap : .Colormap, default: :rc:`image.cmap`

xextentNone or (xmin, xmax)

The image extent along the x-axis. The default sets xmin to the left border of the first bin (spectrum column) and xmax to the right border of the last bin. Note that for noverlap>0 the width of the bins is smaller than those of the segments.

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x

**kwargs

Additional keyword arguments are passed on to ~.axes.Axes.imshow which makes the specgram image. The origin keyword argument is not supported.

Returns¶

spectrum2D array: Columns are the periodograms of successive segments.
freqs1-D array: The frequencies corresponding to the rows in spectrum.
t1-D array: The times corresponding to midpoints of segments (i.e., the columns in spectrum).
im.AxesImage: The image created by imshow containing the spectrogram.

Notes¶

The parameters detrend and scale_by_freq do only apply when mode is set to ‘psd’.

spy(Z, precision=0, marker=None, markersize=None, aspect='equal', origin='upper', **kwargs)¶

Plot the sparsity pattern of a 2D array.

This visualizes the non-zero values of the array.

Two plotting styles are available: image and marker. Both are available for full arrays, but only the marker style works for scipy.sparse.spmatrix instances.

Image style

If marker and markersize are None, ~.Axes.imshow is used. Any extra remaining keyword arguments are passed to this method.

Marker style

If Z is a scipy.sparse.spmatrix or marker or markersize are None, a .Line2D object will be returned with the value of marker determining the marker type, and any remaining keyword arguments passed to ~.Axes.plot.

Parameters¶

Z(M, N) array-like

The array to be plotted.

precisionfloat or ‘present’, default: 0

If precision is 0, any non-zero value will be plotted. Otherwise, values of \(|Z| > precision\) will be plotted.

For scipy.sparse.spmatrix instances, you can also pass ‘present’. In this case any value present in the array will be plotted, even if it is identically zero.

aspect{‘equal’, ‘auto’, None} or float, default: ‘equal’

The aspect ratio of the Axes. This parameter is particularly relevant for images since it determines whether data pixels are square.

This parameter is a shortcut for explicitly calling .Axes.set_aspect. See there for further details.

‘equal’: Ensures an aspect ratio of 1. Pixels will be square.
‘auto’: The Axes is kept fixed and the aspect is adjusted so that the data fit in the Axes. In general, this will result in non-square pixels.
None: Use :rc:`image.aspect`.

origin{‘upper’, ‘lower’}, default: :rc:`image.origin`

Place the [0, 0] index of the array in the upper left or lower left corner of the Axes. The convention ‘upper’ is typically used for matrices and images.

Returns¶

~matplotlib.image.AxesImage or .Line2D: The return type depends on the plotting style (see above).

Other Parameters¶

**kwargs

The supported additional parameters depend on the plotting style.

For the image style, you can pass the following additional parameters of ~.Axes.imshow:

cmap
alpha
url
any .Artist properties (passed on to the .AxesImage)

For the marker style, you can pass any .Line2D property except for linestyle:

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool antialiased or aa: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None color or c: color dash_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} dash_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} dashes: sequence of floats (on/off ink in points) or (None, None) data: (2, N) array or two 1D arrays drawstyle or ds: {‘default’, ‘steps’, ‘steps-pre’, ‘steps-mid’, ‘steps-post’}, default: ‘default’ figure: .Figure fillstyle: {‘full’, ‘left’, ‘right’, ‘bottom’, ‘top’, ‘none’} gapcolor: color or None gid: str in_layout: bool label: object linestyle or ls: {‘-’, ‘–’, ‘-.’, ‘:’, ‘’, (offset, on-off-seq), …} linewidth or lw: float marker: marker style string, ~.path.Path or ~.markers.MarkerStyle markeredgecolor or mec: color markeredgewidth or mew: float markerfacecolor or mfc: color markerfacecoloralt or mfcalt: color markersize or ms: float markevery: None or int or (int, int) or slice or list[int] or float or (float, float) or list[bool] mouseover: bool path_effects: .AbstractPathEffect picker: float or callable[[Artist, Event], tuple[bool, dict]] pickradius: unknown rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None solid_capstyle: .CapStyle or {‘butt’, ‘projecting’, ‘round’} solid_joinstyle: .JoinStyle or {‘miter’, ‘round’, ‘bevel’} transform: unknown url: str visible: bool xdata: 1D array ydata: 1D array zorder: float

stackplot(x, *args, labels=(), colors=None, baseline='zero', data=None, **kwargs)¶

Draw a stacked area plot.

Parameters¶

x : (N,) array-like

y(M, N) array-like

The data is assumed to be unstacked. Each of the following calls is legal:

stackplot(x, y)           # where y has shape (M, N)
stackplot(x, y1, y2, y3)  # where y1, y2, y3, y4 have length N

baseline{‘zero’, ‘sym’, ‘wiggle’, ‘weighted_wiggle’}

Method used to calculate the baseline:

'zero': Constant zero baseline, i.e. a simple stacked plot.
'sym': Symmetric around zero and is sometimes called ‘ThemeRiver’.
'wiggle': Minimizes the sum of the squared slopes.
'weighted_wiggle': Does the same but weights to account for size of each layer. It is also called ‘Streamgraph’-layout. More details can be found at http://leebyron.com/streamgraph/.

labelslist of str, optional

A sequence of labels to assign to each data series. If unspecified, then no labels will be applied to artists.

colorslist of color, optional

A sequence of colors to be cycled through and used to color the stacked areas. The sequence need not be exactly the same length as the number of provided y, in which case the colors will repeat from the beginning.

If not specified, the colors from the Axes property cycle will be used.

dataindexable object, optional

If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).

**kwargs

All other keyword arguments are passed to .Axes.fill_between.

Returns¶

list of .PolyCollection: A list of .PolyCollection instances, one for each element in the stacked area plot.

stairs(values, edges=None, *, orientation='vertical', baseline=0, fill=False, data=None, **kwargs)¶

A stepwise constant function as a line with bounding edges or a filled plot.

Parameters¶

valuesarray-like: The step heights.
edgesarray-like: The edge positions, with len(edges) == len(vals) + 1, between which the curve takes on vals values.
orientation{‘vertical’, ‘horizontal’}, default: ‘vertical’: The direction of the steps. Vertical means that values are along the y-axis, and edges are along the x-axis.
baselinefloat, array-like or None, default: 0: The bottom value of the bounding edges or when fill=True, position of lower edge. If fill is True or an array is passed to baseline, a closed path is drawn.
fillbool, default: False: Whether the area under the step curve should be filled.

Returns¶

StepPatch : matplotlib.patches.StepPatch

Other Parameters¶

dataindexable object, optional: If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).
**kwargs: ~matplotlib.patches.StepPatch properties

property stale¶: Whether the artist is ‘stale’ and needs to be re-drawn for the output to match the internal state of the artist.

start_pan(x, y, button)[source]¶

Called when a pan operation has started.

Parameters¶

x, yfloat: The mouse coordinates in display coords.
button.MouseButton: The pressed mouse button.

Notes¶

This is intended to be overridden by new projection types.

stem(*args, linefmt=None, markerfmt=None, basefmt=None, bottom=0, label=None, use_line_collection=<deprecated parameter>, orientation='vertical', data=None)¶

Create a stem plot.

A stem plot draws lines perpendicular to a baseline at each location locs from the baseline to heads, and places a marker there. For vertical stem plots (the default), the locs are x positions, and the heads are y values. For horizontal stem plots, the locs are y positions, and the heads are x values.

Call signature:

stem([locs,] heads, linefmt=None, markerfmt=None, basefmt=None)

The locs-positions are optional. The formats may be provided either as positional or as keyword-arguments. Passing markerfmt and basefmt positionally is deprecated since Matplotlib 3.5.

Parameters¶

locsarray-like, default: (0, 1, …, len(heads) - 1)

For vertical stem plots, the x-positions of the stems. For horizontal stem plots, the y-positions of the stems.

headsarray-like

For vertical stem plots, the y-values of the stem heads. For horizontal stem plots, the x-values of the stem heads.

linefmtstr, optional

A string defining the color and/or linestyle of the vertical lines:

Character	Line Style
`'-'`	solid line
`'--'`	dashed line
`'-.'`	dash-dot line
`':'`	dotted line

Default: ‘C0-’, i.e. solid line with the first color of the color cycle.

Note: Markers specified through this parameter (e.g. ‘x’) will be silently ignored (unless using use_line_collection=False). Instead, markers should be specified using markerfmt.

markerfmtstr, optional

A string defining the color and/or shape of the markers at the stem heads. If the marker is not given, use the marker ‘o’, i.e. filled circles. If the color is not given, use the color from linefmt.

basefmtstr, default: ‘C3-’ (‘C2-’ in classic mode)

A format string defining the properties of the baseline.

orientationstr, default: ‘vertical’

If ‘vertical’, will produce a plot with stems oriented vertically, otherwise the stems will be oriented horizontally.

bottomfloat, default: 0

The y/x-position of the baseline (depending on orientation).

labelstr, default: None

The label to use for the stems in legends.

use_line_collectionbool, default: True

Deprecated since 3.6

If True, store and plot the stem lines as a ~.collections.LineCollection instead of individual lines, which significantly increases performance. If False, defaults to the old behavior of using a list of .Line2D objects.

dataindexable object, optional

If given, all parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception).

Returns¶

.StemContainer: The container may be treated like a tuple (markerline, stemlines, baseline)

Notes¶

Parameters¶

xarray-like

1D sequence of x positions. It is assumed, but not checked, that it is uniformly increasing.

yarray-like

1D sequence of y levels.

fmtstr, optional

A format string, e.g. ‘g’ for a green line. See .plot for a more detailed description.

Note: While full format strings are accepted, it is recommended to only specify the color. Line styles are currently ignored (use the keyword argument linestyle instead). Markers are accepted and plotted on the given positions, however, this is a rarely needed feature for step plots.

where{‘pre’, ‘post’, ‘mid’}, default: ‘pre’

Define where the steps should be placed:

‘pre’: The y value is continued constantly to the left from every x position, i.e. the interval (x[i-1], x[i]] has the value y[i].
‘post’: The y value is continued constantly to the right from every x position, i.e. the interval [x[i], x[i+1]) has the value y[i].
‘mid’: Steps occur half-way between the x positions.

dataindexable object, optional

An object with labelled data. If given, provide the label names to plot in x and y.

**kwargs

Additional parameters are the same as those for .plot.

Returns¶

list of .Line2D: Objects representing the plotted data.

property sticky_edges¶

x and y sticky edge lists for autoscaling.

When performing autoscaling, if a data limit coincides with a value in the corresponding sticky_edges list, then no margin will be added–the view limit “sticks” to the edge. A typical use case is histograms, where one usually expects no margin on the bottom edge (0) of the histogram.

Moreover, margin expansion “bumps” against sticky edges and cannot cross them. For example, if the upper data limit is 1.0, the upper view limit computed by simple margin application is 1.2, but there is a sticky edge at 1.1, then the actual upper view limit will be 1.1.

This attribute cannot be assigned to; however, the x and y lists can be modified in place as needed.

Examples¶

>>> artist.sticky_edges.x[:] = (xmin, xmax)
>>> artist.sticky_edges.y[:] = (ymin, ymax)

streamplot(x, y, u, v, density=1, linewidth=None, color=None, cmap=None, norm=None, arrowsize=1, arrowstyle='-|>', minlength=0.1, transform=None, zorder=None, start_points=None, maxlength=4.0, integration_direction='both', broken_streamlines=True, *, data=None)¶

Draw streamlines of a vector flow.

Parameters¶

x, y1D/2D arrays

Evenly spaced strictly increasing arrays to make a grid. If 2D, all rows of x must be equal and all columns of y must be equal; i.e., they must be as if generated by np.meshgrid(x_1d, y_1d).

u, v2D arrays

x and y-velocities. The number of rows and columns must match the length of y and x, respectively.

densityfloat or (float, float)

Controls the closeness of streamlines. When density = 1, the domain is divided into a 30x30 grid. density linearly scales this grid. Each cell in the grid can have, at most, one traversing streamline. For different densities in each direction, use a tuple (density_x, density_y).

linewidthfloat or 2D array

The width of the stream lines. With a 2D array the line width can be varied across the grid. The array must have the same shape as u and v.

colorcolor or 2D array

The streamline color. If given an array, its values are converted to colors using cmap and norm. The array must have the same shape as u and v.

cmap, norm

Data normalization and colormapping parameters for color; only used if color is an array of floats. See ~.Axes.imshow for a detailed description.

arrowsizefloat

Scaling factor for the arrow size.

arrowstylestr

Arrow style specification. See ~matplotlib.patches.FancyArrowPatch.

minlengthfloat

Minimum length of streamline in axes coordinates.

start_pointsNx2 array

Coordinates of starting points for the streamlines in data coordinates (the same coordinates as the x and y arrays).

zorderint

The zorder of the stream lines and arrows. Artists with lower zorder values are drawn first.

maxlengthfloat

Maximum length of streamline in axes coordinates.

integration_direction{‘forward’, ‘backward’, ‘both’}, default: ‘both’

Integrate the streamline in forward, backward or both directions.

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, y, u, v, start_points

broken_streamlinesboolean, default: True

If False, forces streamlines to continue until they leave the plot domain. If True, they may be terminated if they come too close to another streamline.

Returns¶

StreamplotSet

Container object with attributes

lines: .LineCollection of streamlines
arrows: .PatchCollection containing .FancyArrowPatch objects representing the arrows half-way along stream lines.

This container will probably change in the future to allow changes to the colormap, alpha, etc. for both lines and arrows, but these changes should be backward compatible.

table(cellText=None, cellColours=None, cellLoc='right', colWidths=None, rowLabels=None, rowColours=None, rowLoc='left', colLabels=None, colColours=None, colLoc='center', loc='bottom', bbox=None, edges='closed', **kwargs)¶

Add a table to an ~.axes.Axes.

At least one of cellText or cellColours must be specified. These parameters must be 2D lists, in which the outer lists define the rows and the inner list define the column values per row. Each row must have the same number of elements.

The table can optionally have row and column headers, which are configured using rowLabels, rowColours, rowLoc and colLabels, colColours, colLoc respectively.

For finer grained control over tables, use the .Table class and add it to the axes with .Axes.add_table.

Parameters¶

cellText2D list of str, optional

The texts to place into the table cells.

Note: Line breaks in the strings are currently not accounted for and will result in the text exceeding the cell boundaries.

cellColours2D list of colors, optional

The background colors of the cells.

cellLoc{‘left’, ‘center’, ‘right’}, default: ‘right’

The alignment of the text within the cells.

colWidthslist of float, optional

The column widths in units of the axes. If not given, all columns will have a width of 1 / ncols.

rowLabelslist of str, optional

The text of the row header cells.

rowColourslist of colors, optional

The colors of the row header cells.

rowLoc{‘left’, ‘center’, ‘right’}, default: ‘left’

The text alignment of the row header cells.

colLabelslist of str, optional

The text of the column header cells.

colColourslist of colors, optional

The colors of the column header cells.

colLoc{‘left’, ‘center’, ‘right’}, default: ‘left’

The text alignment of the column header cells.

locstr, optional

The position of the cell with respect to ax. This must be one of the ~.Table.codes.

bbox.Bbox, optional

A bounding box to draw the table into. If this is not None, this overrides loc.

edgessubstring of ‘BRTL’ or {‘open’, ‘closed’, ‘horizontal’, ‘vertical’}

The cell edges to be drawn with a line. See also ~.Cell.visible_edges.

Returns¶

~matplotlib.table.Table: The created table.

Other Parameters¶

**kwargs: .Table properties.
Properties:: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool clip_box: .Bbox clip_on: bool clip_path: Patch or (Path, Transform) or None figure: .Figure fontsize: float gid: str in_layout: bool label: object mouseover: bool path_effects: .AbstractPathEffect picker: None or bool or float or callable rasterized: bool sketch_params: (scale: float, length: float, randomness: float) snap: bool or None transform: .Transform url: str visible: bool zorder: float

text(x, y, s, fontdict=None, **kwargs)¶

Add text to the Axes.

Add the text s to the Axes at location x, y in data coordinates.

Parameters¶

x, yfloat: The position to place the text. By default, this is in data coordinates. The coordinate system can be changed using the transform parameter.
sstr: The text.
fontdictdict, default: None: A dictionary to override the default text properties. If fontdict is None, the defaults are determined by .rcParams.

Returns¶

.Text: The created .Text instance.

Other Parameters¶

**kwargs~matplotlib.text.Text properties.

Other miscellaneous text parameters.

Properties: agg_filter: a filter function, which takes a (m, n, 3) float array and a dpi value, and returns a (m, n, 3) array and two offsets from the bottom left corner of the image alpha: scalar or None animated: bool backgroundcolor: color bbox: dict with properties for .patches.FancyBboxPatch clip_box: unknown clip_on: unknown clip_path: unknown color or c: color figure: .Figure fontfamily or family: {FONTNAME, ‘serif’, ‘sans-serif’, ‘cursive’, ‘fantasy’, ‘monospace’} fontproperties or font or font_properties: .font_manager.FontProperties or str or pathlib.Path fontsize or size: float or {‘xx-small’, ‘x-small’, ‘small’, ‘medium’, ‘large’, ‘x-large’, ‘xx-large’} fontstretch or stretch: {a numeric value in range 0-1000, ‘ultra-condensed’, ‘extra-condensed’, ‘condensed’, ‘semi-condensed’, ‘normal’, ‘semi-expanded’, ‘expanded’, ‘extra-expanded’, ‘ultra-expanded’} fontstyle or style: {‘normal’, ‘italic’, ‘oblique’} fontvariant or variant: {‘normal’, ‘small-caps’} fontweight or weight: {a numeric value in range 0-1000, ‘ultralight’, ‘light’, ‘normal’, ‘regular’, ‘book’, ‘medium’, ‘roman’, ‘semibold’, ‘demibold’, ‘demi’, ‘bold’, ‘heavy’, ‘extra bold’, ‘black’} gid: str horizontalalignment or ha: {‘left’, ‘center’, ‘right’} in_layout: bool label: object linespacing: float (multiple of font size) math_fontfamily: str mouseover: bool multialignment or ma: {‘left’, ‘right’, ‘center’} parse_math: bool path_effects: .AbstractPathEffect picker: None or bool or float or callable position: (float, float) rasterized: bool rotation: float or {‘vertical’, ‘horizontal’} rotation_mode: {None, ‘default’, ‘anchor’} sketch_params: (scale: float, length: float, randomness: float) snap: bool or None text: object transform: .Transform transform_rotates_text: bool url: str usetex: bool or None verticalalignment or va: {‘bottom’, ‘baseline’, ‘center’, ‘center_baseline’, ‘top’} visible: bool wrap: bool x: float y: float zorder: float

Examples¶

Individual keyword arguments can be used to override any given parameter:

>>> text(x, y, s, fontsize=12)

The default transform specifies that text is in data coords, alternatively, you can specify text in axis coords ((0, 0) is lower-left and (1, 1) is upper-right). The example below places text in the center of the Axes:

>>> text(0.5, 0.5, 'matplotlib', horizontalalignment='center',
...      verticalalignment='center', transform=ax.transAxes)

You can put a rectangular box around the text instance (e.g., to set a background color) by using the keyword bbox. bbox is a dictionary of ~matplotlib.patches.Rectangle properties. For example:

>>> text(x, y, s, bbox=dict(facecolor='red', alpha=0.5))

tick_params(axis='both', **kwargs)¶

Change the appearance of ticks, tick labels, and gridlines.

Tick properties that are not explicitly set using the keyword arguments remain unchanged unless reset is True.

Parameters¶

axis{‘x’, ‘y’, ‘both’}, default: ‘both’: The axis to which the parameters are applied.
which{‘major’, ‘minor’, ‘both’}, default: ‘major’: The group of ticks to which the parameters are applied.
resetbool, default: False: Whether to reset the ticks to defaults before updating them.

Other Parameters¶

direction{‘in’, ‘out’, ‘inout’}: Puts ticks inside the Axes, outside the Axes, or both.
lengthfloat: Tick length in points.
widthfloat: Tick width in points.
colorcolor: Tick color.
padfloat: Distance in points between tick and label.
labelsizefloat or str: Tick label font size in points or as a string (e.g., ‘large’).
labelcolorcolor: Tick label color.
colorscolor: Tick color and label color.
zorderfloat: Tick and label zorder.
bottom, top, left, rightbool: Whether to draw the respective ticks.
labelbottom, labeltop, labelleft, labelrightbool: Whether to draw the respective tick labels.
labelrotationfloat: Tick label rotation
grid_colorcolor: Gridline color.
grid_alphafloat: Transparency of gridlines: 0 (transparent) to 1 (opaque).
grid_linewidthfloat: Width of gridlines in points.
grid_linestylestr: Any valid .Line2D line style spec.

Examples¶

ax.tick_params(direction='out', length=6, width=2, colors='r',
               grid_color='r', grid_alpha=0.5)

This will make all major ticks be red, pointing out of the box, and with dimensions 6 points by 2 points. Tick labels will also be red. Gridlines will be red and translucent.

ticklabel_format(*, axis='both', style='', scilimits=None, useOffset=None, useLocale=None, useMathText=None)¶

Configure the .ScalarFormatter used by default for linear Axes.

If a parameter is not set, the corresponding property of the formatter is left unchanged.

Parameters¶

axis{‘x’, ‘y’, ‘both’}, default: ‘both’: The axis to configure. Only major ticks are affected.
style{‘sci’, ‘scientific’, ‘plain’}: Whether to use scientific notation. The formatter default is to use scientific notation.
scilimitspair of ints (m, n): Scientific notation is used only for numbers outside the range 10^m to 10ⁿ (and only if the formatter is configured to use scientific notation at all). Use (0, 0) to include all numbers. Use (m, m) where m != 0 to fix the order of magnitude to 10^m. The formatter default is :rc:`axes.formatter.limits`.
useOffsetbool or float: If True, the offset is calculated as needed. If False, no offset is used. If a numeric value, it sets the offset. The formatter default is :rc:`axes.formatter.useoffset`.
useLocalebool: Whether to format the number using the current locale or using the C (English) locale. This affects e.g. the decimal separator. The formatter default is :rc:`axes.formatter.use_locale`.
useMathTextbool: Render the offset and scientific notation in mathtext. The formatter default is :rc:`axes.formatter.use_mathtext`.

Raises¶

AttributeError: If the current formatter is not a .ScalarFormatter.

tricontour(*args, **kwargs)¶

Draw contour lines on an unstructured triangular grid.

Call signatures:

tricontour(triangulation, z, [levels], ...)
tricontour(x, y, z, [levels], *, [triangles=triangles], [mask=mask], ...)

The triangular grid can be specified either by passing a .Triangulation object as the first parameter, or by passing the points x, y and optionally the triangles and a mask. See .Triangulation for an explanation of these parameters. If neither of triangulation or triangles are given, the triangulation is calculated on the fly.

It is possible to pass triangles positionally, i.e. tricontour(x, y, triangles, z, ...). However, this is discouraged. For more clarity, pass triangles via keyword argument.

Parameters¶

triangulation.Triangulation, optional

An already created triangular grid.

x, y, triangles, mask

Parameters defining the triangular grid. See .Triangulation. This is mutually exclusive with specifying triangulation.

zarray-like

The height values over which the contour is drawn. Color-mapping is controlled by cmap, norm, vmin, and vmax.

levelsint or array-like, optional

Determines the number and positions of the contour lines / regions.

If an int n, use ~matplotlib.ticker.MaxNLocator, which tries to automatically choose no more than n+1 “nice” contour levels between between minimum and maximum numeric values of Z.

If array-like, draw contour lines at the specified levels. The values must be in increasing order.

Returns¶

~matplotlib.tri.TriContourSet

Other Parameters¶

colorscolor string or sequence of colors, optional

The colors of the levels, i.e., the contour lines.

The sequence is cycled for the levels in ascending order. If the sequence is shorter than the number of levels, it is repeated.

As a shortcut, single color strings may be used in place of one-element lists, i.e. 'red' instead of ['red'] to color all levels with the same color. This shortcut does only work for color strings, not for other ways of specifying colors.

By default (value None), the colormap specified by cmap will be used.

alphafloat, default: 1

The alpha blending value, between 0 (transparent) and 1 (opaque).

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

This parameter is ignored if colors is set.

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

This parameter is ignored if colors is set.

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

If vmin or vmax are not given, the default color scaling is based on levels.

This parameter is ignored if colors is set.

origin{None, ‘upper’, ‘lower’, ‘image’}, default: None

Determines the orientation and exact position of z by specifying the position of z[0, 0]. This is only relevant, if X, Y are not given.

None: z[0, 0] is at X=0, Y=0 in the lower left corner.
‘lower’: z[0, 0] is at X=0.5, Y=0.5 in the lower left corner.
‘upper’: z[0, 0] is at X=N+0.5, Y=0.5 in the upper left corner.
‘image’: Use the value from :rc:`image.origin`.

extent(x0, x1, y0, y1), optional

If origin is not None, then extent is interpreted as in .imshow: it gives the outer pixel boundaries. In this case, the position of z[0, 0] is the center of the pixel, not a corner. If origin is None, then (x0, y0) is the position of z[0, 0], and (x1, y1) is the position of z[-1, -1].

This argument is ignored if X and Y are specified in the call to contour.

locatorticker.Locator subclass, optional

The locator is used to determine the contour levels if they are not given explicitly via levels. Defaults to ~.ticker.MaxNLocator.

extend{‘neither’, ‘both’, ‘min’, ‘max’}, default: ‘neither’

Determines the tricontour-coloring of values that are outside the levels range.

If ‘neither’, values outside the levels range are not colored. If ‘min’, ‘max’ or ‘both’, color the values below, above or below and above the levels range.

Values below min(levels) and above max(levels) are mapped to the under/over values of the .Colormap. Note that most colormaps do not have dedicated colors for these by default, so that the over and under values are the edge values of the colormap. You may want to set these values explicitly using .Colormap.set_under and .Colormap.set_over.

Note

An existing .TriContourSet does not get notified if properties of its colormap are changed. Therefore, an explicit call to .ContourSet.changed() is needed after modifying the colormap. The explicit call can be left out, if a colorbar is assigned to the .TriContourSet because it internally calls .ContourSet.changed().

xunits, yunitsregistered units, optional

Override axis units by specifying an instance of a matplotlib.units.ConversionInterface.

antialiasedbool, optional

Enable antialiasing, overriding the defaults. For filled contours, the default is True. For line contours, it is taken from :rc:`lines.antialiased`.

linewidthsfloat or array-like, default: :rc:`contour.linewidth`

The line width of the contour lines.

If a number, all levels will be plotted with this linewidth.

If a sequence, the levels in ascending order will be plotted with the linewidths in the order specified.

If None, this falls back to :rc:`lines.linewidth`.

linestyles{None, ‘solid’, ‘dashed’, ‘dashdot’, ‘dotted’}, optional

If linestyles is None, the default is ‘solid’ unless the lines are monochrome. In that case, negative contours will take their linestyle from :rc:`contour.negative_linestyle` setting.

linestyles can also be an iterable of the above strings specifying a set of linestyles to be used. If this iterable is shorter than the number of contour levels it will be repeated as necessary.

tricontourf(*args, **kwargs)¶

Draw contour regions on an unstructured triangular grid.

Call signatures:

tricontourf(triangulation, z, [levels], ...)
tricontourf(x, y, z, [levels], *, [triangles=triangles], [mask=mask], ...)

The triangular grid can be specified either by passing a .Triangulation object as the first parameter, or by passing the points x, y and optionally the triangles and a mask. See .Triangulation for an explanation of these parameters. If neither of triangulation or triangles are given, the triangulation is calculated on the fly.

It is possible to pass triangles positionally, i.e. tricontourf(x, y, triangles, z, ...). However, this is discouraged. For more clarity, pass triangles via keyword argument.

Parameters¶

triangulation.Triangulation, optional

An already created triangular grid.

x, y, triangles, mask

Parameters defining the triangular grid. See .Triangulation. This is mutually exclusive with specifying triangulation.

zarray-like

The height values over which the contour is drawn. Color-mapping is controlled by cmap, norm, vmin, and vmax.

levelsint or array-like, optional

Determines the number and positions of the contour lines / regions.

If an int n, use ~matplotlib.ticker.MaxNLocator, which tries to automatically choose no more than n+1 “nice” contour levels between between minimum and maximum numeric values of Z.

If array-like, draw contour lines at the specified levels. The values must be in increasing order.

Returns¶

~matplotlib.tri.TriContourSet

Other Parameters¶

colorscolor string or sequence of colors, optional

The colors of the levels, i.e., the contour regions.

The sequence is cycled for the levels in ascending order. If the sequence is shorter than the number of levels, it is repeated.

As a shortcut, single color strings may be used in place of one-element lists, i.e. 'red' instead of ['red'] to color all levels with the same color. This shortcut does only work for color strings, not for other ways of specifying colors.

By default (value None), the colormap specified by cmap will be used.

alphafloat, default: 1

The alpha blending value, between 0 (transparent) and 1 (opaque).

cmapstr or ~matplotlib.colors.Colormap, default: :rc:`image.cmap`

The Colormap instance or registered colormap name used to map scalar data to colors.

This parameter is ignored if colors is set.

normstr or ~matplotlib.colors.Normalize, optional

The normalization method used to scale scalar data to the [0, 1] range before mapping to colors using cmap. By default, a linear scaling is used, mapping the lowest value to 0 and the highest to 1.

If given, this can be one of the following:

An instance of .Normalize or one of its subclasses (see /tutorials/colors/colormapnorms).
A scale name, i.e. one of “linear”, “log”, “symlog”, “logit”, etc. For a list of available scales, call matplotlib.scale.get_scale_names(). In that case, a suitable .Normalize subclass is dynamically generated and instantiated.

This parameter is ignored if colors is set.

vmin, vmaxfloat, optional

When using scalar data and no explicit norm, vmin and vmax define the data range that the colormap covers. By default, the colormap covers the complete value range of the supplied data. It is an error to use vmin/vmax when a norm instance is given (but using a str norm name together with vmin/vmax is acceptable).

If vmin or vmax are not given, the default color scaling is based on levels.

This parameter is ignored if colors is set.

origin{None, ‘upper’, ‘lower’, ‘image’}, default: None

Determines the orientation and exact position of z by specifying the position of z[0, 0]. This is only relevant, if X, Y are not given.

None: z[0, 0] is at X=0, Y=0 in the lower left corner.
‘lower’: z[0, 0] is at X=0.5, Y=0.5 in the lower left corner.
‘upper’: z[0, 0] is at X=N+0.5, Y=0.5 in the upper left corner.
‘image’: Use the value from :rc:`image.origin`.

extent(x0, x1, y0, y1), optional

If origin is not None, then extent is interpreted as in .imshow: it gives the outer pixel boundaries. In this case, the position of z[0, 0] is the center of the pixel, not a corner. If origin is None, then (x0, y0) is the position of z[0, 0], and (x1, y1) is the position of z[-1, -1].

This argument is ignored if X and Y are specified in the call to contour.

locatorticker.Locator subclass, optional

The locator is used to determine the contour levels if they are not given explicitly via levels. Defaults to ~.ticker.MaxNLocator.

extend{‘neither’, ‘both’, ‘min’, ‘max’}, default: ‘neither’

Determines the tricontourf-coloring of values that are outside the levels range.

If ‘neither’, values outside the levels range are not colored. If ‘min’, ‘max’ or ‘both’, color the values below, above or below and above the levels range.

Values below min(levels) and above max(levels) are mapped to the under/over values of the .Colormap. Note that most colormaps do not have dedicated colors for these by default, so that the over and under values are the edge values of the colormap. You may want to set these values explicitly using .Colormap.set_under and .Colormap.set_over.

Note

An existing .TriContourSet does not get notified if properties of its colormap are changed. Therefore, an explicit call to .ContourSet.changed() is needed after modifying the colormap. The explicit call can be left out, if a colorbar is assigned to the .TriContourSet because it internally calls .ContourSet.changed().

xunits, yunitsregistered units, optional

Override axis units by specifying an instance of a matplotlib.units.ConversionInterface.

antialiasedbool, optional

Enable antialiasing, overriding the defaults. For filled contours, the default is True. For line contours, it is taken from :rc:`lines.antialiased`.

hatcheslist[str], optional

A list of cross hatch patterns to use on the filled areas. If None, no hatching will be added to the contour. Hatching is supported in the PostScript, PDF, SVG and Agg backends only.

Notes¶

.tricontourf fills intervals that are closed at the top; that is, for boundaries z1 and z2, the filled region is:

z1 < Z <= z2

except for the lowest interval, which is closed on both sides (i.e. it includes the lowest value).

tripcolor(*args, alpha=1.0, norm=None, cmap=None, vmin=None, vmax=None, shading='flat', facecolors=None, **kwargs)¶

Create a pseudocolor plot of an unstructured triangular grid.

Call signatures:

tripcolor(triangulation, c, *, ...)
tripcolor(x, y, c, *, [triangles=triangles], [mask=mask], ...)

The triangular grid can be specified either by passing a .Triangulation object as the first parameter, or by passing the points x, y and optionally the triangles and a mask. See .Triangulation for an explanation of these parameters.

It is possible to pass the triangles positionally, i.e. tripcolor(x, y, triangles, c, ...). However, this is discouraged. For more clarity, pass triangles via keyword argument.

If neither of triangulation or triangles are given, the triangulation is calculated on the fly. In this case, it does not make sense to provide colors at the triangle faces via c or facecolors because there are multiple possible triangulations for a group of points and you don’t know which triangles will be constructed.

Parameters¶

triangulation.Triangulation: An already created triangular grid.
x, y, triangles, mask: Parameters defining the triangular grid. See .Triangulation. This is mutually exclusive with specifying triangulation.
carray-like: The color values, either for the points or for the triangles. Which one is automatically inferred from the length of c, i.e. does it match the number of points or the number of triangles. If there are the same number of points and triangles in the triangulation it is assumed that color values are defined at points; to force the use of color values at triangles use the keyword argument facecolors=c instead of just c. This parameter is position-only.
facecolorsarray-like, optional: Can be used alternatively to c to specify colors at the triangle faces. This parameter takes precedence over c.
shading{‘flat’, ‘gouraud’}, default: ‘flat’: If ‘flat’ and the color values c are defined at points, the color values used for each triangle are from the mean c of the triangle’s three points. If shading is ‘gouraud’ then color values must be defined at points.
other_parameters: All other parameters are the same as for ~.Axes.pcolor.

triplot(*args, **kwargs)¶

Draw an unstructured triangular grid as lines and/or markers.

Call signatures:

triplot(triangulation, ...)
triplot(x, y, [triangles], *, [mask=mask], ...)

The triangular grid can be specified either by passing a .Triangulation object as the first parameter, or by passing the points x, y and optionally the triangles and a mask. If neither of triangulation or triangles are given, the triangulation is calculated on the fly.

Parameters¶

triangulation.Triangulation: An already created triangular grid.
x, y, triangles, mask: Parameters defining the triangular grid. See .Triangulation. This is mutually exclusive with specifying triangulation.
other_parameters: All other args and kwargs are forwarded to ~.Axes.plot.

Returns¶

lines~matplotlib.lines.Line2D: The drawn triangles edges.
markers~matplotlib.lines.Line2D: The drawn marker nodes.

twinx()¶

Create a twin Axes sharing the xaxis.

Create a new Axes with an invisible x-axis and an independent y-axis positioned opposite to the original one (i.e. at right). The x-axis autoscale setting will be inherited from the original Axes. To ensure that the tick marks of both y-axes align, see ~matplotlib.ticker.LinearLocator.

Returns¶

Axes: The newly created Axes instance

Notes¶

For those who are ‘picking’ artists while using twinx, pick events are only called for the artists in the top-most Axes.

twiny()¶

Create a twin Axes sharing the yaxis.

Create a new Axes with an invisible y-axis and an independent x-axis positioned opposite to the original one (i.e. at top). The y-axis autoscale setting will be inherited from the original Axes. To ensure that the tick marks of both x-axes align, see ~matplotlib.ticker.LinearLocator.

Returns¶

Axes: The newly created Axes instance

Notes¶

For those who are ‘picking’ artists while using twiny, pick events are only called for the artists in the top-most Axes.

update(props)¶: Update this artist’s properties from the dict props.

Parameters¶

props : dict

update_datalim(xys, updatex=True, updatey=True)¶

Extend the ~.Axes.dataLim Bbox to include the given points.

If no data is set currently, the Bbox will ignore its limits and set the bound to be the bounds of the xydata (xys). Otherwise, it will compute the bounds of the union of its current data and the data in xys.

Parameters¶

xys2D array-like: The points to include in the data limits Bbox. This can be either a list of (x, y) tuples or a Nx2 array.
updatex, updateybool, default: True: Whether to update the x/y limits.

update_from(other)¶: Copy properties from other to self.

property use_sticky_edges¶

When autoscaling, whether to obey all Artist.sticky_edges.

Default is True.

Setting this to False ensures that the specified margins will be applied, even if the plot includes an image, for example, which would otherwise force a view limit to coincide with its data limit.

The changing this property does not change the plot until autoscale or autoscale_view is called.

violin(vpstats, positions=None, vert=True, widths=0.5, showmeans=False, showextrema=True, showmedians=False)¶

Drawing function for violin plots.

Draw a violin plot for each column of vpstats. Each filled area extends to represent the entire data range, with optional lines at the mean, the median, the minimum, the maximum, and the quantiles values.

Parameters¶

vpstatslist of dicts

A list of dictionaries containing stats for each violin plot. Required keys are:

coords: A list of scalars containing the coordinates that the violin’s kernel density estimate were evaluated at.
vals: A list of scalars containing the values of the kernel density estimate at each of the coordinates given in coords.
mean: The mean value for this violin’s dataset.
median: The median value for this violin’s dataset.
min: The minimum value for this violin’s dataset.
max: The maximum value for this violin’s dataset.

Optional keys are:

quantiles: A list of scalars containing the quantile values for this violin’s dataset.

positionsarray-like, default: [1, 2, …, n]

The positions of the violins. The ticks and limits are automatically set to match the positions.

vertbool, default: True.

If true, plots the violins vertically. Otherwise, plots the violins horizontally.

widthsarray-like, default: 0.5

Either a scalar or a vector that sets the maximal width of each violin. The default is 0.5, which uses about half of the available horizontal space.

showmeansbool, default: False

If true, will toggle rendering of the means.

showextremabool, default: True

If true, will toggle rendering of the extrema.

showmediansbool, default: False

If true, will toggle rendering of the medians.

Returns¶

dict

A dictionary mapping each component of the violinplot to a list of the corresponding collection instances created. The dictionary has the following keys:

bodies: A list of the ~.collections.PolyCollection instances containing the filled area of each violin.
cmeans: A ~.collections.LineCollection instance that marks the mean values of each of the violin’s distribution.
cmins: A ~.collections.LineCollection instance that marks the bottom of each violin’s distribution.
cmaxes: A ~.collections.LineCollection instance that marks the top of each violin’s distribution.
cbars: A ~.collections.LineCollection instance that marks the centers of each violin’s distribution.
cmedians: A ~.collections.LineCollection instance that marks the median values of each of the violin’s distribution.
cquantiles: A ~.collections.LineCollection instance created to identify the quantiles values of each of the violin’s distribution.

violinplot(dataset, positions=None, vert=True, widths=0.5, showmeans=False, showextrema=True, showmedians=False, quantiles=None, points=100, bw_method=None, *, data=None)¶

Make a violin plot.

Make a violin plot for each column of dataset or each vector in sequence dataset. Each filled area extends to represent the entire data range, with optional lines at the mean, the median, the minimum, the maximum, and user-specified quantiles.

Parameters¶

datasetArray or a sequence of vectors.

The input data.

positionsarray-like, default: [1, 2, …, n]

The positions of the violins. The ticks and limits are automatically set to match the positions.

vertbool, default: True.

If true, creates a vertical violin plot. Otherwise, creates a horizontal violin plot.

widthsarray-like, default: 0.5

Either a scalar or a vector that sets the maximal width of each violin. The default is 0.5, which uses about half of the available horizontal space.

showmeansbool, default: False

If True, will toggle rendering of the means.

showextremabool, default: True

If True, will toggle rendering of the extrema.

showmediansbool, default: False

If True, will toggle rendering of the medians.

quantilesarray-like, default: None

If not None, set a list of floats in interval [0, 1] for each violin, which stands for the quantiles that will be rendered for that violin.

pointsint, default: 100

Defines the number of points to evaluate each of the gaussian kernel density estimations at.

bw_methodstr, scalar or callable, optional

The method used to calculate the estimator bandwidth. This can be ‘scott’, ‘silverman’, a scalar constant or a callable. If a scalar, this will be used directly as kde.factor. If a callable, it should take a matplotlib.mlab.GaussianKDE instance as its only parameter and return a scalar. If None (default), ‘scott’ is used.

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

dataset

Returns¶

dict

A dictionary mapping each component of the violinplot to a list of the corresponding collection instances created. The dictionary has the following keys:

bodies: A list of the ~.collections.PolyCollection instances containing the filled area of each violin.
cmeans: A ~.collections.LineCollection instance that marks the mean values of each of the violin’s distribution.
cmins: A ~.collections.LineCollection instance that marks the bottom of each violin’s distribution.
cmaxes: A ~.collections.LineCollection instance that marks the top of each violin’s distribution.
cbars: A ~.collections.LineCollection instance that marks the centers of each violin’s distribution.
cmedians: A ~.collections.LineCollection instance that marks the median values of each of the violin’s distribution.
cquantiles: A ~.collections.LineCollection instance created to identify the quantile values of each of the violin’s distribution.

vlines(x, ymin, ymax, colors=None, linestyles='solid', label='', *, data=None, **kwargs)¶

Plot vertical lines at each x from ymin to ymax.

Parameters¶

xfloat or array-like: x-indexes where to plot the lines.
ymin, ymaxfloat or array-like: Respective beginning and end of each line. If scalars are provided, all lines will have the same length.

colors : list of colors, default: :rc:`lines.color`

linestyles : {‘solid’, ‘dashed’, ‘dashdot’, ‘dotted’}, optional

label : str, default: ‘’

Returns¶

~matplotlib.collections.LineCollection

Other Parameters¶

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, ymin, ymax, colors

**kwargs : ~matplotlib.collections.LineCollection properties.

Parameters¶

tzstr or datetime.tzinfo, default: :rc:`timezone`: The timezone used to create date labels.

xaxis_inverted()¶

Return whether the xaxis is oriented in the “inverse” direction.

The “normal” direction is increasing to the right for the x-axis and to the top for the y-axis; the “inverse” direction is increasing to the left for the x-axis and to the bottom for the y-axis.

xcorr(x, y, normed=True, detrend=<function detrend_none>, usevlines=True, maxlags=10, *, data=None, **kwargs)¶

Plot the cross correlation between x and y.

The correlation with lag k is defined as \(\sum_n x[n+k] \cdot y^*[n]\), where \(y^*\) is the complex conjugate of \(y\).

Parameters¶

x, y : array-like of length n

detrendcallable, default: .mlab.detrend_none (no detrending)

A detrending function applied to x and y. It must have the signature

detrend(x: np.ndarray) -> np.ndarray

normedbool, default: True

If True, input vectors are normalised to unit length.

usevlinesbool, default: True

Determines the plot style.

If True, vertical lines are plotted from 0 to the xcorr value using .Axes.vlines. Additionally, a horizontal line is plotted at y=0 using .Axes.axhline.

If False, markers are plotted at the xcorr values using .Axes.plot.

maxlagsint, default: 10

Number of lags to show. If None, will return all 2 * len(x) - 1 lags.

Returns¶

lagsarray (length 2*maxlags+1)

The lag vector.

carray (length 2*maxlags+1)

The auto correlation vector.

line.LineCollection or .Line2D

.Artist added to the Axes of the correlation:

.LineCollection if usevlines is True.
.Line2D if usevlines is False.

b.Line2D or None

Horizontal line at 0 if usevlines is True None usevlines is False.

Other Parameters¶

linestyle.Line2D property, optional

The linestyle for plotting the data points. Only used if usevlines is False.

markerstr, default: ‘o’

The marker for plotting the data points. Only used if usevlines is False.

dataindexable object, optional

If given, the following parameters also accept a string s, which is interpreted as data[s] (unless this raises an exception):

x, y

**kwargs

Additional parameters are passed to .Axes.vlines and .Axes.axhline if usevlines is True; otherwise they are passed to .Axes.plot.

Notes¶

The cross correlation is performed with numpy.correlate with mode = "full".

yaxis_date(tz=None)¶

Set up axis ticks and labels to treat data along the yaxis as dates.

Parameters¶

tzstr or datetime.tzinfo, default: :rc:`timezone`: The timezone used to create date labels.

yaxis_inverted()¶

Return whether the yaxis is oriented in the “inverse” direction.

The “normal” direction is increasing to the right for the x-axis and to the top for the y-axis; the “inverse” direction is increasing to the left for the x-axis and to the bottom for the y-axis.
